KNOW YOUR MACHINE
READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR CHAIN SAW.

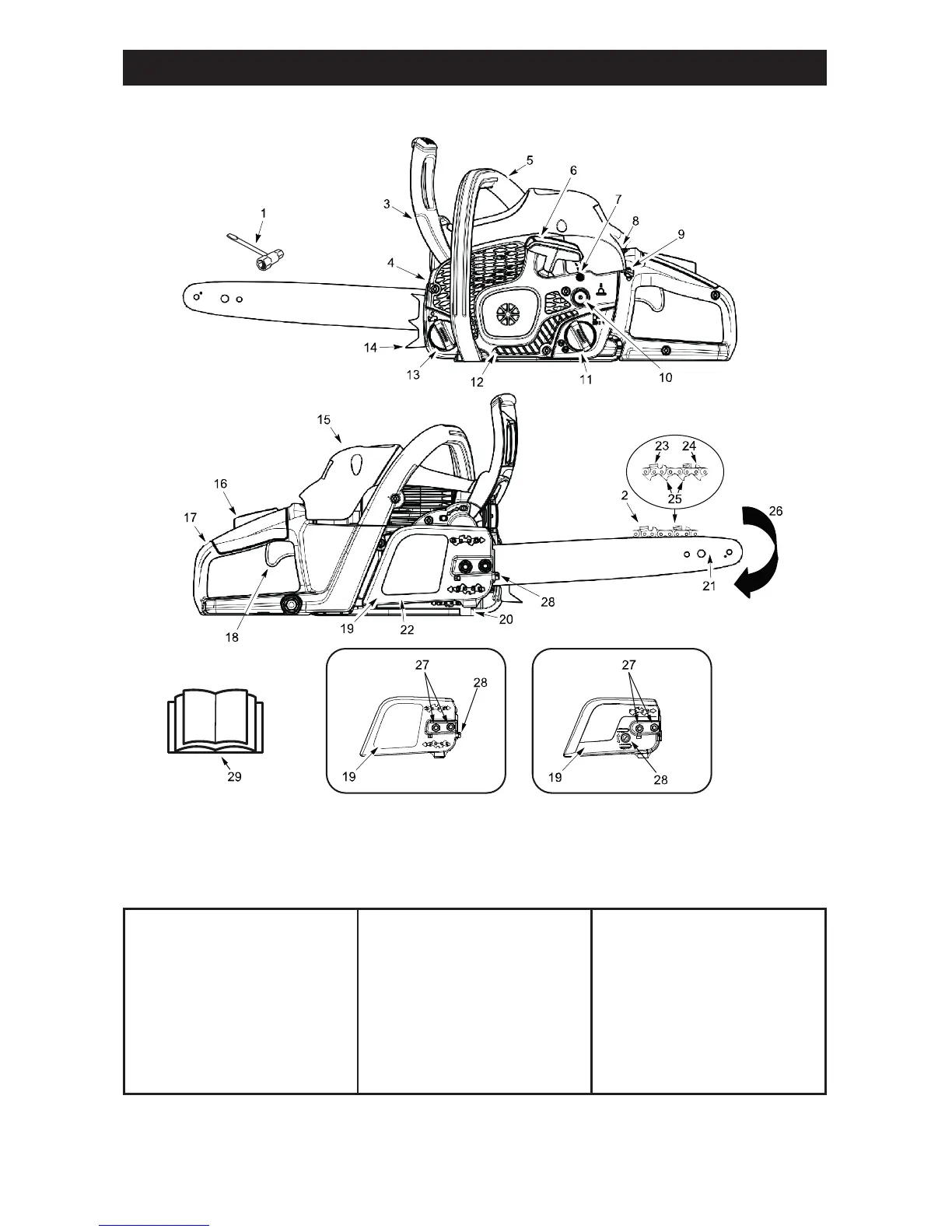

Compare the illustrations with your unit to familiarize yourself with the location of the various controls and
adjustments. Save this manual for future reference.
(*)
(**)
NOTE: The appearance of your product may vary from the item shown.
 &RQ¿JXUDWLRQIRUPRGHOVHTXLSSHGZLWKFKDLQWHQVLRQLQJVFUHZORFDWHGRQIURQW'RHVQRWDSSO\WRDOO
models.
 &RQ¿JXUDWLRQIRUPRGHOVHTXLSSHGZLWKFKDLQWHQVLRQLQJVFUHZORFDWHGRQVLGH'RHVQRWDSSO\WRDOO
models.
1. Combination tool
2. Chain
3. Front hand guard
0XIÀHU
5. Front handle
6. Starter rope
7. Idle speed screw
8. ON/STOP switch
9. Choke/fast idle lever
3ULPHUDLUSXUJHEXOE
)XHOPL[¿OOFDS
12. Starter housing
%DUDQGFKDLQRLO¿OOFDS
14. Bumper spike
15. Cylinder cover
16. Throttle lock-out
17. Rear handle
18. Throttle trigger
19. Clutch cover
20. Chain catcher
21. Guide bar
22. Chain brake
23. Cutters
24. Depth gauge
25. Drive links
26. Chain direction of travel
27. Guide bar retaining nuts
28. Chain tensioning screw
29. Manual
3

McCulloch CS 42S Specifications

General

Chain gauge	1.3 mm
Chain pitch	3/8 \
Chain speed	20 m/s
Product color	Black, Yellow
Oil tank capacity	0.2 L
Fuel tank capacity	0.3 L
Engine displacement	42 cm³
Noise level	115 dB
Power source	Gasoline

Weight and Dimensions

Weight	4900 g
