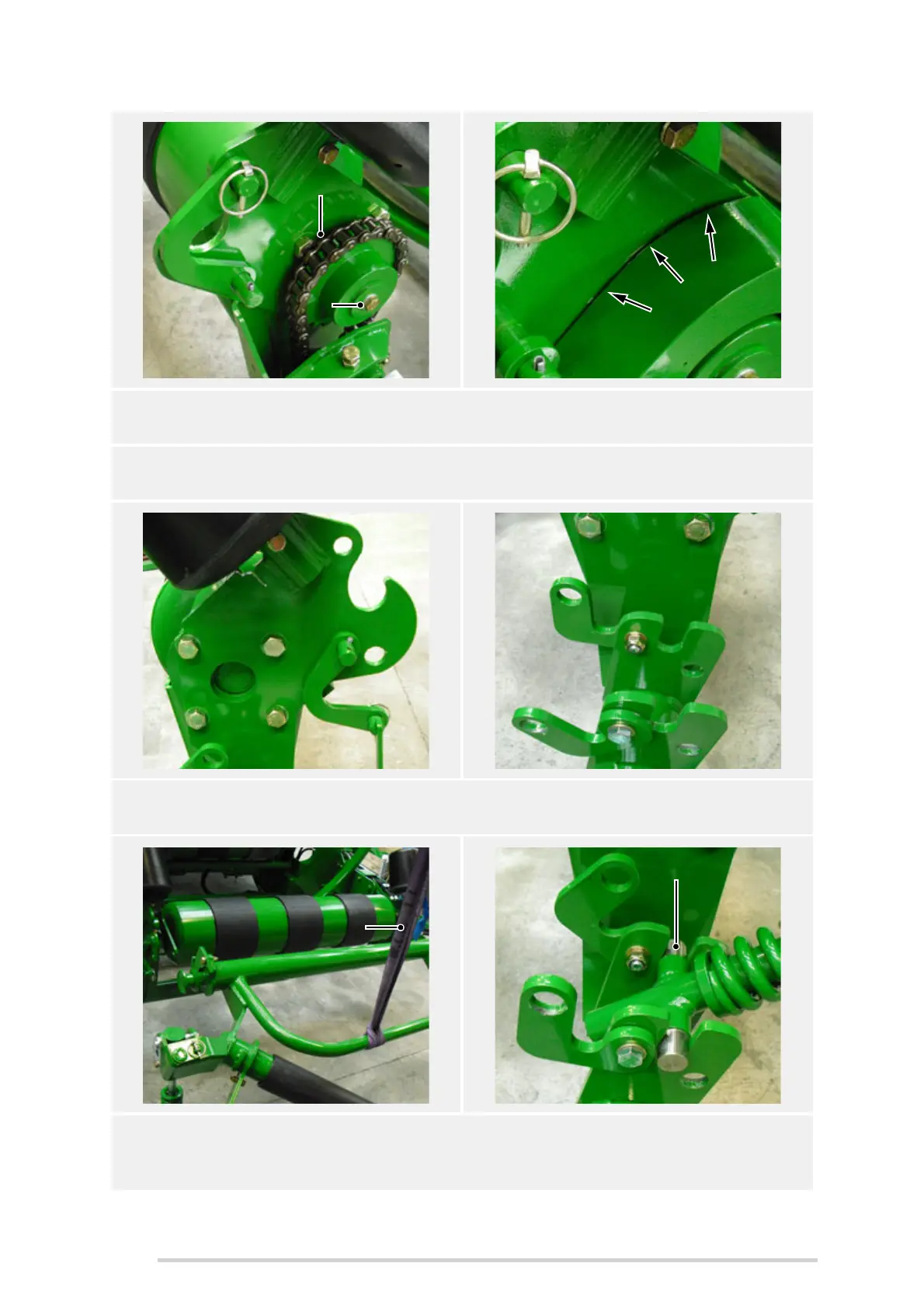

7. To fit the left mounting bracket (ACH01346) to the idle end of the roller, remove
the four M16 nuts and bolts.
8. Fit the bracket, using four M16 x 55 bolts (CFA00349) and nyloc nuts. (H) Ensure
bolts are tightened fully.
9. Fit U-shaped mounting plates (CZH04868), for the suspension unit to brackets
on left side of the cradle, using the bushings and fasteners supplied. (I)
10. Using suitable lifting gear (J), place the side-tip frame assembly down into the
mounting brackets, beginning with the suspension cylinder pivot. (K) Next, lower
both the left and right main pivots onto the cradle brackets. (L & M)
