McHale Fusion Vario Baler & Wrapper
135

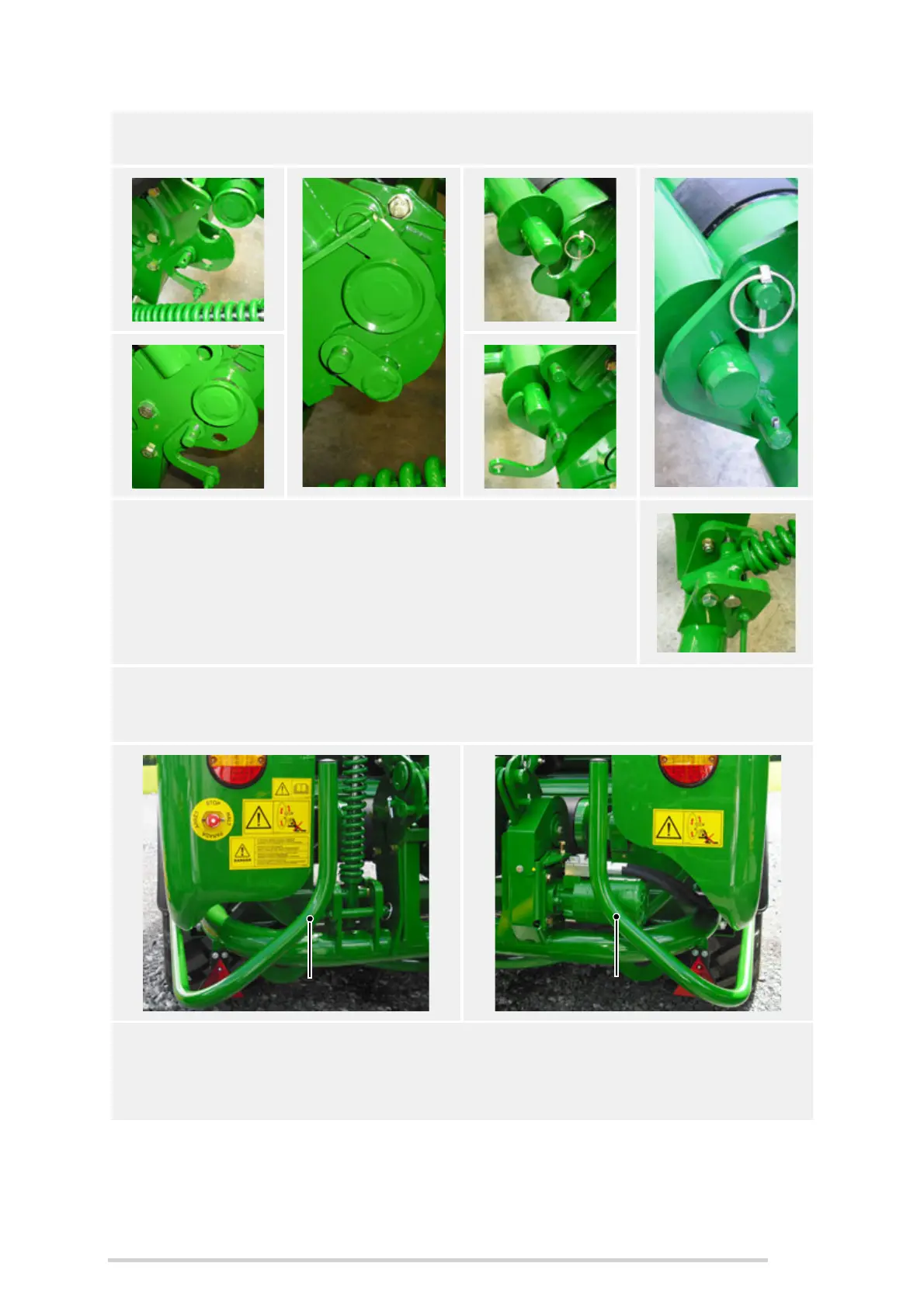

11. Swing both V-shaped plates (CZH03852) over the main side-tip pivots on the left
and right mounting brackets and secure onto the stub shafts using linch pins. (N)
12. Swing both U-shaped plates over the suspension cylinder
pivot and secure using the latch pin (ABD00080) and linch
pin. (O)
13. Panel guards are provided to ensure that the wrapped bale is protected, from
sharp edges, as it exits the machine. (Q & R) Fit panel guards to the left and right
sides of the machines, using three M10 x 35 setscrews.
14. When the side-tip is being transported, the transport pin must be in the transport
position. The transport pin must be removed from its storage position on the
suspension mount (S) and repositioned into the transport position (T) on the rear
cradle. Always use the linch pin to secure the transport pin in either location.
