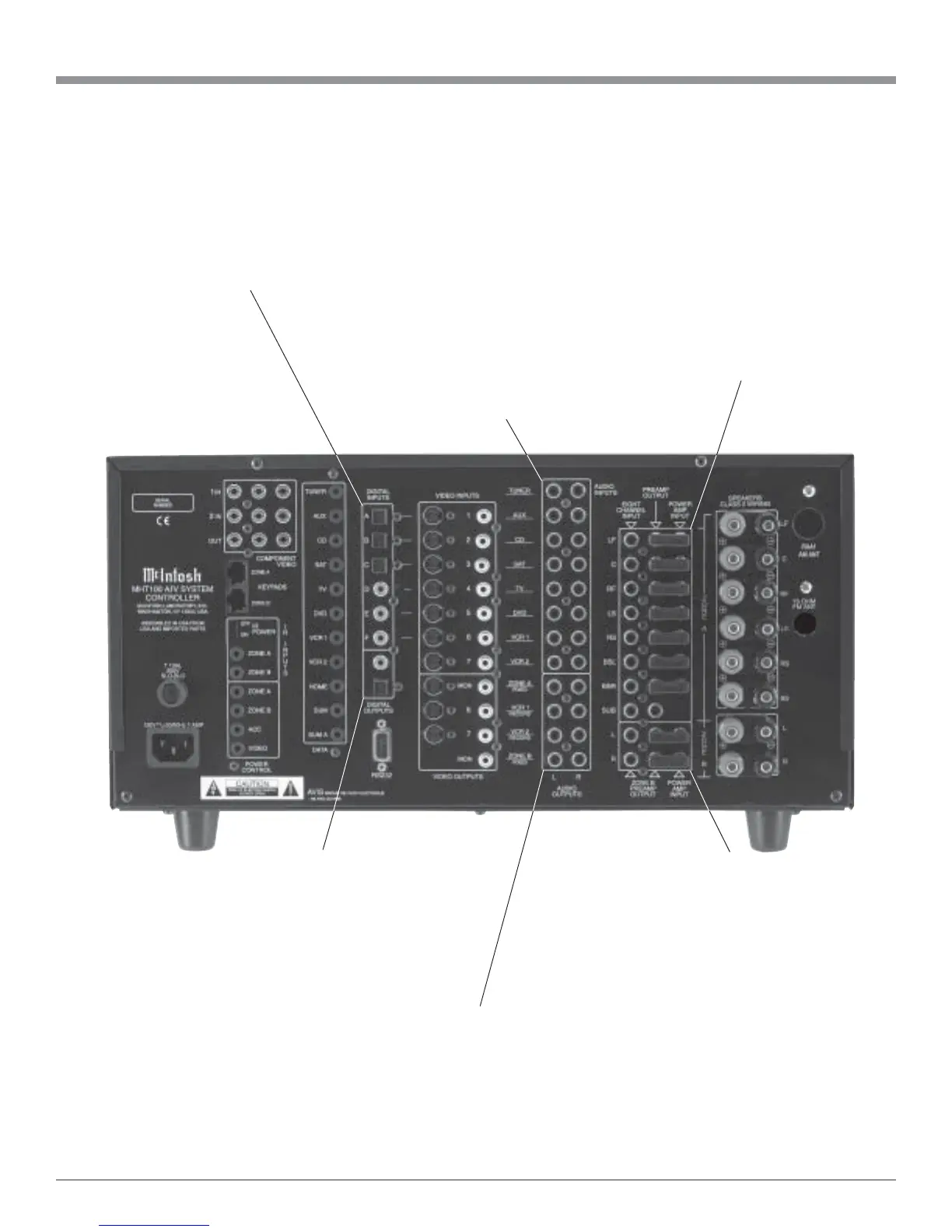

Rear Panel Audio and Digital Connections
The Coaxial DIGITAL INPUTS
AUX, CD and SAT receive a digital
audio signal from the Coaxial Output
of a component. The Optical DIGI-
TAL INPUTS CD1, SAT, and LV re-
ceive a digital audio signal from the
Optical Output of a component
EIGHT CHANNEL INPUTs
accept signals from a component
such as DVD-Audio/SAC Play-
ers or an external processor.
ZONE A PREAMP OUTPUTs
provide all eight audio channel
signals to the MHT100 Power
Amplifier Inputs via the Exter-
nal McIntosh Plug In Jumpers.
ZONE A POWER AMP INPUTs
are for all eight Audio Power
Amplifier Channels
ZONE A FIXED OUTPUTS send a fixed line level,
two channel analog signal as selected by the INPUT
(Zone A Control). The OUTPUTS VCR 1 and 2 sup-
ply analog audio record signals for recorders. The
ZONE B OUTPUTS send a two channel signal from
the analog inputs as selected by the INPUT B Con-
trol
AUDIO INPUTS for analog audio signals
from a TUNER, AUX, CD, SAT, TV,
DVD,VCR1 or VCR2 Components. The
TUNER Left and Right jacks will provide
the Tuner Audio Output Signals when the
TM1 AM/FM Tuner Module is installed in-
side the MHT100
DIGITAL OUTPUTS both
optical and coaxial, provide
a digital audio signal to an
external digital processor
ZONE B PREAMP OUTPUTs
provide Left and Right Channel
Audio Signals to the MHT100
Power Amplifier Inputs via the
External McIntosh Plug-In
Jumpers. ZONE B POWER
AMP INPUTs are for both Au-
dio Power Amplifier Channels
