Your McIntosh MHT100 has been factory configured for
default operating settings that will allow immediate enjoy-
ment of superb video and high fidelity audio without the
need for further adjustments.
If you wish to make changes to the factory default set-
tings (refer to the adjacent page), a System Setup Feature is
provided to customize the operating settings using On
Screen Menus.
Notes:
1. To use the On-Screen Setup Menu feature, the MHT100
MON ZONE A Video Outputs (S-Video or Composite)
must be connected to the video input of a Monitor/TV.
2. There is no On-Screen Information present at the
MHT100 Component Video Output.
3. Any adjustments made to the SPEAKER settings must be
performed in the correct sequence, since they are
interactive.
4. Follow the sequence listed in the MAIN SYSTEM
SETUP MENU for these adjustments.
1. Press the POWER switch to ON, the Red LED above
the STANDBY/ON Push-button lights to indicate the
MHT100 is in Standby mode. To Turn On the MHT100
press the STANDBY/ON Push-button. The title
MHT100 will appear on the Front Panel Alphanumeric
Display for approximately two seconds after Turn-On,
with the Loudspeakers muted. Refer to figures 7, 8 &
9.
Note: For normal operation, turn the MHT100 On and Off
with the Standby/On Push-button. You may also
Switch On the MHT100 by simply pressing the Power
Push-button on the Remote Control. If the A/V System
Controller is not going to be used for an extended
period of time, turn Off all AC Power with the Power
Switch.
2. Press and hold the MHT100 Front Panel SETUP Push-
button approximately
three seconds to enter the
Setup Mode. The word
SETUP will appear on
the Front Panel Alphanu-
meric Display and the
MAIN SYSTEM SETUP
Menu will appear on the
Monitor/TV Screen. Re-
fer to figures 10, 11 &
12.
3. Access the desired Setup
Menu by pressing the
Up or Down direc-
tional push-buttons fol-
lowed by the SELECT
Push-button on the sup-
plied Remote Control.
The desired Setup Menu
will then appear on the
Monitor/TV Screen. Use
the Up or Down di-
rectional push-buttons to
select the menu item and
press the Left or
Right directional push-
buttons to change the
current setting. Refer to
figure 9.
Note: The LEVEL Up
and Down Push-
buttons are used for
Speaker Level
Adjustments.
4. After all adjust-
ments are complete,
select EXIT by
pressing the Up
or Down direc-
tional push-buttons
on the remote con-
trol. Return to the
MAIN SYSTEM
How to Operate the Setup Mode

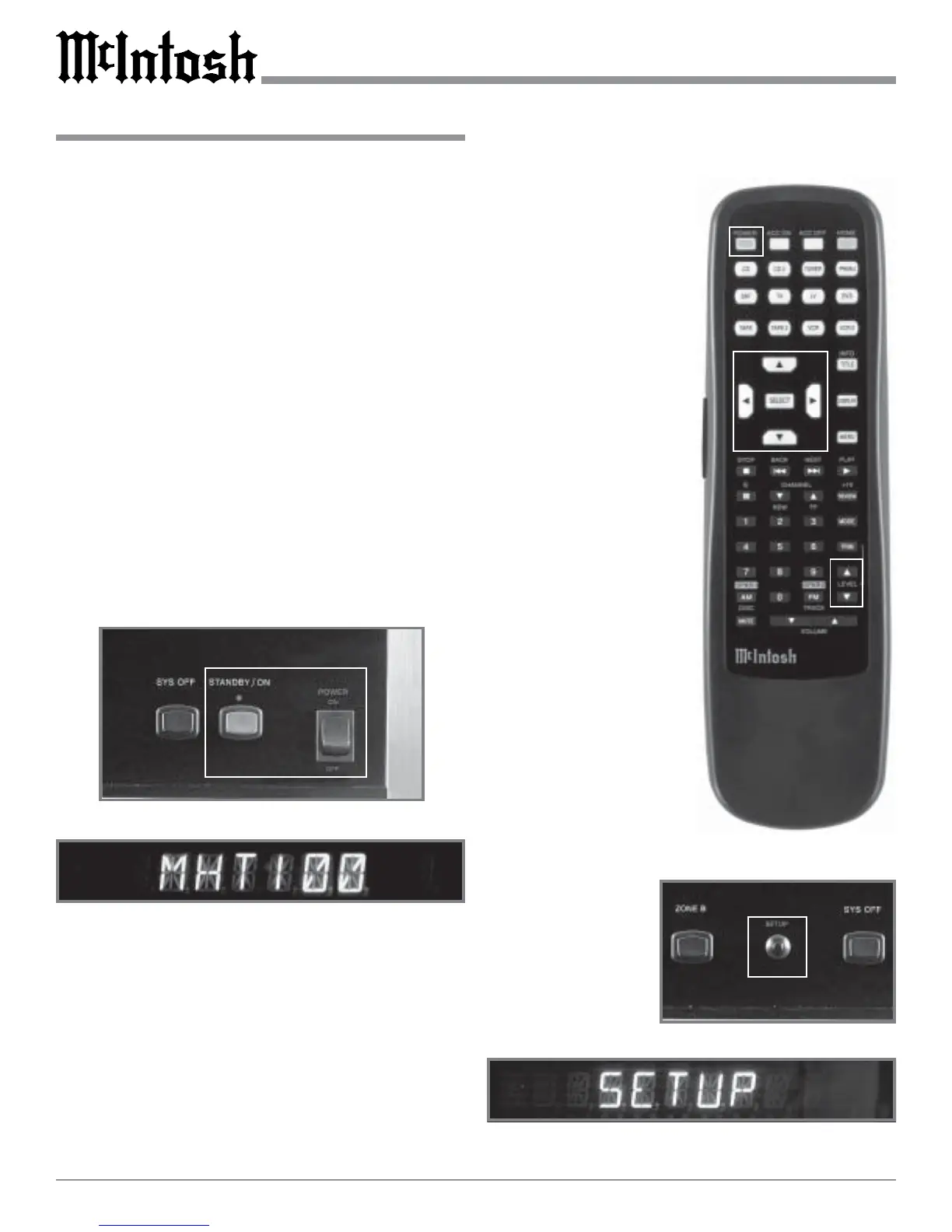

Figure 7
Figure 10
Figure 9
Figure 8
Figure 11
To Next Page
