13
Home Controller
McIntosh MVP841 DVD Player

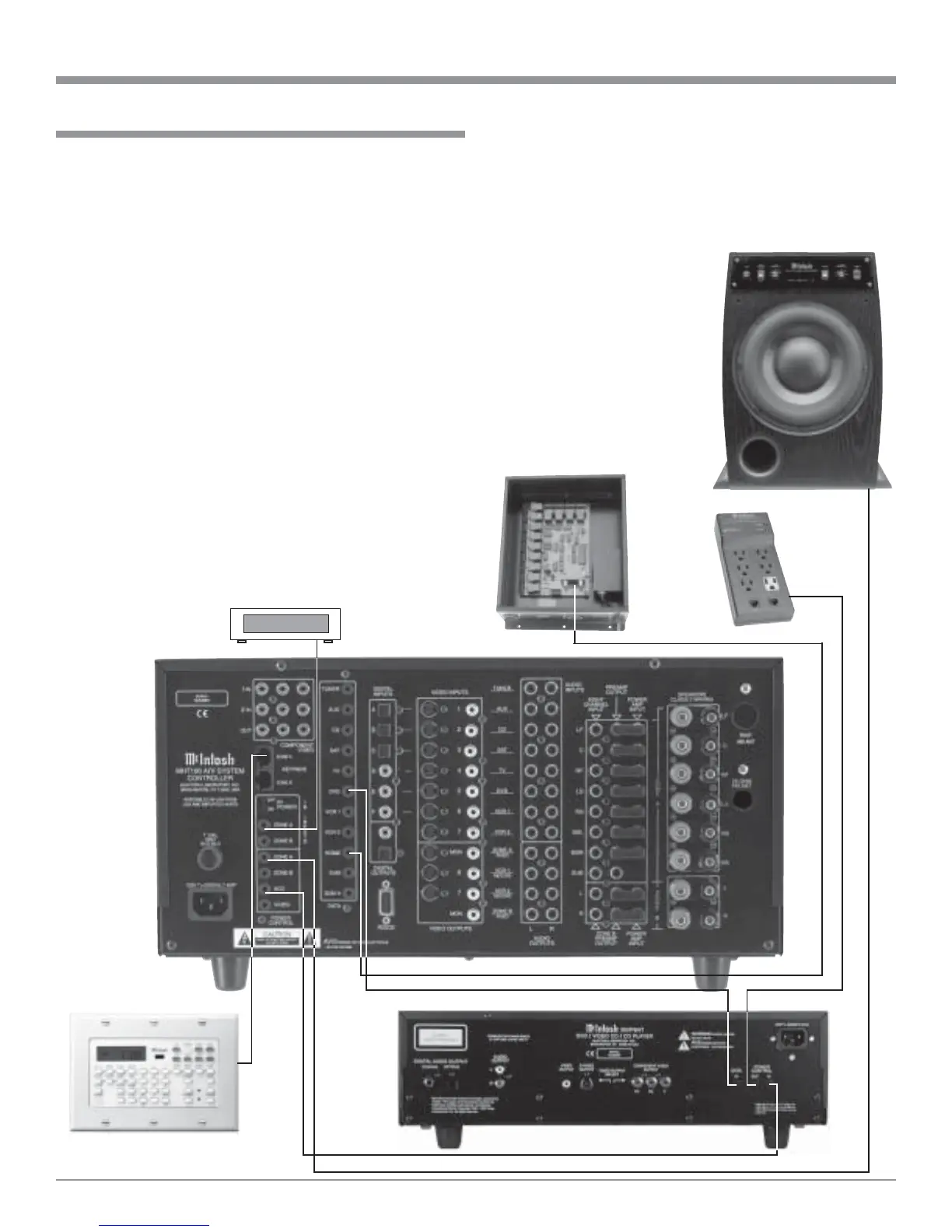

How to Connect for Data and Power Control
IR Sensor
How to Connect for Data and Power Control
McIntosh WK-4 Keypad
1. Connect a Data Control Cable from the MHT100 DVD
Data Port to the McIntosh MVP841 DVD Player Data
In Jack.
Note: By adding a McIntosh Remote Control Translator to
the MHT100, non McIntosh Source Devices such as a
Satellite Receiver can be remotely controlled using a
McIntosh Remote Control and Keypads.
2. Connect a Data Control Cable from the MHT100
Home Data Port to the Home Controller Data In Jack.
3. Connect a 4 conductor shielded cable from the
MHT100 Zone A Keypad Socket to a McIntosh WK-4
Keypad.
4. Connect a Power Control Cable from the MHT100
POWER CONTROL ACC Jack to the McIntosh
MVP841 DVD Player Power Control In Jack.
5. Connect a Power Control Cable from the McIntosh
MVP841 DVD Player Power Control Out Jack to the
McIntosh PC-4 Power Control AC Outlet Strip Power
Control Jack.
6. Connect a Power Control Cable from the MHT100
POWER CONTROL ZONE A jack to the McIntosh
Powered Subwoofer Power Control In Jack.
7. Optionally, connect a Data Control Cable from the
MHT100 IR INPUTS A to an external IR Sensor.
McIntosh
Power
Control
McIntosh Powered Subwoofer
To Next Page
