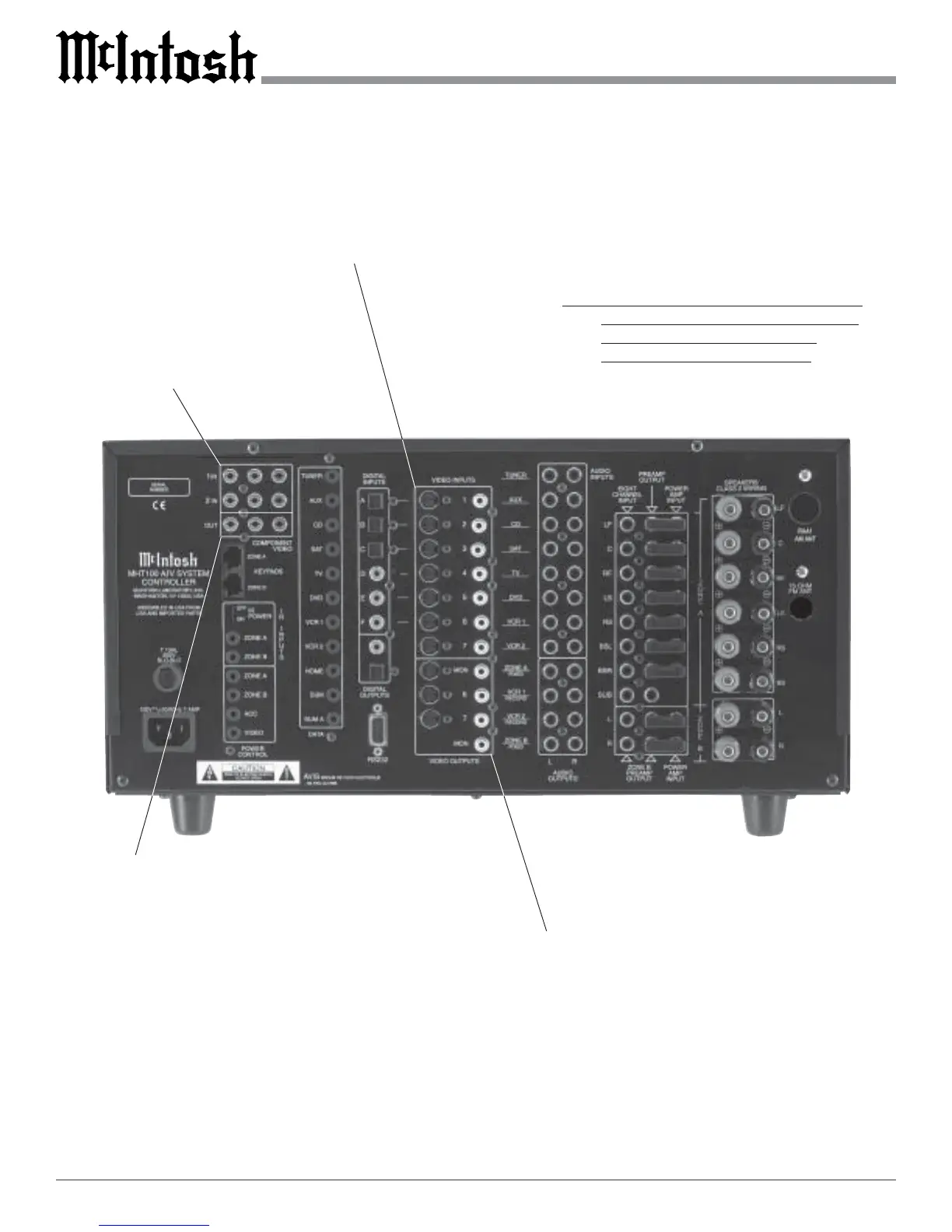

Rear Panel Video Connections
VIDEO INPUTS are for both S-Video
and Composite Video Signals from a
AUX, CD, SAT, TV, DVD,VCR1 or
VCR2 components
COMPONENT INPUTS receive
Component Video (Y, P
R
and P
B
)
Signals from two Component
Video Sources
COMPONENT OUTPUTS send
Component Video (Y, P
R
and P
B
)
Signals to the ZONE A Video
Monitor
VIDEO OUTPUTS are for supply
S-Video and Composite Video Sig-
nals for recorders VCR 1 and 2.
There are also MONitor Zone A S-
Video and Composite Video Signal
Outputs for a monitor/TV located in
Zone A. The MONitor Zone B has a
Composite Video Signal Output for
monitor/TV located in Zone B
Note: If the MHT100 A/V System Controller has
the TM1 AM/FM Tuner Module installed,
proceed to page 52 for Rear Panel
Antenna Connection Information.
