18
Monitor/TV

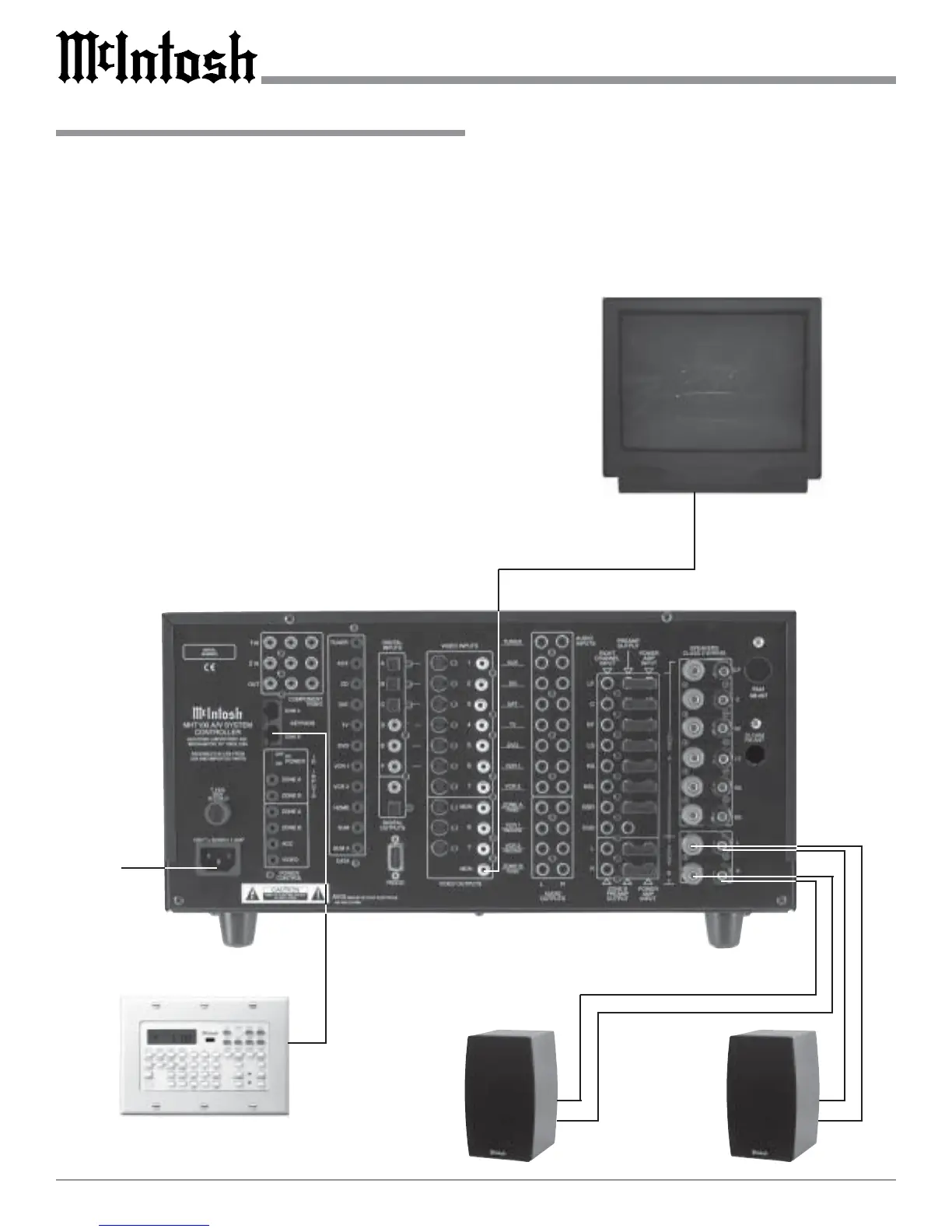

How to Connect for Zone B
How to Connect for Zone B
The MHT100 is a Dual Zone A/V System Controller. For
Zone B activation a McIntosh Sensor or Keypad together
with a pair of Loudspeakers are required. To provide the
best video quality for Zone B, it is important to use a high
quality cable and keep the cable length as short as possible.
1. Connect a cable from the MHT100 KEYPADS ZONE
B to the McIntosh Keypad.
2. Connect a cable from the MHT100 MON ZONE B
Jack to the Monitor/TV Video Input.
3. Connect the Loudspeaker Hookup Cables from the
MHT100 SPEAKERS Terminals to the Loudspeakers,
being careful to observe the correct polarities and
channel designation. Refer to page 14 for information
on repairing Loudspeaker Hookup Cables.
WARNING: Loudspeaker terminals are hazardous live
and present a risk of electric shock. For
additional instruction on making
Loudspeaker Connections contact your
McIntosh Dealer or McIntosh Technical
Support.
4. Connect the MHT100 to a live AC Outlet.
McIntosh WK-4 Keypad
Left
Loudspeaker
Right
Loudspeaker
To AC
Outlet
To Next Page
