Selector Switch
Machine can be operated from the lower
or upper controls. Activation of one or the
other is achieved with this switch.
With the upper controls selected, from
the lower control panel, if the platform up/
lower function is operated there should
be NO movement. Similarly, with the
lower controls selected, from the upper
controls if any machine function is oper-
ated, there should be NO movement.
Master Disconnect Switch
The switch is used primarily to shut off
control circuit. The battery disconnect is
provided to facilitate servicing and also to
prevent unauthorized use of the vehicle
by using a padlock (to provide security).
Movement Alarm
This alarm is activated as soon as the
upper control box joystick (controller)
lever is moved off the center “Neutral”
position.

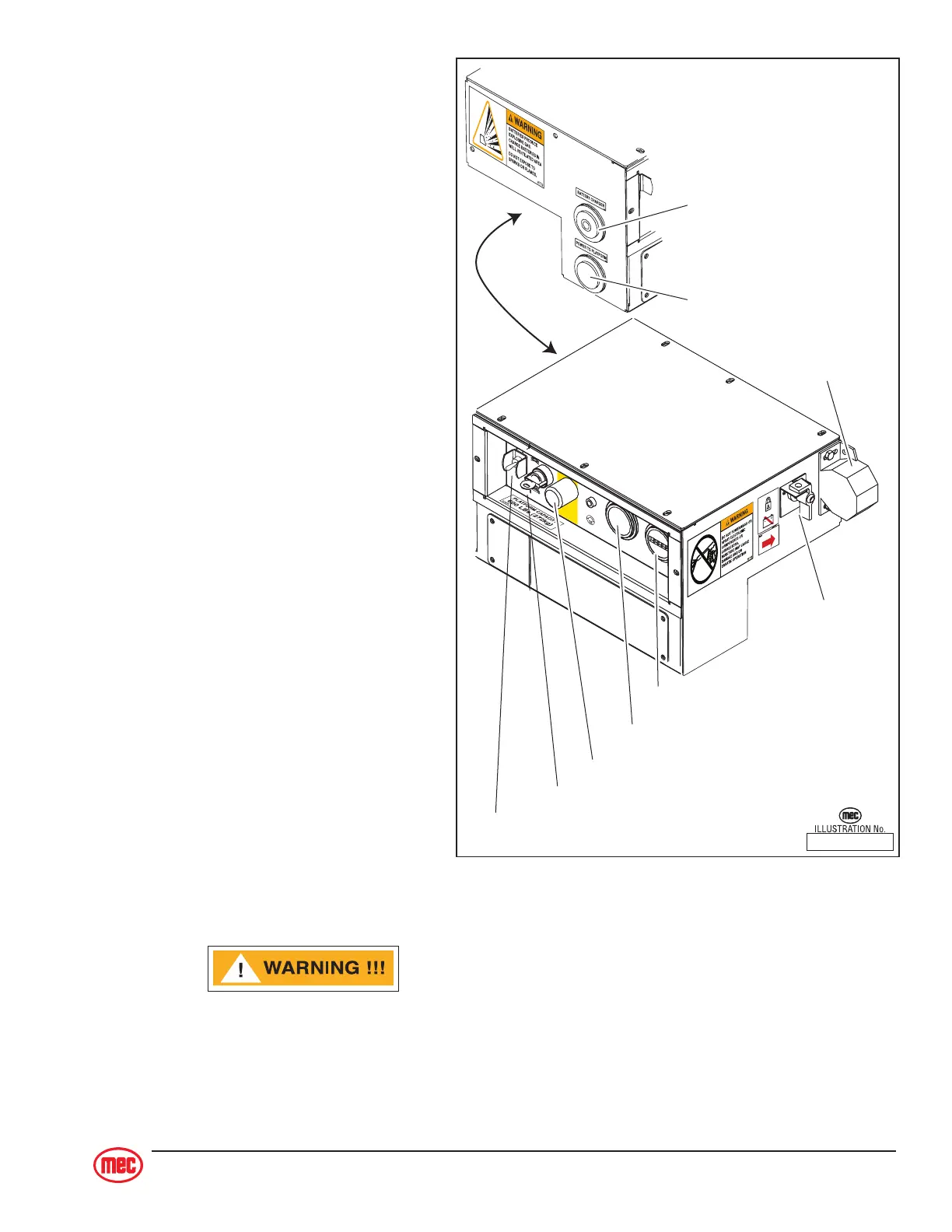

ART_2177
BATTERY
DISCONNECT
SWITCH
HOUR METER
ALARM
EMERGENCY STOP
SELECTOR SWITCH
BATTERY INDICATOR
LIFT/LOWER SWITCH
BATTERY CHARGER
CONNECTION
POWER TO PLATFORM
CONNECTION
THE MOVEMENT ALARM IS PROVIDED FOR YOUR PROTECTION,
AND PROTECTION OF PERSONS WORKING IN THE IMMEDIATE
AREA. DISABLING THIS IMPORTANT SAFETY DEVICE MAY RESULT
IN SERIOUS INJURY OR DEATH.
