October 2008 "2033ES / 2633ES" Service & Parts Manual - ANSI Specifications
Page 4-12
ART_2234
1
15

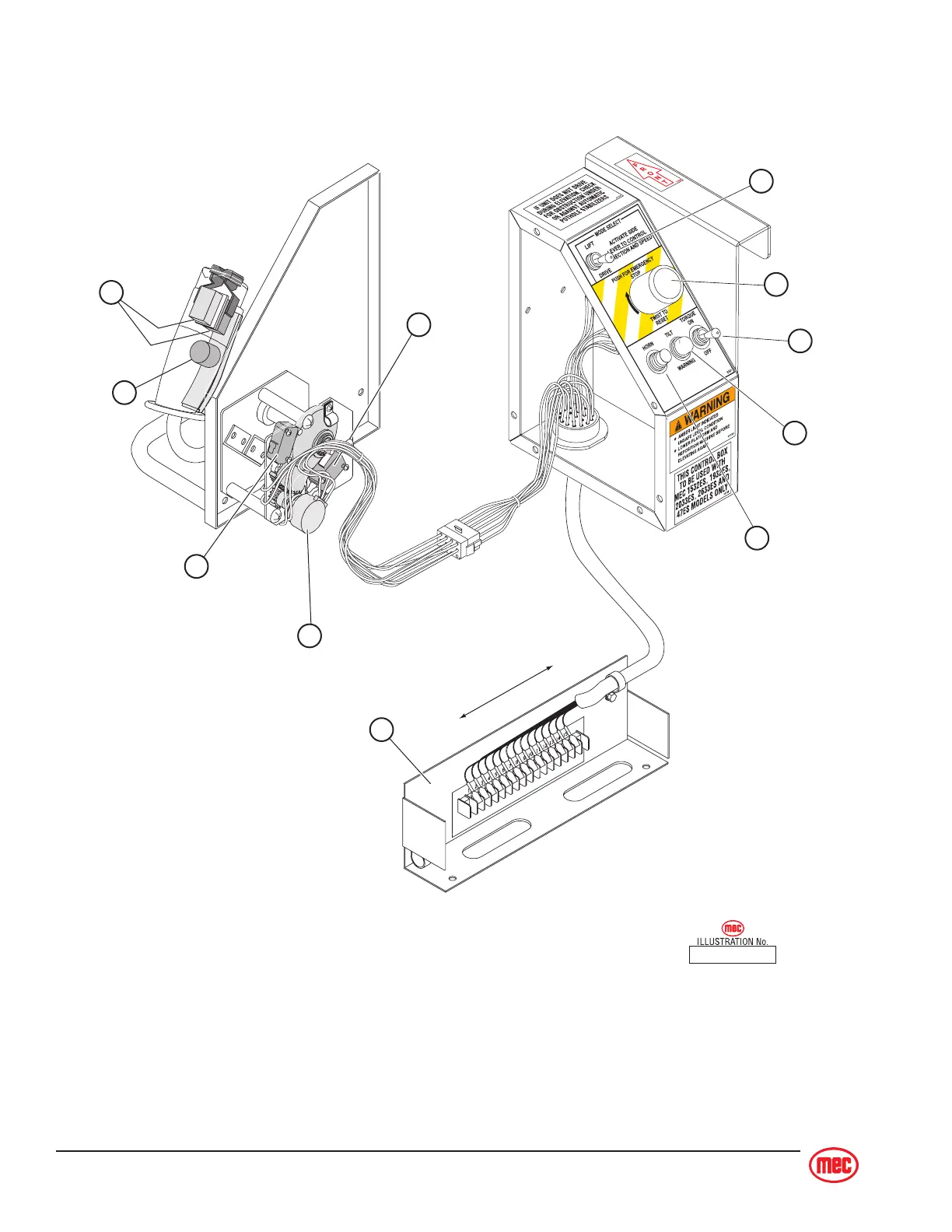

1] Lift/Drive Selector Switch
2] Emergency Stop Switch
3] Torque Switch
4] Tilt Warning Light
5] Horn Button (option)
6] Steering Micro-Switches
7] Drive Enable Switch
8] Reverse/Down Rocker Switch
9] Forward/Up Rocker Switch
10] Potentiometer
11] Terminal Strip
3
6
8
9
10
11
7
2
4
1
5
