Mec 6092RT - Lower Control Panel Layout

Page 12 93808 – October 2014

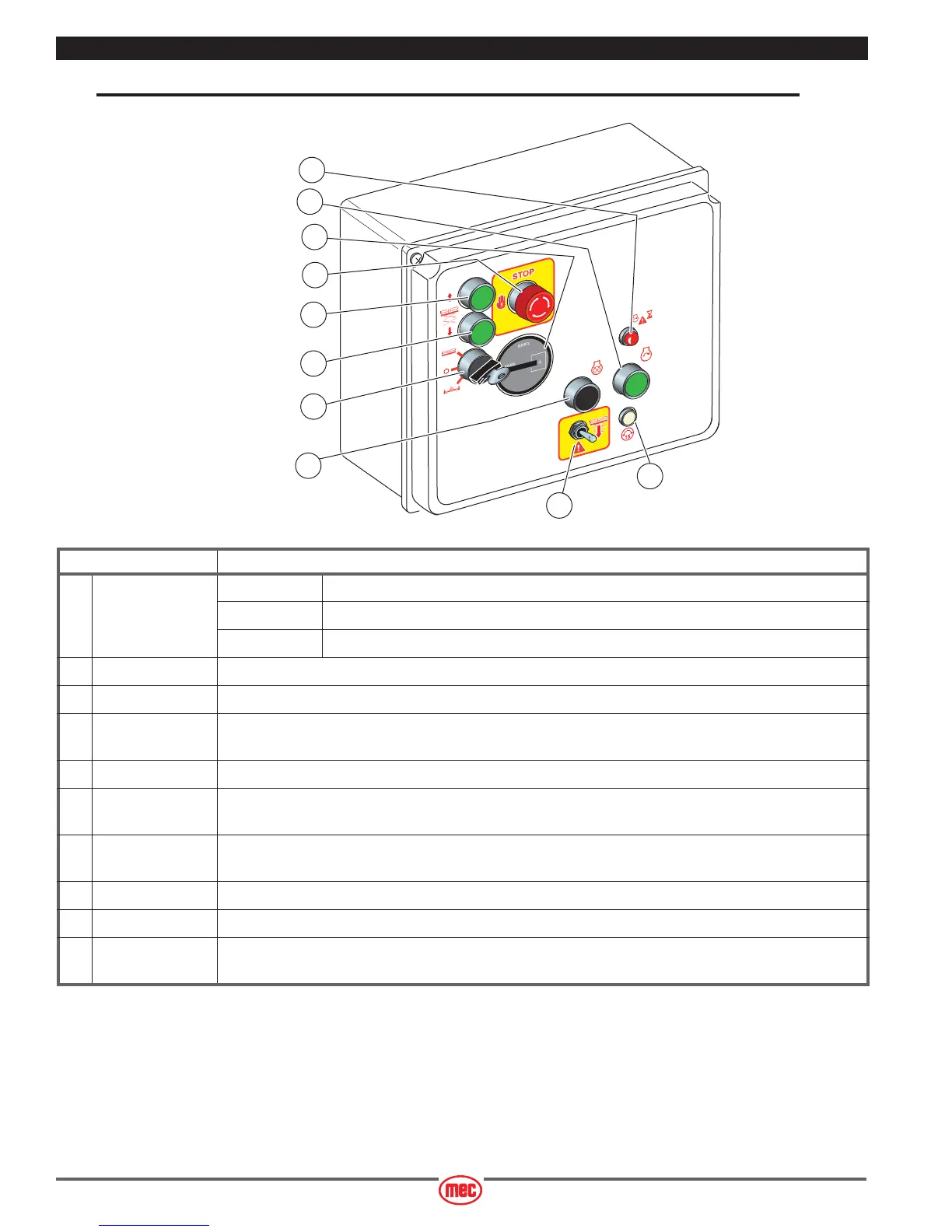

6092RT Component Locations
Lower Controls
15
3
7
6
10
2
4
5
9
8
1
Emergency Stop
Circuit Breaker
Preheat
Platform / Base
Lower (Green)
Raise (Green)
Start (Green)
Starter Delay (Red)
Emergency Down
Hour Meter
CONTROL DESCRIPTION
1 Selector Switch PLATFORM Select to operate from the platform control panel.
BASE Select to operate from the base control panel.
OFF Select to stop operation from either control panel.
2 LOWER Button Press and hold to lower the platform. Release to stop lowering.
3 RAISE Button Press and hold to elevate the platform. Release to stop elevation.
4Emergency Stop
Switch
Press to stop all machine functions.
Turn clockwise to reset.
5 Hour Meter Indicates total elapsed time of machine operation.
6Engine Start
Button
After setting the Selector Switch (#1) to BASE, press this button to start the engine.
7Start Delay
Indicator Light
After 20 seconds of continuous cranking, the engine starter circuit cuts off momentarily to prevent
damage to the starter. This light illuminates when the starter circuit is cut off. Resets after 25 seconds
8 Preheat (Diesel) Press this button while starting a cold engine
9 Circuit Breaker Trips when there is excessive electrical load. Push to reset.
10 Emergency Down
Switch
Activate this switch to run the Emergency Down auxiliary hydraulic pump.
