Mec 6092RT - Upper Control Panel Layout

93808 – October 2014 Page 11

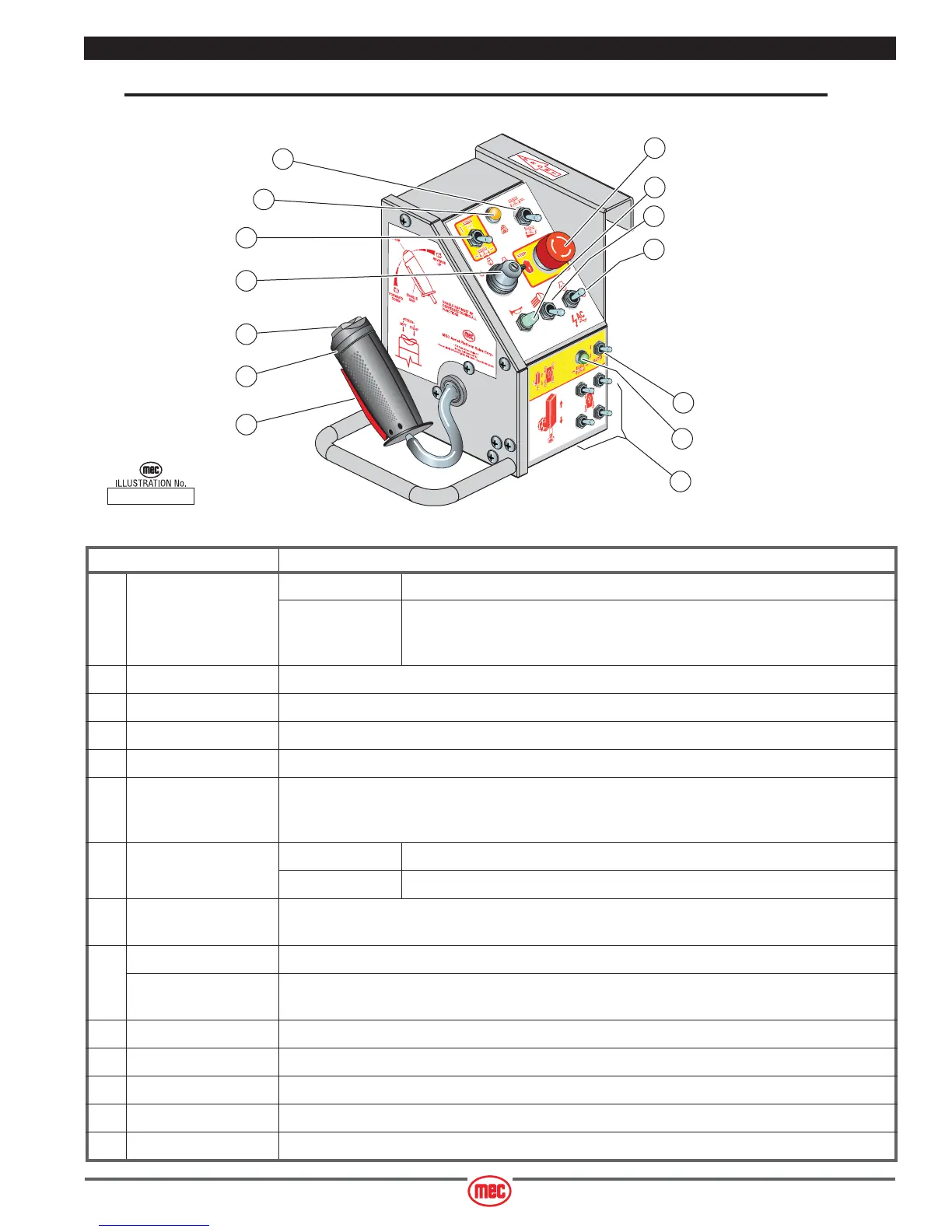

6092RT Component Locations
Upper Controls
ART_4698
91
84
4
Emergency Stop
Joystick
Enable Bar
Lift / Drive
Steering
Speed / Torque
Automatic Leveling
Horn (Optional)
Manual Level Switches
8
11
Start Switch
5
12
Drive Enabled Indicator
13
1
2
3
4
Overload Indicator
6
7
14
Work Lights (Optional)
10
Up -- Preheat
Down -- Generator (Optional)
9
CONTROL DESCRIPTION
1 Joystick DRIVE Controls Forward and Reverse travel at stepped speeds.
LIFT Move toward operator to elevate platform. Lift speed increases proportional to
the Joystick movement
Move away from operator to lower platform. Speed is fixed.
2 Enable Bar Squeeze to enable DRIVE, STEER, and LIFT from Joystick.
3 Steering Switch Using thumb, press and hold the rocker switch to steer Left or Right.
4 Mode Selector Select LIFT or DRIVE function for Joystick.
5 Start / Run Switch Turn power ON or OFF at the platform. Does not affect lower controls.
6 Overload Indicator Platform overloaded when light is ON.
An audible alarm will sound and all machine functions will stop.
Remove weight from the platform to restore function and continue.
7 Speed / Torque Switch HIGH TORQUE Slow speed. Provides maximum torque for rough terrain.
HIGH SPEED Provides high speed when platform height is below 10 feet (3 m).
8 Emergency Stop Switch PUSH to stop all machine functions.
TURN CLOCKWISE to reset.
9 Up -- Preheat Operate when starting in cold conditions.
Down -- Generator
Switch (option)
Push the switch DOWN to engage optional AC generator.
Drive and Lift functions are disabled while the generator is on.
10 Work Lights (option) Move switch Up to turn on work lights.
11 Horn Press to sound warning horn.
12 Automatic Level Switch Move switch Up and hold until automatic leveling is complete.
13 Drive Enable Indicator Drive function is enabled when the light is ON.
14 Manual Level Switches Push these switches UP or DOWN to adjust individual outriggers.
