“SE Series” Service and Parts ManualMarch 2017

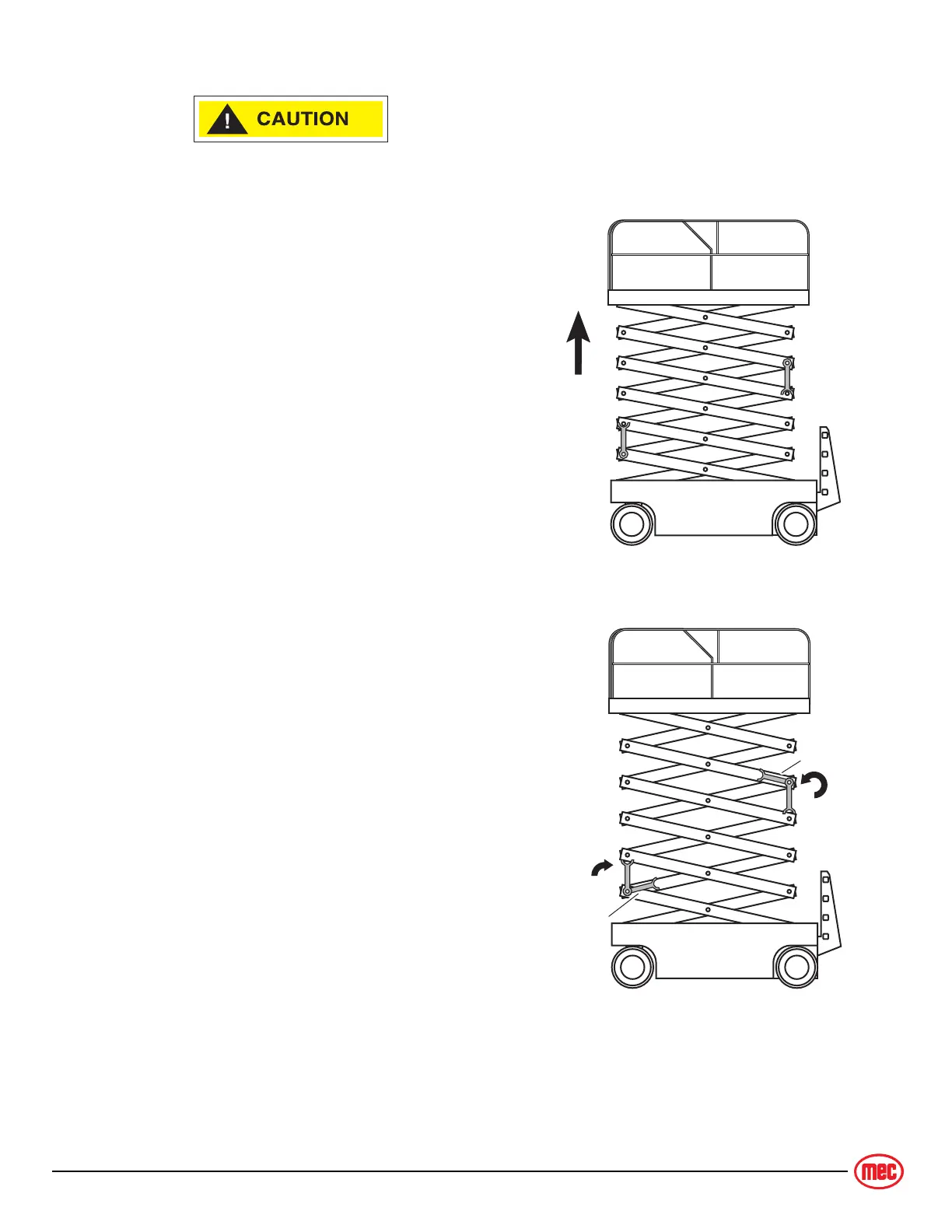

S TOWING T HE M AINTENANCE L OCKS
BOTH Maintenance Locks must be stowed
before lowering the platform
DO NOT attempt to lower the platform with
one maintenance lock in place.
1. Raise the platform approximately 1 ft / .3 m up
so that the Maintenance Locks clear the
scissor link cross tubes.
2. Slide the ladder-end Maintenance Lock to the
side and rotate it stowed position.
Use the machine entry ladder to reach the
rear Maintenance Lock.
3. Slide the front-end Maintenance Lock to the
side and rotate it stowed position.
4. Lower the platform.
Keep clear of the scissor linkage when lowering.
If a Maintenance Lock requires adjustment to
stow it correctly, stop the lowering function.
Adjust the maintenance lock while stationary,
then return to the lowering function.
ART_5146
Maintenance Locks
ART_5147
Maintenance Locks
Stowed
Stowed
