“SE Series” Service and Parts ManualMarch 2017
Page 1-10
FREQUENT INSPECTION CHECKLIST
M ODULE L ATCH C OMPONENTS
Maintaining the module tray latch components in good condition is essential to good
performance and service life. Failure to detect worn out latch components may result in
module trays opening unexpectedly, creating an unsafe operating condition.
1. Inspect each module tray rotary latch and related components for wear and proper
adjustment. Tighten any loose fasteners.
2. Lubricate each module tray rotary latch. Using light oil, apply a few drops to each of
the springs and to the sides of the rotary latch mechanism.
L IMIT S WITCHES
Maintaining the limit switches is
essential to safe operation and good
machine performance. Operating the
machine with a faulty limit switch could
result in reduced machine performance
and a potentially unsafe operating
condition.
Perform these procedures with the
machine on a firm, level surface that is
free of obstructions.
D OWN L IMIT S WITCH
The Down Limit Switch alerts the
system when the platform is elevated
above 6.5 feet (2 m).
1. Remove the platform controls from
the platform.
2. Set the Maintenance Locks (see the
Introduction portion of this manual).
DEATH OR SERIOUS INJURY
HAZARD! NEVER PERFORM WORK OR INSPECTION ON THE MACHINE
WITH THE PLATFORM ELEVATED WITHOUT FIRST BLOCKING THE
SCISSOR ASSEMBLY WITH THE MAINTENANCE LOCK.
3. Turn the key switch to the off position.
4. Tag and disconnect the platform control box at the platform.
5. Follow the platform control cable down the scissor stack to the underside of the chas-
sis deck. Tag and disconnect the platform cable from the ECU cable at the 6-pin
connector under the chassis deck.
6. Securely install the platform control box harness plug into the 6-pin connector of the
ECU cable.
7. Remove the Switch Assembly Cover.
8. Open the Down Limit Switch cover, tag and disconnect the wires of the Down Limit
Switch wire harness.

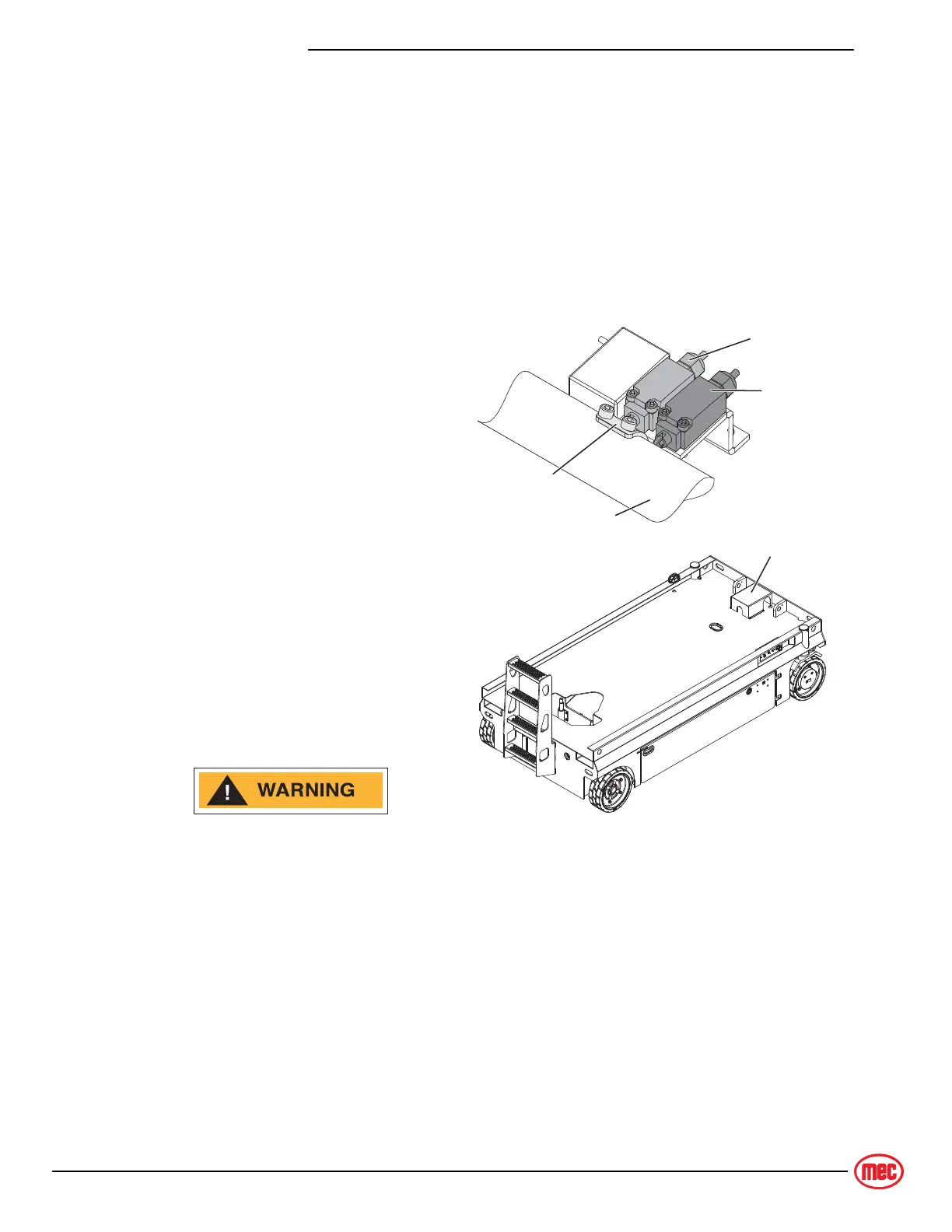

ART_5121
Up Limit
Switch
Down Limit
Switch
Scissor Tube
Switch
Actuator
Switch
Assembly
Cover
