“SE Series” Service and Parts Manual March 2017
Page 1-13
ANNUAL INSPECTION CHECKLIST
3. Press the drive function select button. Attempt to steer or drive the machine.
• Result: The diagnostic display shows code 18, an alarm sounds, and the machine will not
steer or drive. The machine is functioning properly.
• Result: The diagnostic display does not show code 18, the alarm does not sound and the steer
and drive functions operate. Adjust or replace the down limit switch.
4. Lower the platform to the stowed position and remove the block under the right pot-
hole guard.
5. Repeat this procedure beginning with step 5 for the left pothole guard.
6. Lower the platform to the stowed position, remove the block under the left pothole
guard. Turn off the machine.
A
NNUAL
I
NSPECTION
C
HECKLIST
THE CHECKLIST MUST BE USED AT 12-MONTH INTERVALS OR EVERY
600 HOURS OF MACHINE USE, WHICHEVER OCCURS FIRST. FAILURE TO
DO SO COULD RESULT IN DEATH OR SERIOUS INJURY.
Annual Maintenance Inspections should be conducted by qualified service technicians
only. Photocopy the Annual Inspection Checklist page from the Operator’s Manual to
keep record of this inspection. Keep inspections records up to date. Record and report
all discrepancies to your supervisor.
Perform all checks listed on Pre-Start Inspection and the Frequent Inspection, then
check all items listed on the Annual Inspection Report. See specific instructions below.
S
CISSOR
S
LIDE
B
LOCKS
Maintaining the condition of the scissor arm slide blocks is essential to safe machine
operation. Continued use of worn out wear pads may result in component damage and
unsafe operating conditions.
Perform this procedure with the platform in the stowed position.

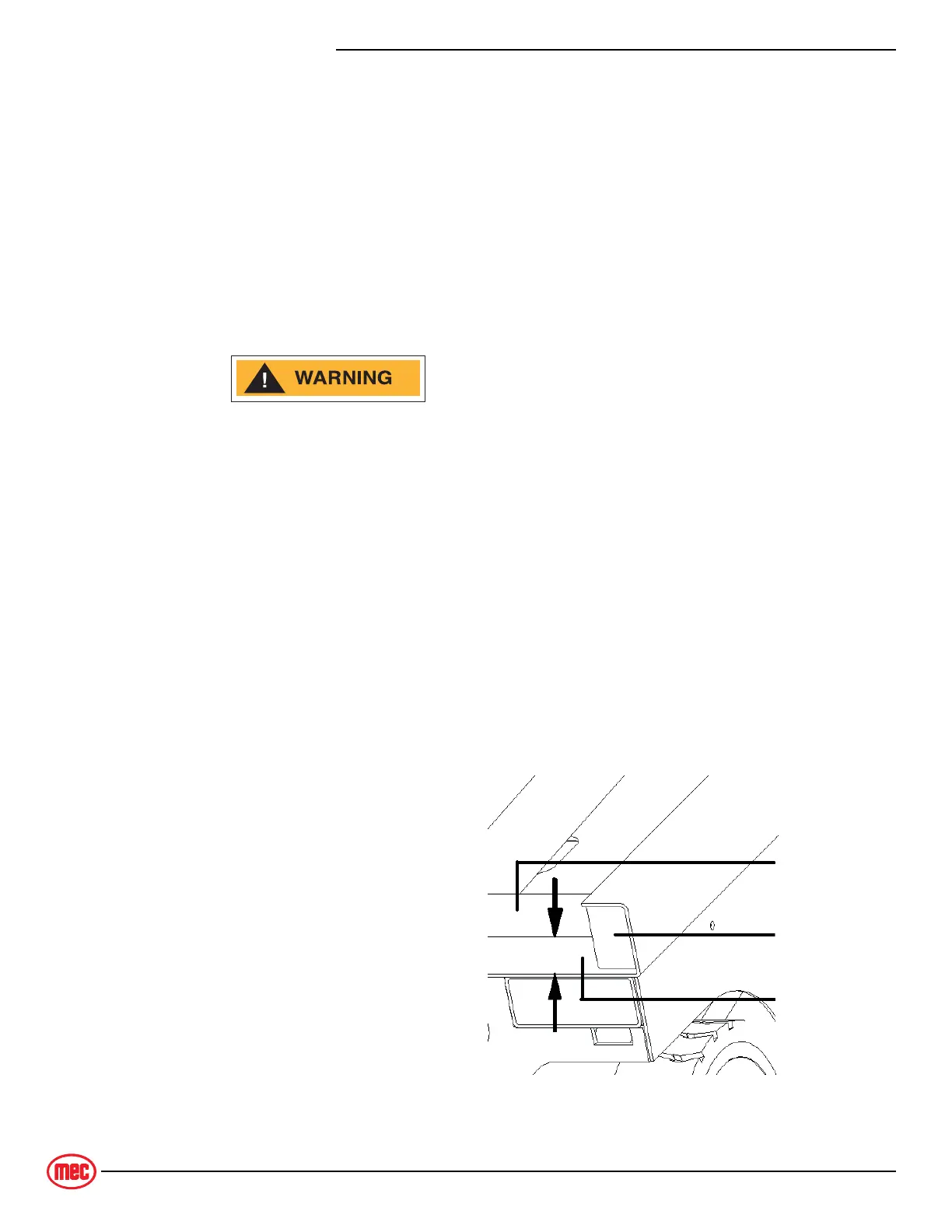

1. Measure the distance between the
number one inner arm cross tube
and the chassis deck at the ground
controls side of the non-steer end
of the machine.
• Result: The measurement is 1.34 in /
34 mm or more. Proceed to step 2.
• Result: The measurement is less than
1.34 in / 34 mm. Replace both slide
blocks.
ART_5122
Slide Block
Inner Arm
Cross Tube
Chassis Deck
To Next Page
