CONTROL COMPONENT LOCATIONS
C ONTROL C OMPONENT L OCATIONS

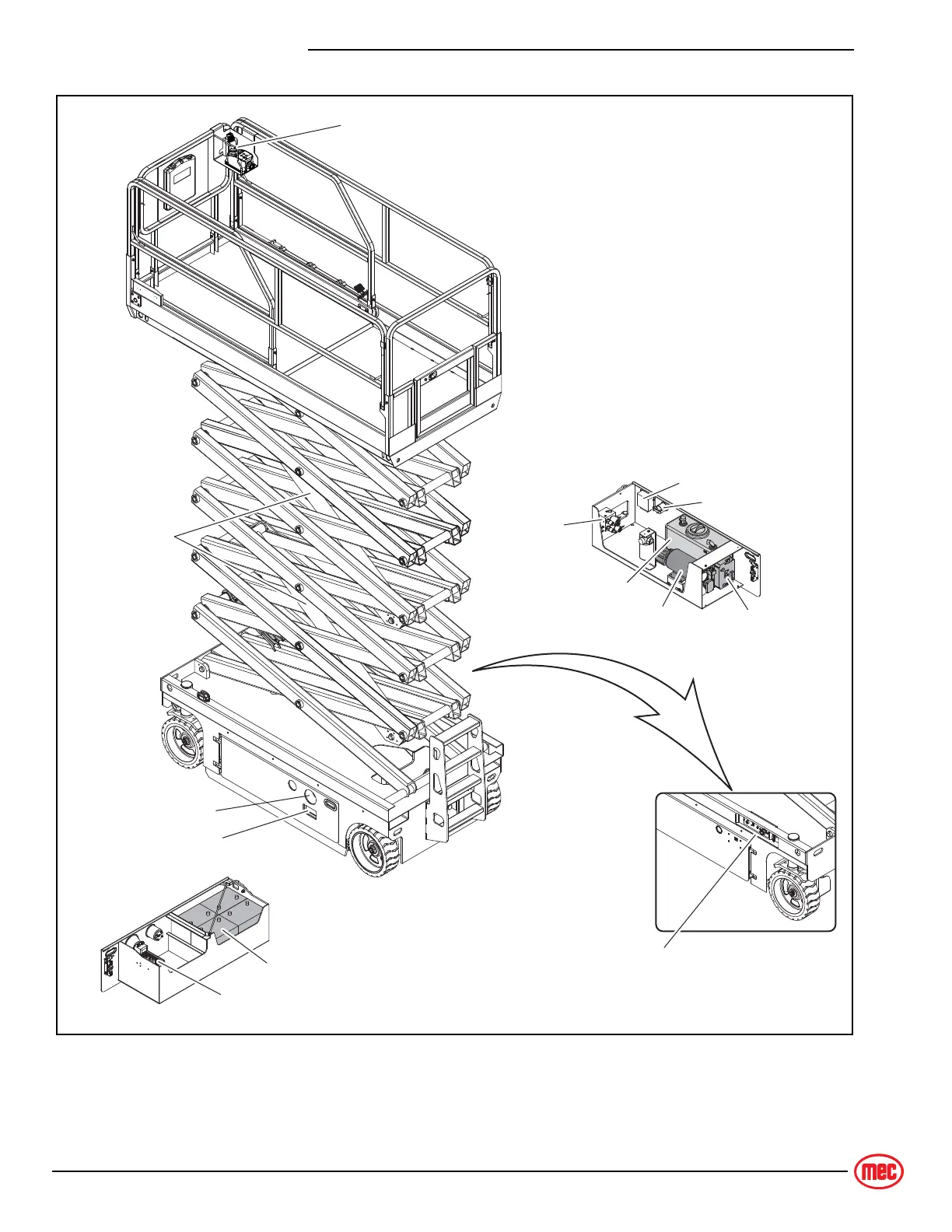

ART_5125
Platform Controls/
PCU
Lift Cylinders
Lower
Controls
Batteries
Motor Controller/
ECU2
Hydraulic Pump
& Motor
Hydraulic Tank
Functions
Manifold
Hour Meter
ECU
Battery Tray
Controls Tray
Battery
Charger
Battery
Charger
Main Power
Switch
