Mecmesin afg 1000n - PLC Sub-menu 2: Setting Limits; Test Stand Control; STAND Sub-menu 1: Stand Functions

page 15
Example 3
Settings: -
- BOTH LED and audio alarms
are active
- Alarm triggers on OUT
BAND
- Alarm is set to FAIL
- % DROP is 10% of full-scale
(e.g. AFG 100N must
register drop of 10N)
Main display is set to 1st
peak tension screen
Example 4
Settings: -
- BOTH LED and audio alarms
are active
- Alarm triggers on OUT
BAND
- Alarm is set to FAIL
- % DROP is 10% of full-scale
(e.g. AFG 100N must
register drop of 10N)
Main display is set to 1st
peak tension screen

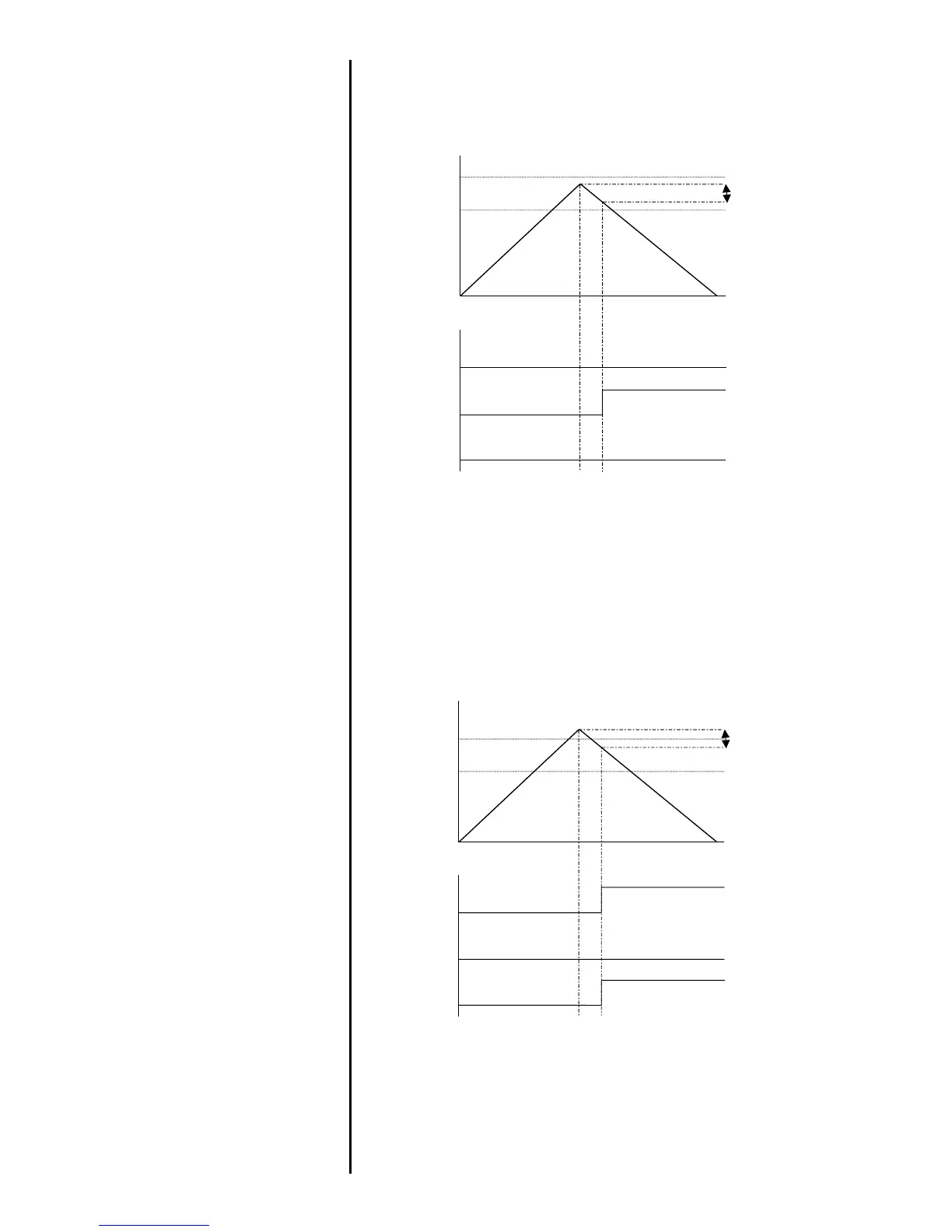

Example 3
UPPER LIMIT
LOWER LIMIT
LOAD
TIME
10% DROP
RED LED
GREEN LED
BEEP
ON
OFF
ON
ON
OFF
OFF
Example 4
UPPER LIMIT
LOWER LIMIT
LOAD
TIME
10% DROP
RED LED
GREEN LED
BEEP
ON
OFF
ON
ON
OFF
OFF
