Mecmesin afg 1000n - PLC (Programmable Limit Controller); PLC Sub-menu 1: Function Status

page 14

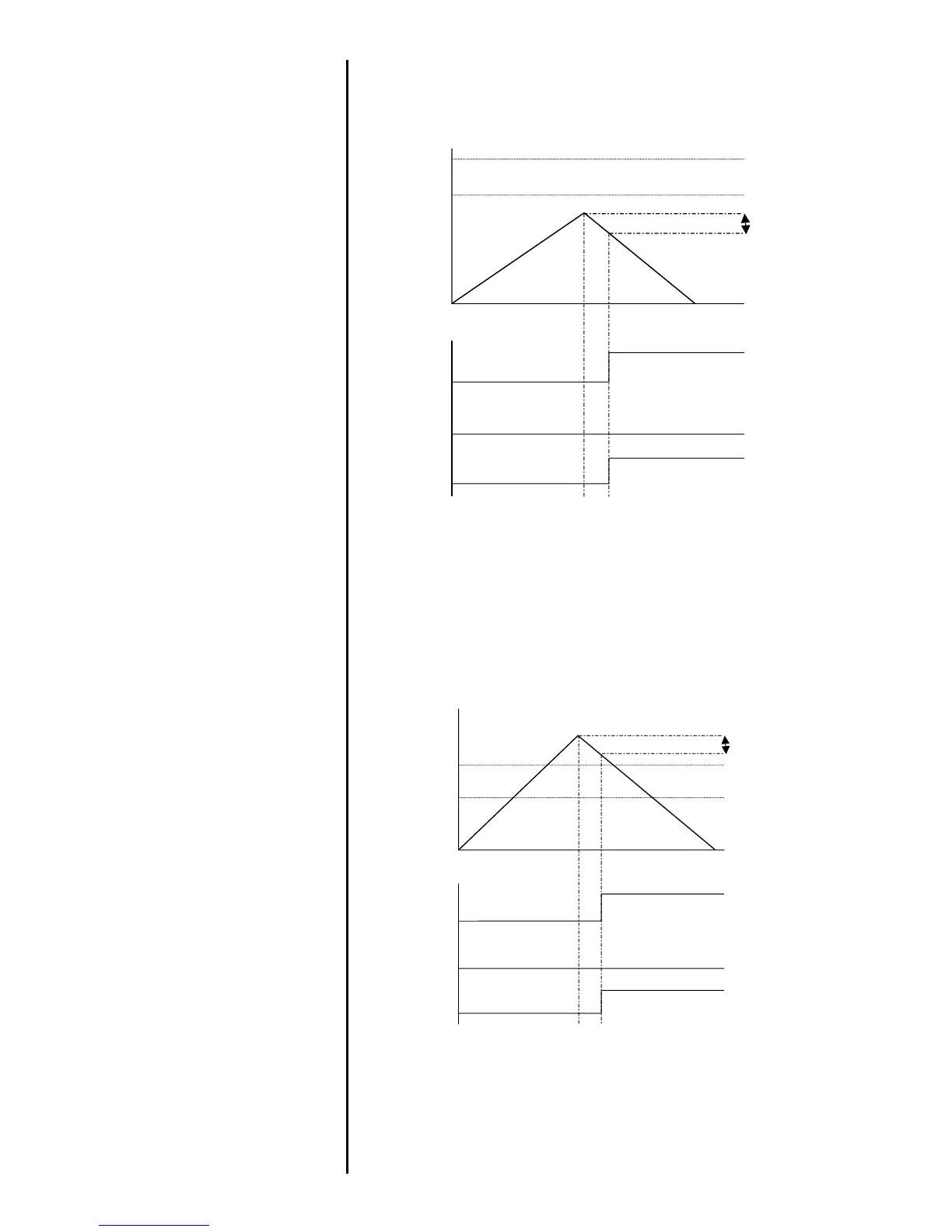

Example 1
Settings: -
- BOTH LED and audio
alarms are active
- Alarm triggers on OUT
BAND
- Alarm is set to FAIL
- % DROP is 10% of full-
scale (e.g. AFG 100N
must register drop of 10N)
Main display is set to 1st
peak tension screen
Example 2
Settings: -
- BOTH LED and audio
alarms are active
- Alarm triggers on OUT
BAND
- Alarm is set to FAIL
- % DROP is 10% of full-
scale (e.g. AFG 100N
must register drop of 10N)
Main display is set to 1st
peak tension screen
Example 1
UPPER LIMIT
LOWER LIMIT
LOAD
TIME
10% DROP
RED LED
GREEN LED
BEEP
ON
OFF
ON
ON
OFF
OFF
Example 2
UPPER LIMIT
LOWER LIMIT
LOAD
TIME
10% DROP
RED LED
GREEN LED
BEEP
ON
OFF
ON
ON
OFF
OFF
