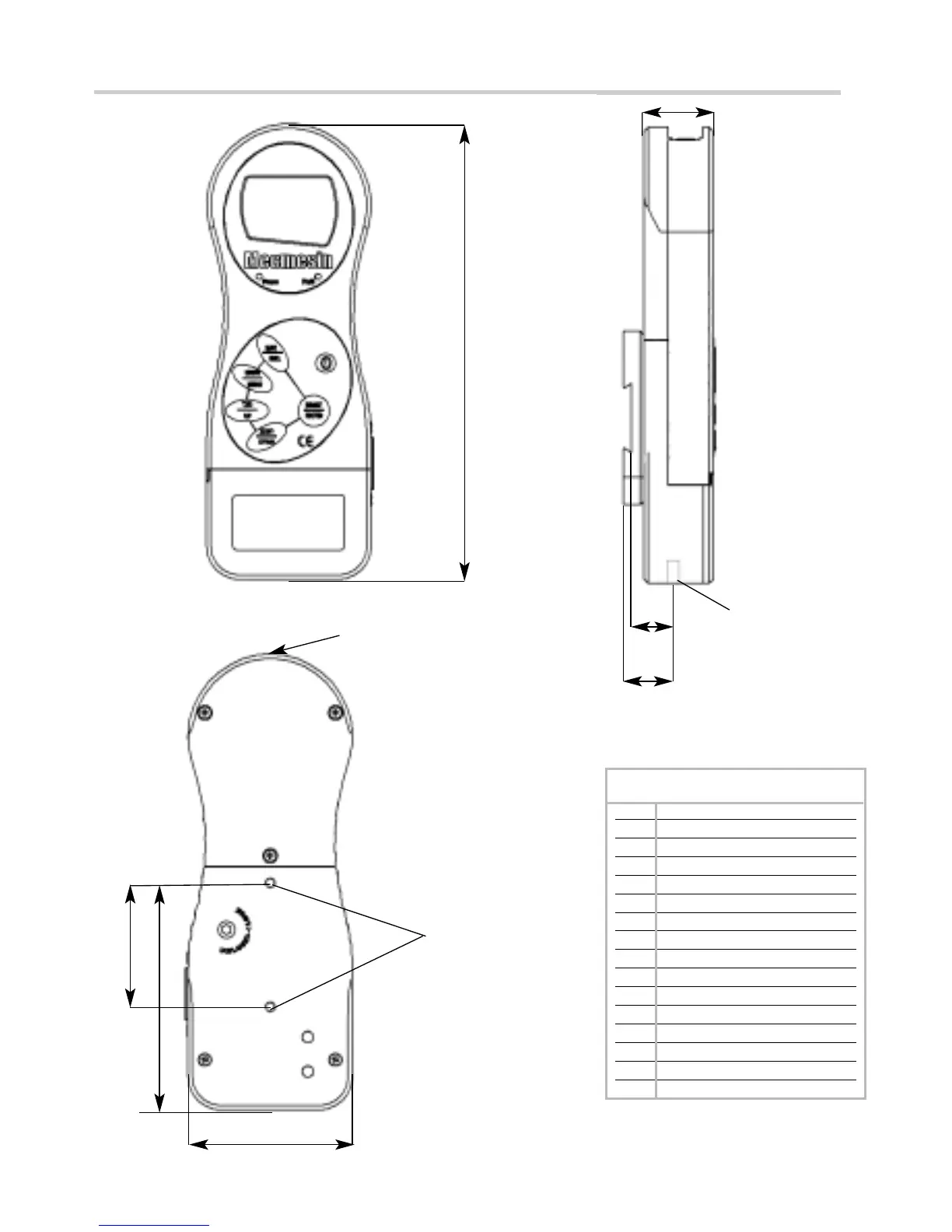

Dimensions (incl. Pin-out details)
Allocation for the pins on the
Male 15 way ‘D Type’
Communication Connector
AFG Mk 3 D Connector Pin Out:
1 Analogue Output
2 RS232 Transmit
3 RS232 Receive
4 Mitutoyo Clock Output
5 Mitutoyo Ready Output
6 + 5 Volts
7 FREEZE Reading Input
8 Stand Reverse UP
9 Footswitch 2 Input/SMART -ve out
10 Ground
11 Mitutoyo Request Input
12 Mitutoyo DATAOutput
13 Footswitch 1 input
14 PLC Output
15 Stand reverse DOWN
TAPPED HOLE:
THREAD M5 x 0.8 x
5.5mm DEEP
INTERNAL
LOADCELL STUD
THREAD
= M6 x 1.0
17mm
21mm
32mm
210mm
*
* Shown with Dovetail Mounting Bracket
(supplied with Mecmesin Test Stands)
57mm
105mm
76mm
BATTERY COVER
Front View Side View
Rear View
15 WAY D-TYPE
COMMUNICATION
CONNECTOR
