Powering up
Please note that an AFG
measuring very low forces may
not show zero if it is moved
during the self test routine. Once
it is properly mounted and
zeroed the reading will be stable
NB: All the current settings are
saved when the gauge is turned
off and the gauge will function in
the same mode when powered
up again.
As shown in Figure 1b the control panel has 6 keys:-
To power up the
gauge press the
red key. A
short self test runs
during which the
display will show
the model and
capacity in
Newton’s.
After the self test, providing no load has been applied to the
instrument, the display will show all zeroes. This is because
the gauge re-zeroes itself during the self test routine.
If a force is applied perpendicularly via the sensor probe
(hole at bottom of AFG), the reading on the display will
register the applied force.
* Do not overload
the transducer, as this will cause
irreparable damage.
Forces greater than 120% of full-scale will produce an
audible beep until load is released and an OL symbol will
appear on the display for 30 seconds.
Forces greater than 150% of full-scale will produce an
audible beep until load is released and an OL symbol will
appear permanently on the display. Consult your supplier to
arrange repair.
To power down the gauge press the red key.
b

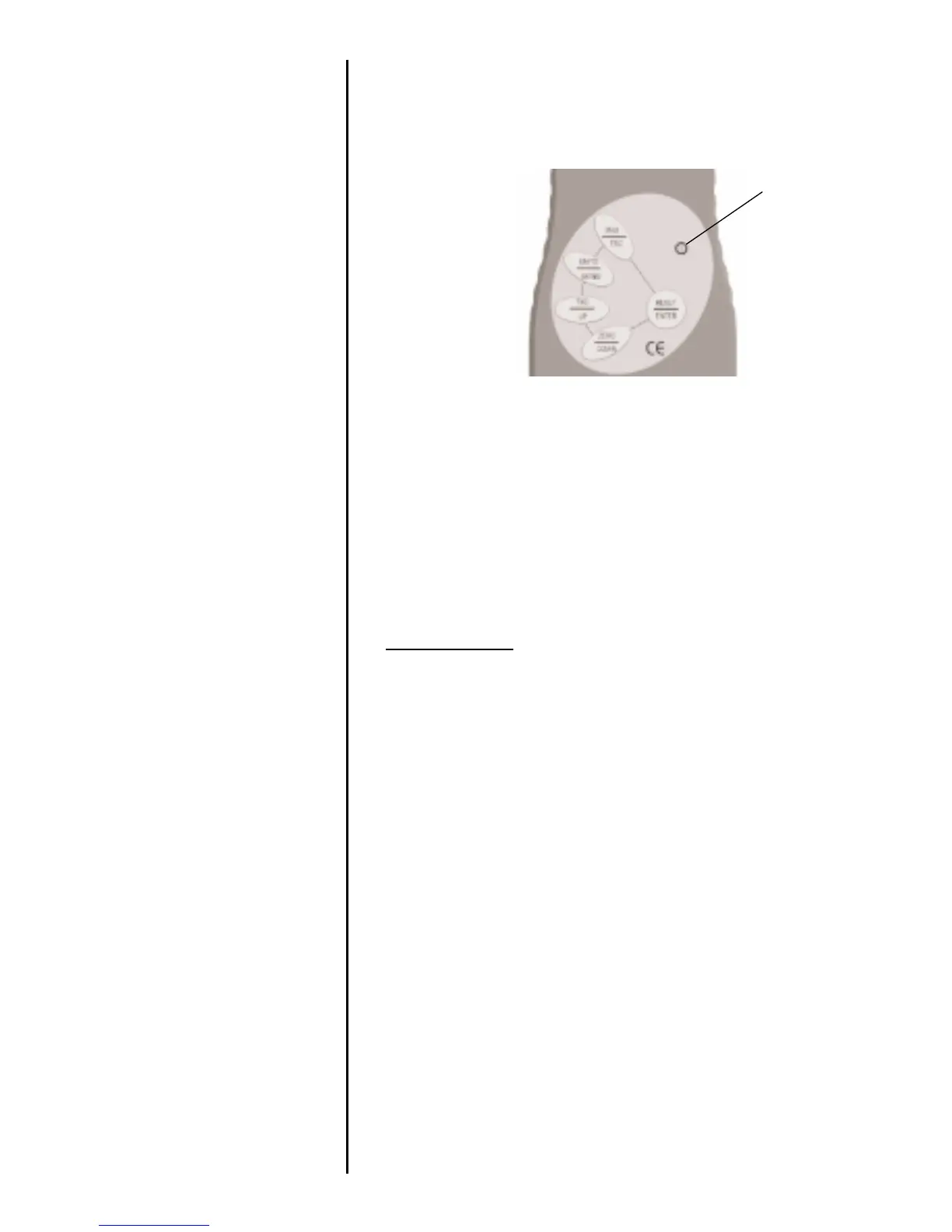

Fig.1b
b
Power On/Off
key
