Mecmesin Multitest 0.5d - Page 34

Multitest 0.5d, 1d & 2.5d
Service and Repair Manual
Number 022-005
Issue Number: 08
Page 34 of 58
111. Slacken grub screws retaining top and bottom fixed collets (note the relative
positions of all four collets)

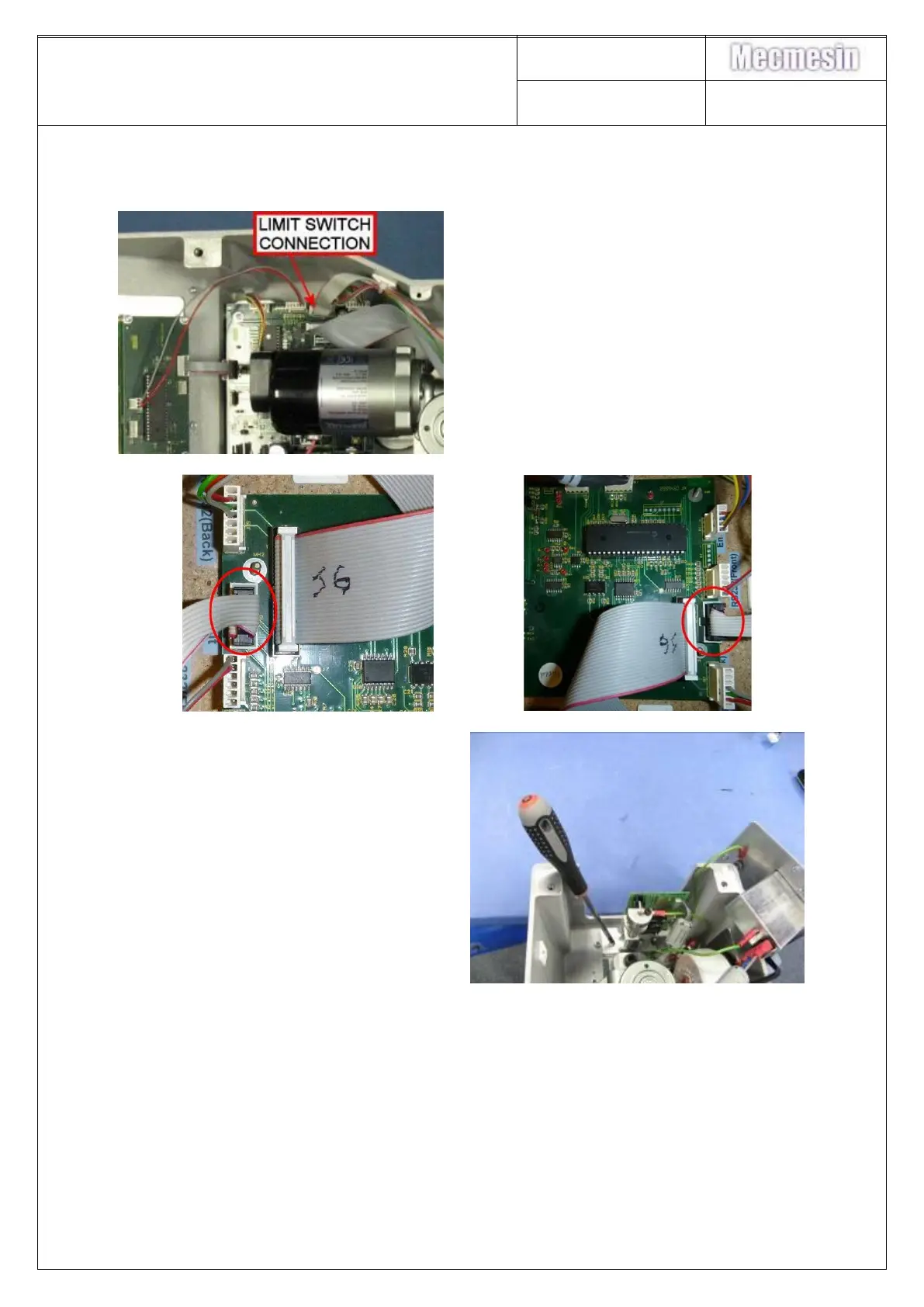

112. Unplug limit switch from PCB
113. Remove the 2-off M4 x 12 taptite
pan head pozi drive screws
retaining the limit switch to the
base casting
