Multitest 0.5d, 1d & 2.5d
Service and Repair Manual
Number 022-005
Issue Number: 08
Page 35 of 58

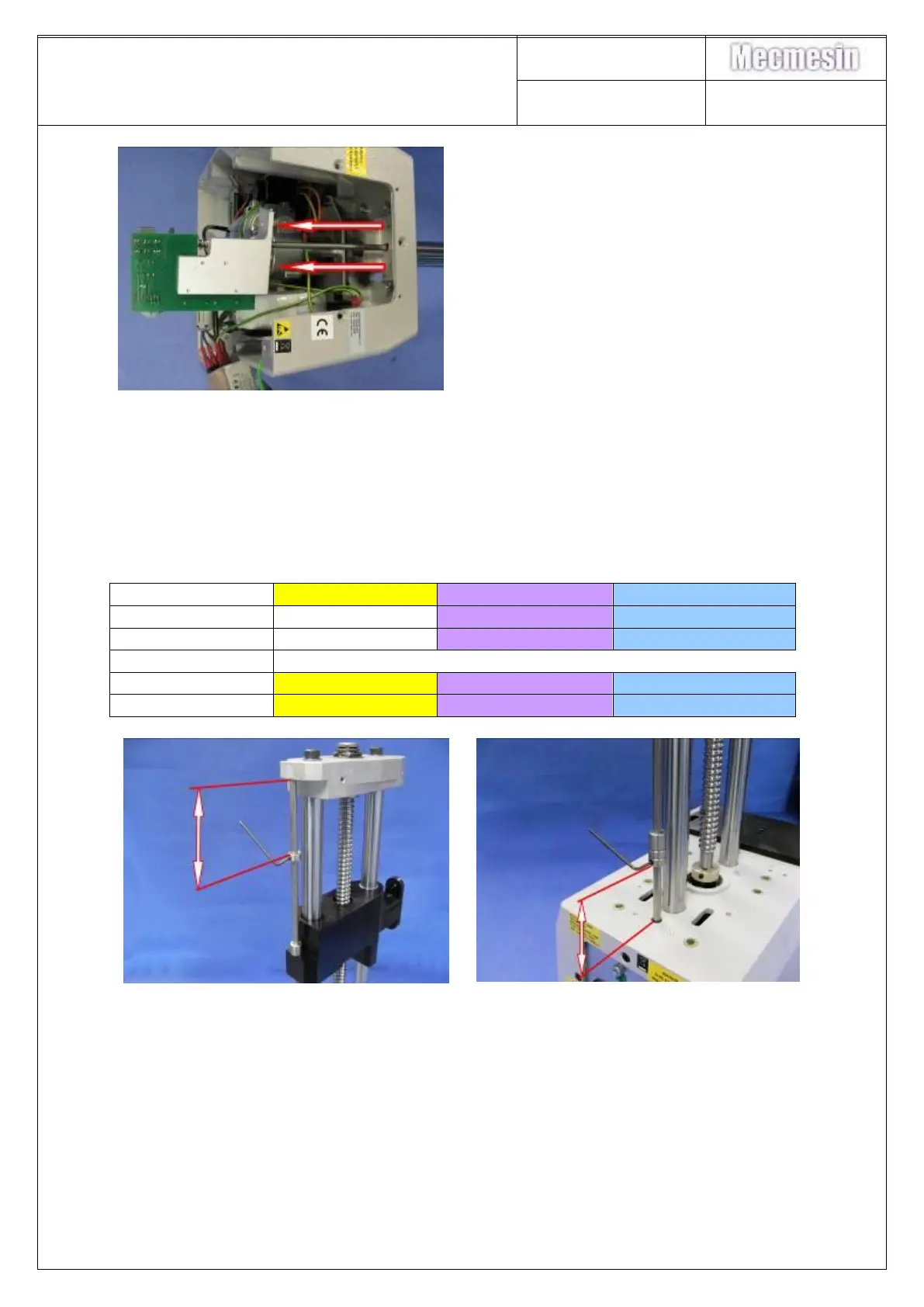

114. Withdraw the limit switch/rod
assembly from the test stand
Refitting of the Limit Switch
is the reverse of the above procedure
115. Adjust top and bottom (short) locking collars to “Factory” set limits as listed in
the table below. Tighten in position using Loctite 243 on the screwthreads.
Mk 1 Stands
0.5 kN Stands
1 kN Stands
2.5 kN Stands
Top Collar
-
65mm
65mm
Bottom Collar
-
60mm
50mm
Mk 2 Stands
Top Collar
50mm
50mm
50mm
Bottom Collar
60mm
60mm
60mm
