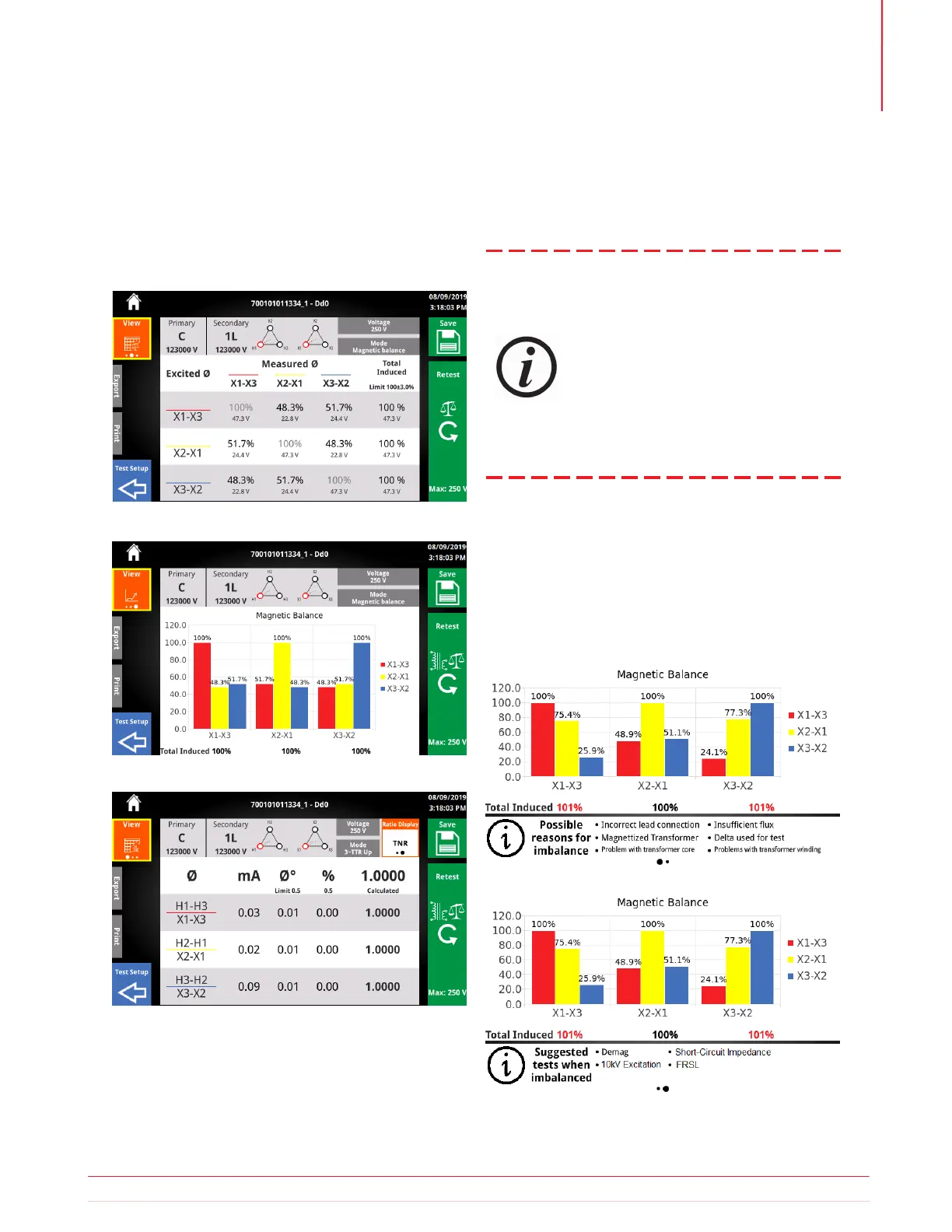

Magnetic Balance Table View
Magnetic Balance Graph View
Turns Ratio View
Selecting the View button will change how and what
data is displayed. There are three possible views for
the magnetic balance test.
5.23.7 Magnetic Balance
Test Success Views
If the total induced % exceeds the imbalance limit
for one or more phases excited, the magnetic bal-
ance graph view will display additional information
below the graph.
Select the pills to change the view from possible
reasons for imbalance to suggested tests.
5.23.8 Possible Reasons
for Imbalance and
Suggested Tests
when Imbalanced
Possible reasons for imbalance is
informative only.
To investigate further, Suggested Tests
can be run.
Always refer to your companies pol-
icies when determining if additional
testing is required.
