11

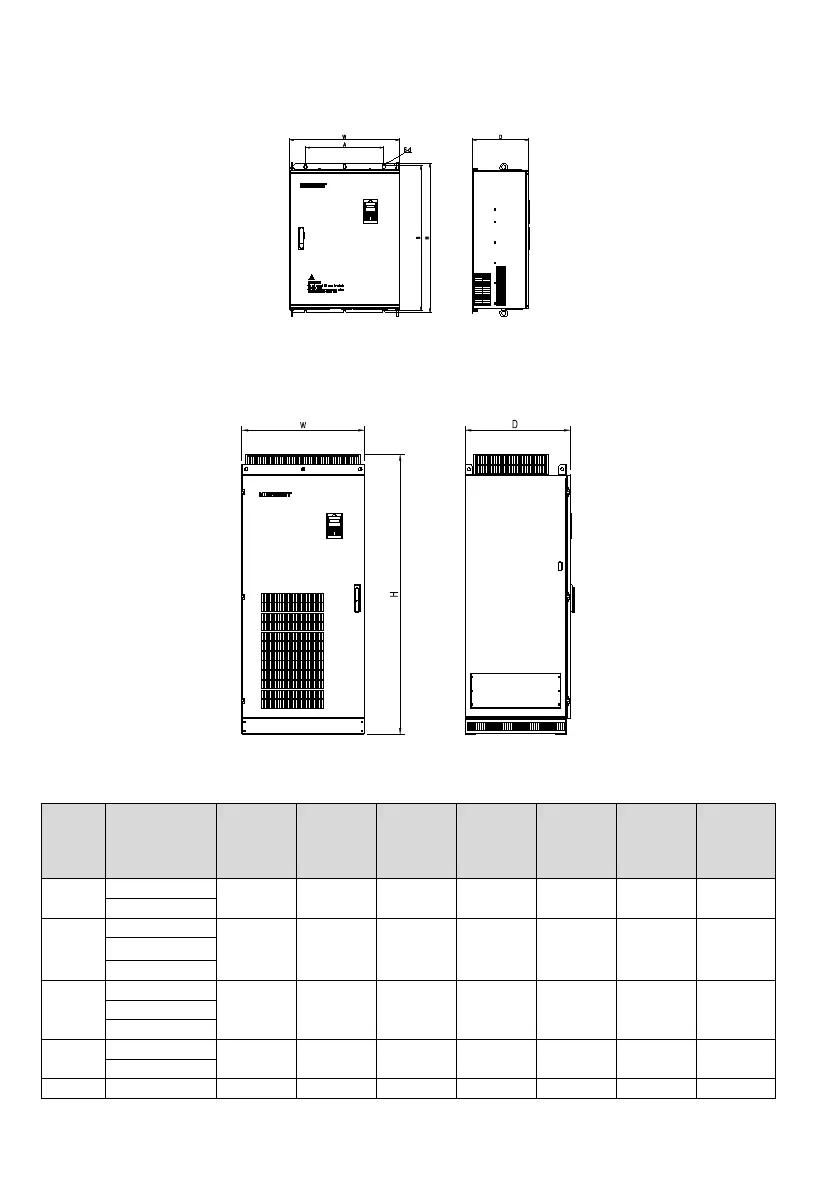

3. Enclosure R9~R10 (G: 160kW-315kW; P: 160kW-315kW)
Fig. 1-4 Outline, mounting dimensions for products of R9~R10
4. Enclosure R11 (G: 355kW-400kW; P: 355kW-400kW)
Fig. 1-5 Outline, mounting dimensions for products of R11
Table 1-4 Outline, mounting dimensions and gross weight of MV200G
Enclosure
model
Drive model
A（mm） B（mm） H（mm） W（mm） D（mm）
Diameter of
mounting
aperture
(mm)
Gross
weight
±0.5 (kg)
R3
MV200G-4T5.5
137 236 249 155 198 5.5 4
MV200G-4T7.5
R4
MV200G-4T11
186 314.5 330 209 206 6.5 9 MV200G-4T15
MV200G-4T18.5
R5
MV200G-4T22
220 437.5 451.5 284.5 213 6.5 19 MV200G-4T30
MV200G-4T37
R6
MV200G-4T45
270 549 570 335 267 7 41
MV200G-4T55
R7 MV200G-4T75 270 579 600 335 292 7 49
