Megmeet MV200 Series - 3.1 Wiring and configuration of main circuit terminals

21

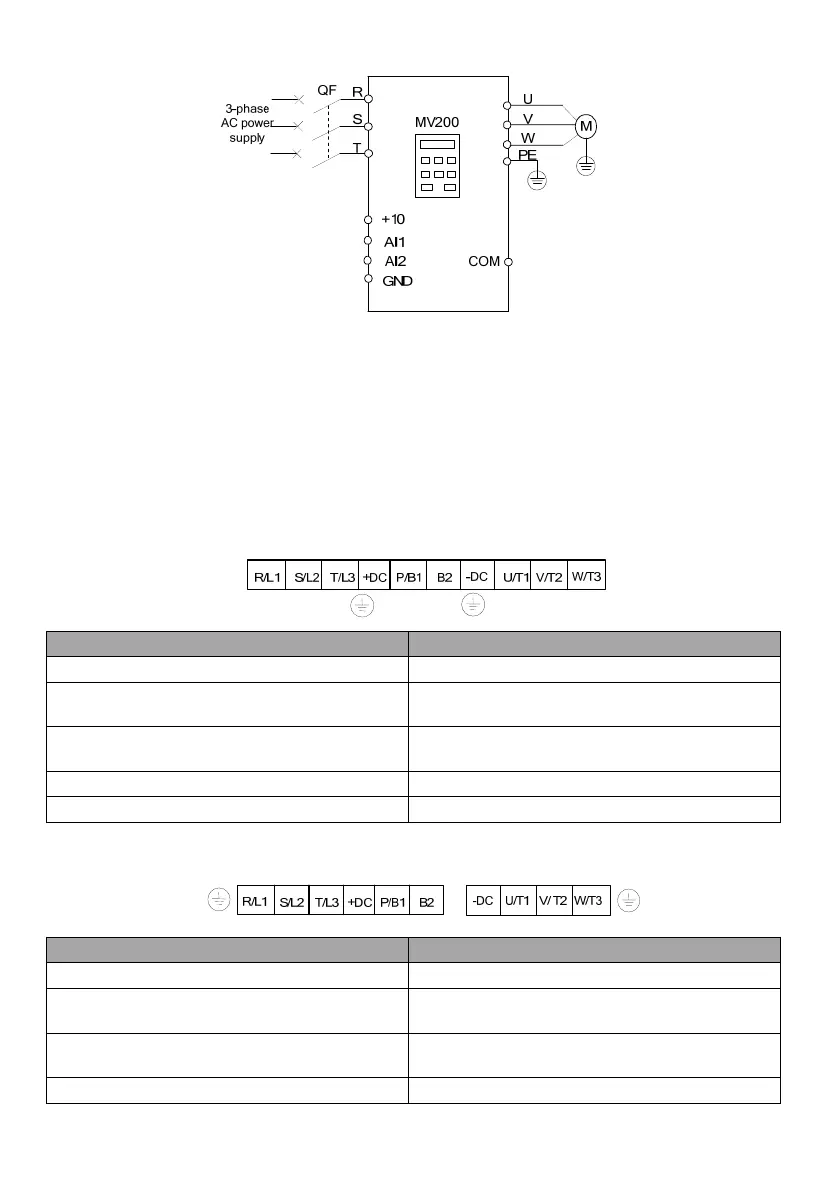

Fig. 3-1 Simple wiring diagram for main circuit
3.1 Wiring and configuration of main circuit terminals
3.1.1 Types of main circuit input/output terminals
There are seven types of main circuit terminals, due to different drive models. The detailed descriptions are as
follows:
Terminal type 1
Applicable models: MV200G-4T5.5 ~ MV200G-4T18.5, MV200P-4T5.5 ~ MV200P-4T18.5
Terminal Function
R/L1, S/L2, T/L3 Three-phase AC 380V input terminals
+DC, P/ B 1 Reserved for external DC reactor, connected with copper bus
upon delivery
P/ B 1, B2 Reserved for external braking resistor(please refer to Table
1-7)
-DC DC negative bus output terminals
U/T1, V/T2, W/T3 Three-phase AC output terminals
Terminal type 2
Applicable models:MV200G-4T22~ MV200G-4T30, MV200P-4T22 ~ MV200P-4T37
Terminal Function
R/L1, S/L2, T/L3 Three-phase AC 380V input terminals
+DC, P/ B 1 Reserved for external DC reactor, connected with copper bus
upon delivery
P/ B 1, B2 Reserved for external braking resistor(please refer to Table
1-7)
-DC DC negative bus output terminals
