Megmeet MV200 Series User Manual

22
U/T1, V/T2, W/T3 Three-phase AC output terminals

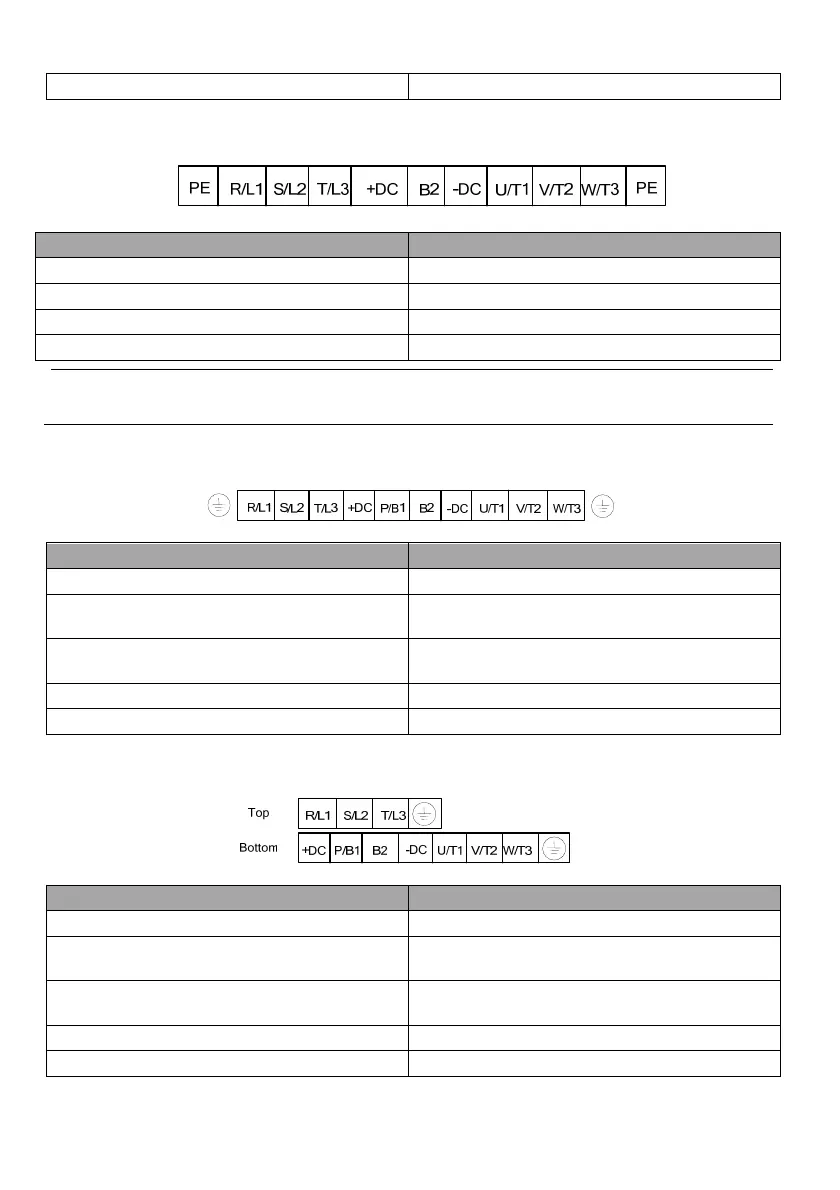

Terminal type 3
Applicable models: MV200G-4T37
Terminal Function
R/L1, S/L2, T/L3 Three-phase AC 380V input terminals
+DC, B2 Reserved for external DC reactor
-DC DC negative bus output terminals
U/T1, V/T2, W/T3 Three-phase AC output terminals
 Note
MV200G-4T37 can not be common DC bus applications.
Terminal type 4
Applicable models: MV200G-4T45 ~ MV200G-4T55, MV200P-4T45 ~ MV200P-4T55
Terminal Function
R/L1, S/L2, T/L3 Three-phase AC 380V input terminals
+DC, P/ B 1 Reserved for external DC reactor, connected with copper bus
upon delivery
P/ B 1, B2 Reserved for external braking resistor(please refer to Table
1-7)
-DC DC negative bus output terminals
U/T1, V/T2, W/T3 Three-phase AC output terminals
Terminal type 5
Applicable models: MV200G-4T75, MV200P-4T75 ~ MV200P-4T90
Terminal Function
R/L1, S/L2, T/L3 Three-phase AC 380V input terminals
+DC, P/ B 1 Reserved for external DC reactor, connected with copper bus
upon delivery
P/ B 1, B2 Reserved for external braking resistor(please refer to Tabble
1-7)
-DC DC negative bus output terminals
U/T1, V/T2, W/T3 Three-phase AC output terminals
