6.9 Auxiliary function parameters (Group P11)
0: Linear acceleration/deceleration

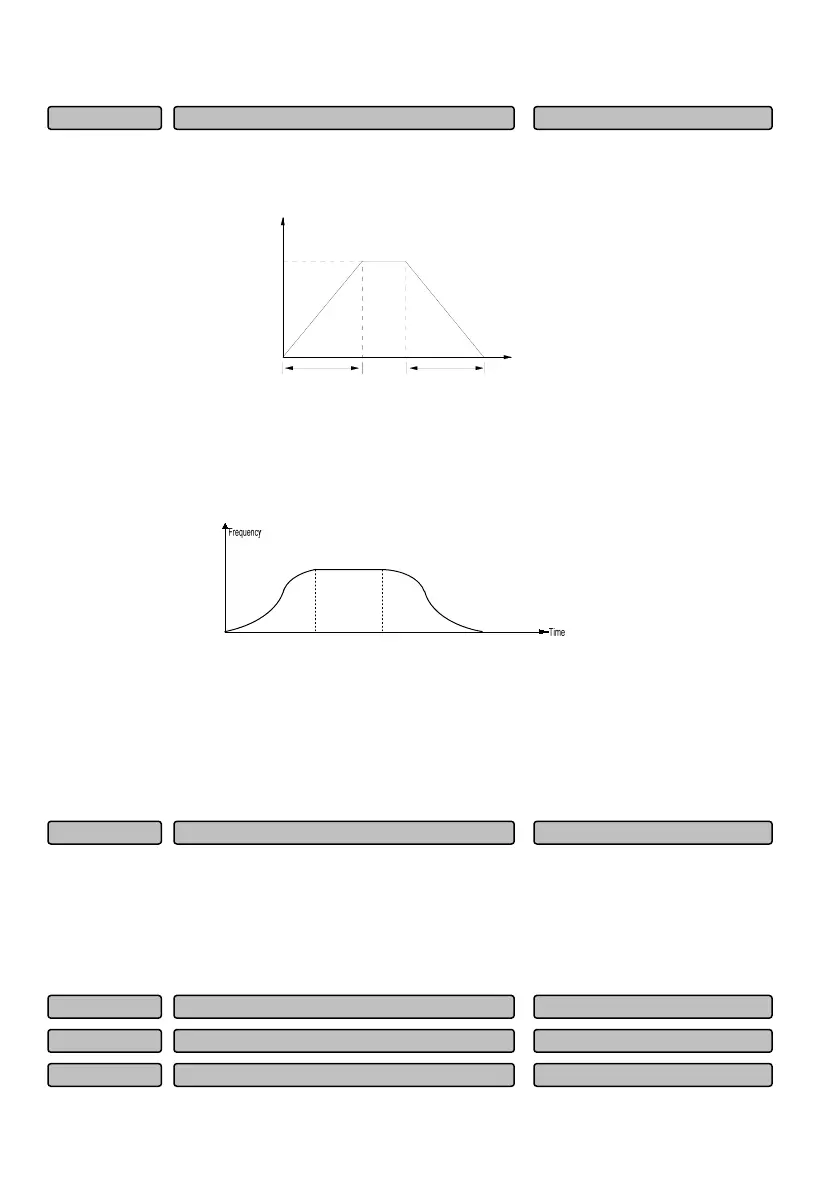

The output frequency is decreased or increased according to constant slope, as shown in Fig. 6-43.
Frequency
Time
f
max
t
1
t
2
Fig.6-43 Linear acceleration/deceleration
1: S curve acceleration/deceleration
The output frequency is decreased or increased according to the S curve, as shown in Fig. 6-44.
Fig.6-44 S curve acceleration/deceleration
The speed setting value is in the S curve status at the beginning of the acceleration and when it reaches
the desired speed, and at the beginning of the deceleration and when it reaches the desired speed. Thus,
the acceleration and deceleration can be smooth and there is less impact. The S curve
acceleration/deceleration mode is applicable to the start and stop of carrier of transportation and
transmission, such as the elevator, conveyor, etc.
0: 0.1s
1: s
2: min
This function is used for defining the time unit for all the acceleration/deceleration operations, except for
the jog operation.
Acceleration time 3 0.0~3600.0
(
6.0
)
P11.04
Deceleration time 2 0.0~3600.0
(
6.0
)
P11.03
Acceleration time 2 0.0~3600.0
(
6.0
)
P11.02
Acceleration/deceleration time unit 0~2
(
1
)
P11.01
Acceleration/deceleration mode selection 0~1
(
0
)
P11.00
