Megmeet MV200 Series User Manual

31

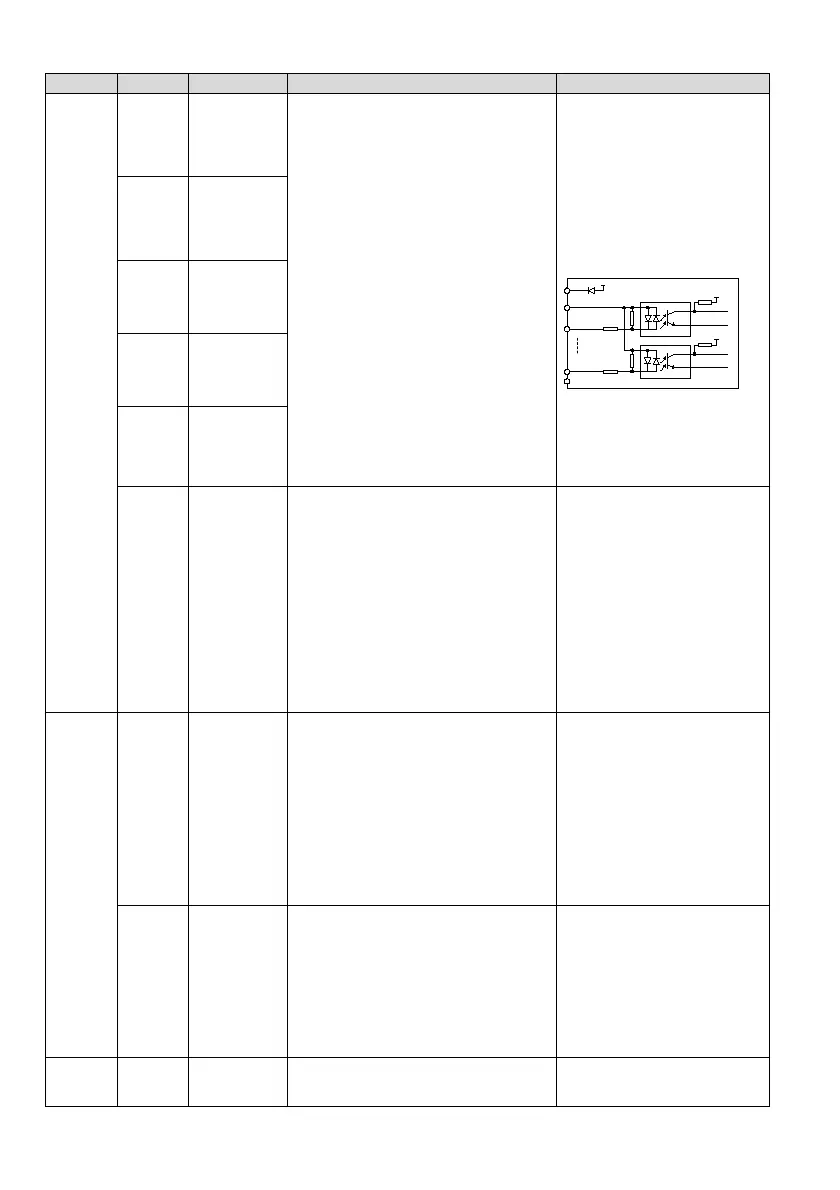

Type Terminal Name Function Specification
Multi-funct
ional input
terminal
X1
Multi-functional
input terminal
1
It can be set as the digital input terminal with
multiple functions.The factory default
settings for X1 and X2 are FWD (forward
running command terminal) and REV
(reverse running command terminal)
respectively. The running command
terminals can be set with other input
terminals and can realize the “three-wire
control” function with the third input terminal.
For details, please refer to the introduction of
the functions about input terminals
P09.00~P09.05 and the introduction of the
“two-wire control” and “three-wire control”
functions (P09.08) in 6.7, “Digital
input/output parameters” (Group P09)
(common terminal: PLC or COM).
Opto-isolated input, please refer to
the introduction to the
multifunctional input/output
terminal wiring
Input resistance: R=3.1kΩ;
maximum input frequency: 200Hz
Input voltage range: 20V~30V
P24
+24V
PLC
X1
COM
+3.3V
X6
+3.3V
MV200
X2
Multi-functional
input terminal
2
X3
Multi-functional
input terminal
3
X4
Multi-functional
input terminal
4
X5
Multi-functional
input terminal
5
X6
Multi-functional
input terminal
6
In addition to acting as an ordinary
multi-functional terminals (same as X1~X5),
X6 can also be set as the high-speed pulse
input terminal. For details, please refer to the
introduction to the functions of input
terminals P09.00~P09.05 in 6.7 “Digital
input/output parameters” (Group P09)
(common terminal: PLC).
The equivalent diagram for the
optical coupling isolated input is
shown as above, please refer to
the introduction to wiring for the
multi-functional input/output
terminals.
Input resistance: R=2kΩ
Maximum input frequency: 100kHz
Input voltage range: 20V~30V
Multi-funct
ional
output
terminal
Y1
Open collector
output terminal
1 / DO pulse
output terminal
It can be set as the digital output terminal
with multiple functions and also can be
reused as DO pulse output terminal, which is
selected by the function code P09.17. For
details, please refer to the introduction to the
functions of P09.18 or P09.29 in 6.7 “Digital
input/output parameters” (Group P09)
(common terminal: COM).
Opto-isolated output
Maximum operating voltage: 30V
Maximum output current: 50mA
The DO pulse output frequency
range depends on P09.30 and the
maximum value is 50kHz
Y2
Open collector
output terminal
2
It can be set as the digital output terminal
with multiple functions. For details, please
refer to the introduction to the functions of
P09.19 in 6.7 “Digital input/output
parameters” (Group P09) (common terminal:
COM).
Opto-isolated output
Maximum operating voltage: 30V
Maximum output current: 50mA
Power
supply
P24
+24V power
supply
To provide +24V power for external load Maximum output current: 200mA
