3 Setup and installation
13

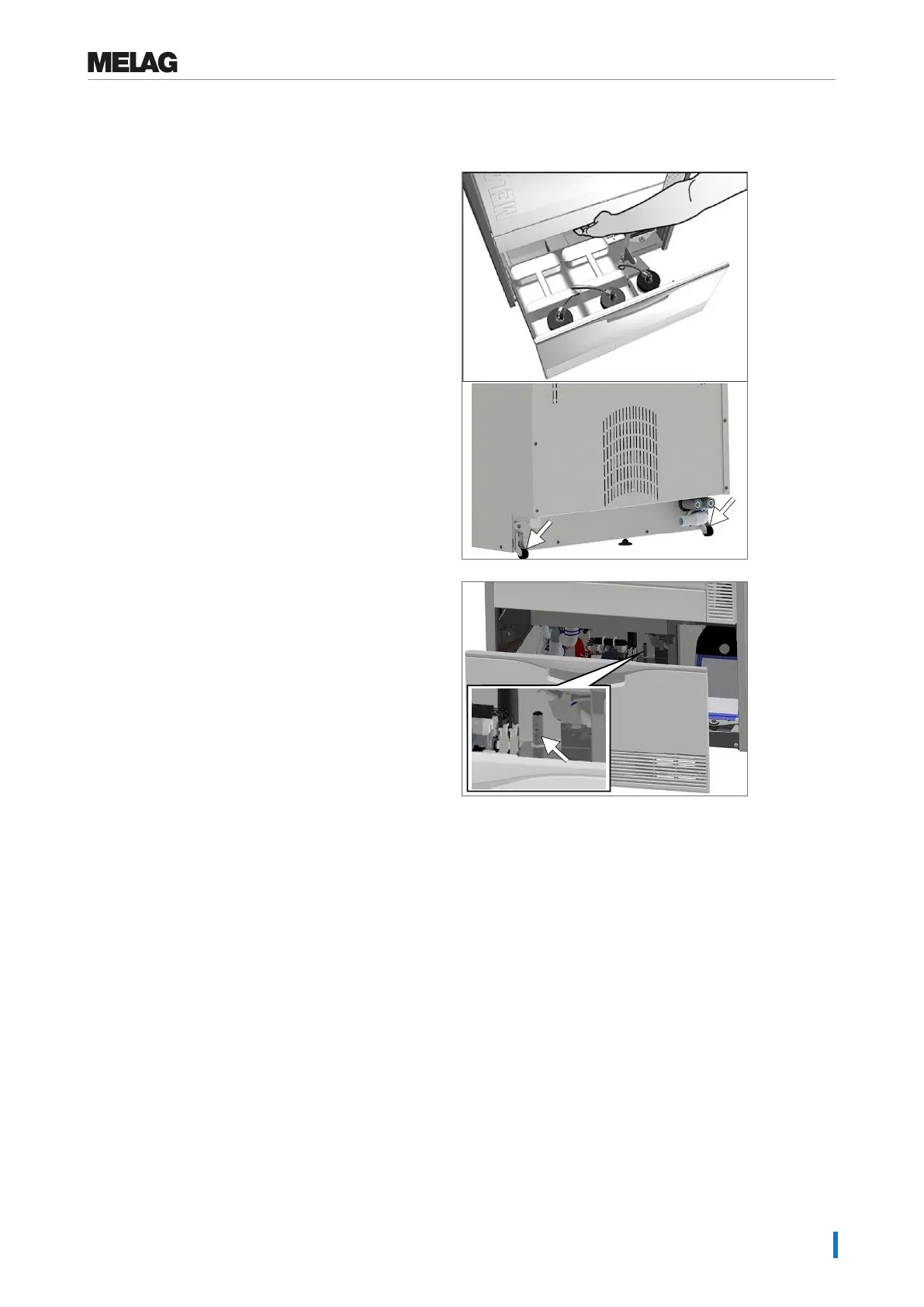

Positioning the device
If the device is to be set up in a niche underneath a work surface, proceed as follows:
1. Open the drawer and lift the device slightly. Move the
device on its rear caster into the required position.
2. As soon as the required position is reached, screw the
rear middle device foot downwards using an Allen key
(4mm) and align the device horizontally.
