2 Installation requirements
6
2 Installation requirements
Space requirements
A
B1 B2
B3
C
D
E
G
F

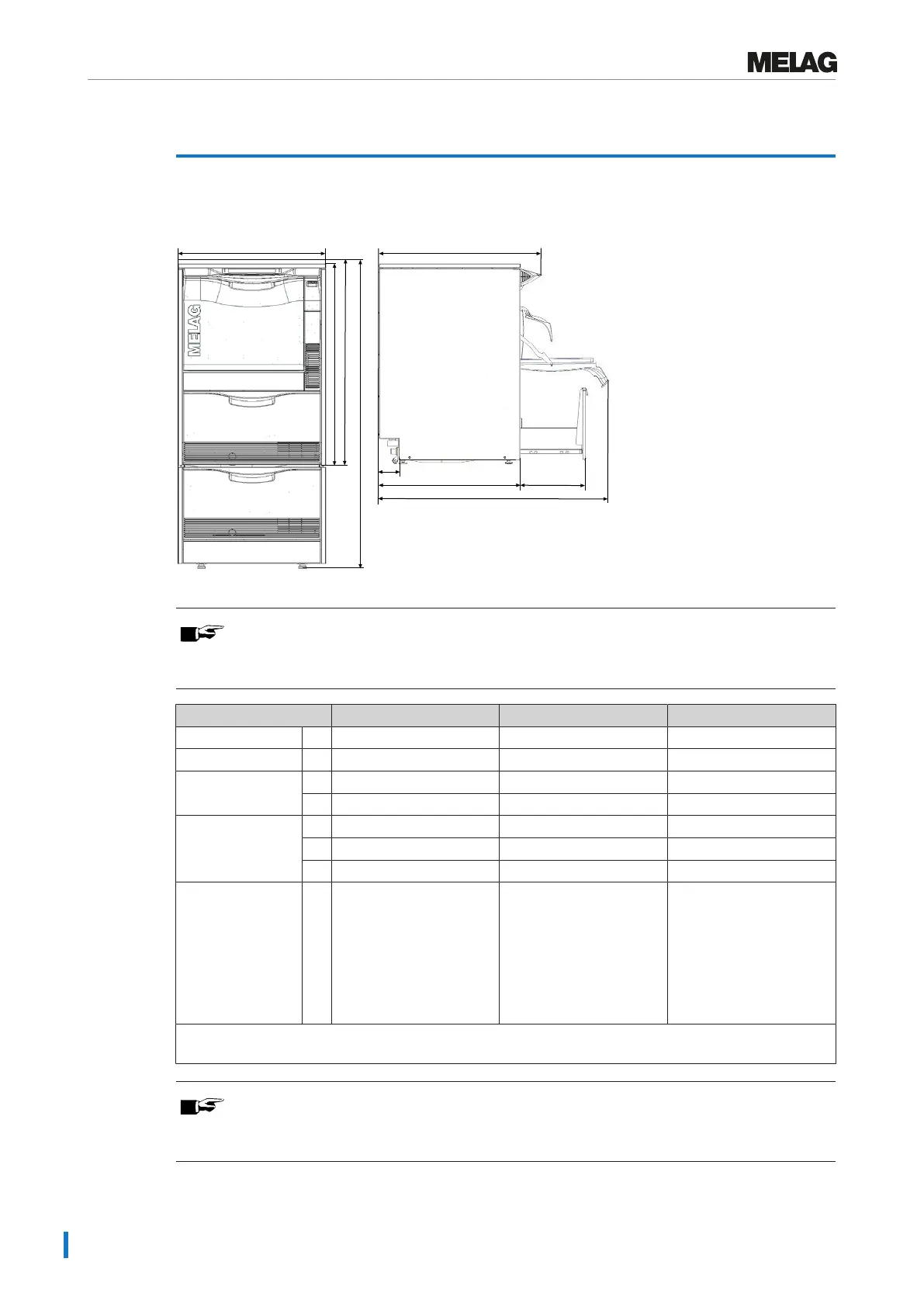

Fig.1: Fore view with floor unit and side view left
PLEASE NOTE
If the device is installed in an L-shaped corner, drawers to the left or right of the device
may be blocked and cannot open due to the protruding display unit.
Device dimensions Semi-integrated unit Free-standing Top-frame device*
)
Width A 59.8cm 59.8cm 59.8cm
Height B B1 = 81.8cm B2 = 83.6cm B3 = 124cm
Depth (with
display)
C 68.1 cm 68.1 cm 68.1 cm
D 8.2cm 8.2cm 8.2cm
Depth (without
display)
E 59.1cm 59.1cm 59.1cm
F 28.5cm 28.5cm 28.5cm
G 96.1cm 96.1cm 96.1cm
Remarks -- Space requirements in
the working surface:
min. 60cm width,
60cm depth and
82cm height.
Free-standing using the
optionally-available
stainless steel cover plate
e.g. next to to the already
present under-desk
cabinets.
This enables a
particularly ergonomic
operation and loading of
the device. Provides
storage space, e.g. for up
to six 5l containers. The
stainless steel cover plate
can also be used.
*
)
Free-standing using the optionally-available stainless steel cover plate e.g. next to the already present
under-desk cabinets.
PLEASE NOTE
Avoid disturbing installations in the area of the device rear (such as hoses, cables, pipes,
sockets etc.).
