3 Setup and installation
15
Aligning the device with floor unit
PLEASE NOTE
In order to align the device with floor unit (top-frame device), it is recommended to align
the floor unit first and then mount the device onto the floor unit, see Fitting the device on
a floor unit [
}
page16].

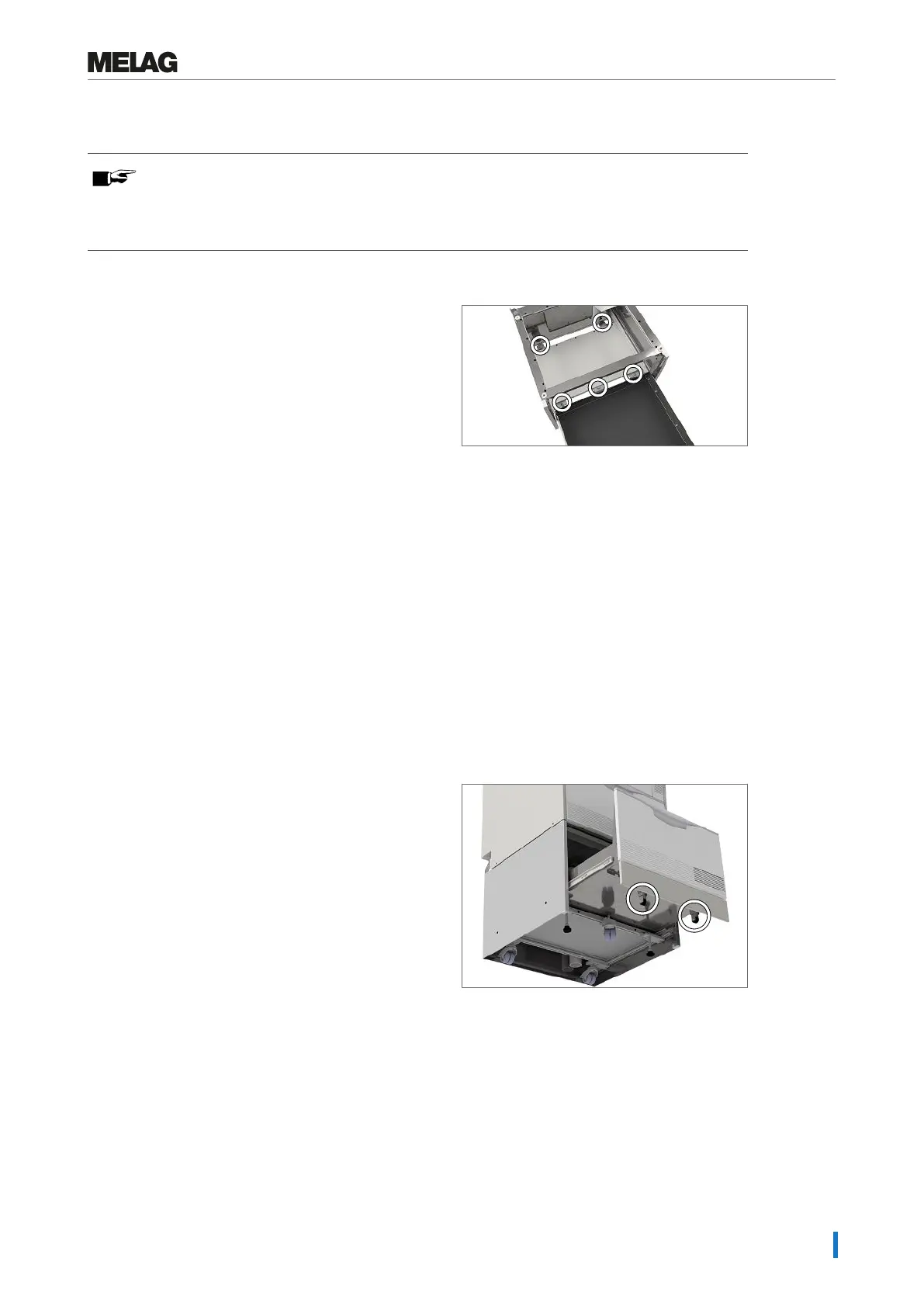

Move and align the floor unit as follows:
1. Open the drawer of the floor unit to its fullest extent in
order to obtain free access to the casters.
2. Slightly unscrew the third fore caster.
Ê The floor unit can now be moved in its final
position.
3. Afterwards, screw the middle caster in using an
Allen key (5 mm).
4. The rear casters and the feet are also adjusted by
screwing them in or out.
5. Fix the position of the Allen screws by countering
the nuts.
Adjust the support rollers of the drawer as
follows:
6. Open the drawer of the floor unit to its fullest extent.
7. Remove the drawer mat.
8. Adjust the support rollers in height as required by
screwing the Allen screws (5mm) in or out.
