MELAG MELAtherm 10 Evolution - On-Site Requirements

2 Installation requirements
9
Installation as a top-frame device
Requirements to construction-side wastewater connection for a top-frame device
Connection height Remarks
min. 0.74m ---
<0.74m Installation in a curve to at least 0.74m height

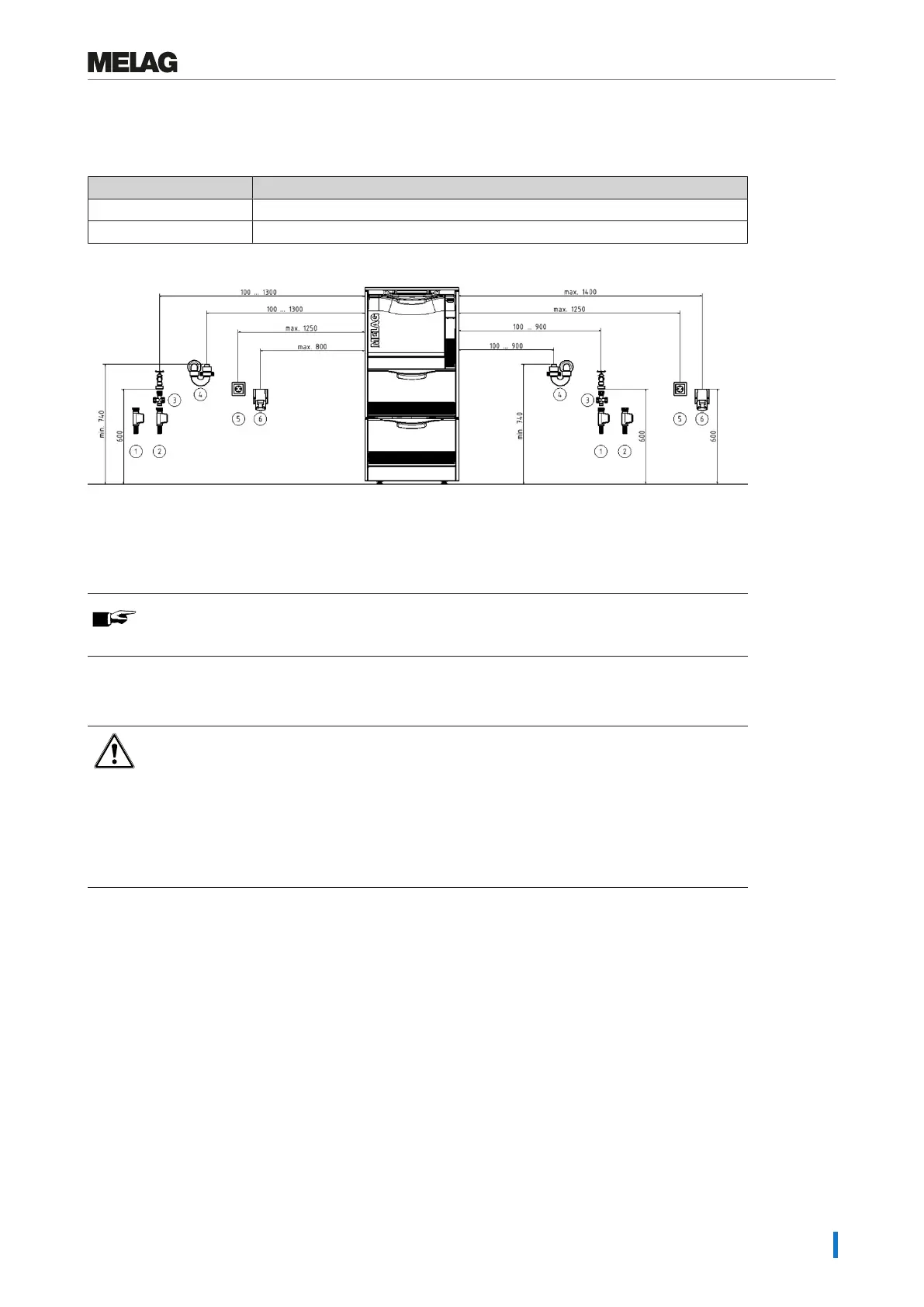

Fig.3: Connection scheme with floor unit
1 DI water connection 4 Connection for water outlet at the syphon
2 Cold water connection 5 Type F (SCHUKO) socket
3 Dirt trap water inlet 6 CEE socket
PLEASE NOTE
Due to the length of mains lead and water pipe a sinistral connection is recommended.
On-site requirements
WARNING
Improper connections can result in a short-circuit, fire, an electric shock or water
damage.
n The connection of the electrical supply as well as the feed and wastewater connections are
to be made by trained personnel.
n Comply with the specifications regarding the installation and first commissioning provided in
the user manual.
Mains supply
u Never damage or alter the power plug or cable.
u Never bend or twist the power cable.
u Never remove the plug by pulling on the power cable. Always take a grip on the plug.
u Never place any heavy objects on the power cable.
u Never run the power cable over areas in which it could become trapped (e.g. doors or windows).
u Never lead the cable along a source of heat.
u Never use any nails, paper fasteners or similar objects to fix the cable.
u Should the power plug or cable suffer damage, switch off the device. The power cable or plug should
only be replaced by authorized technicians.
