QDR InfiniBand Switch Platform User Manual Rev 3.4
Mellanox Technologies
31

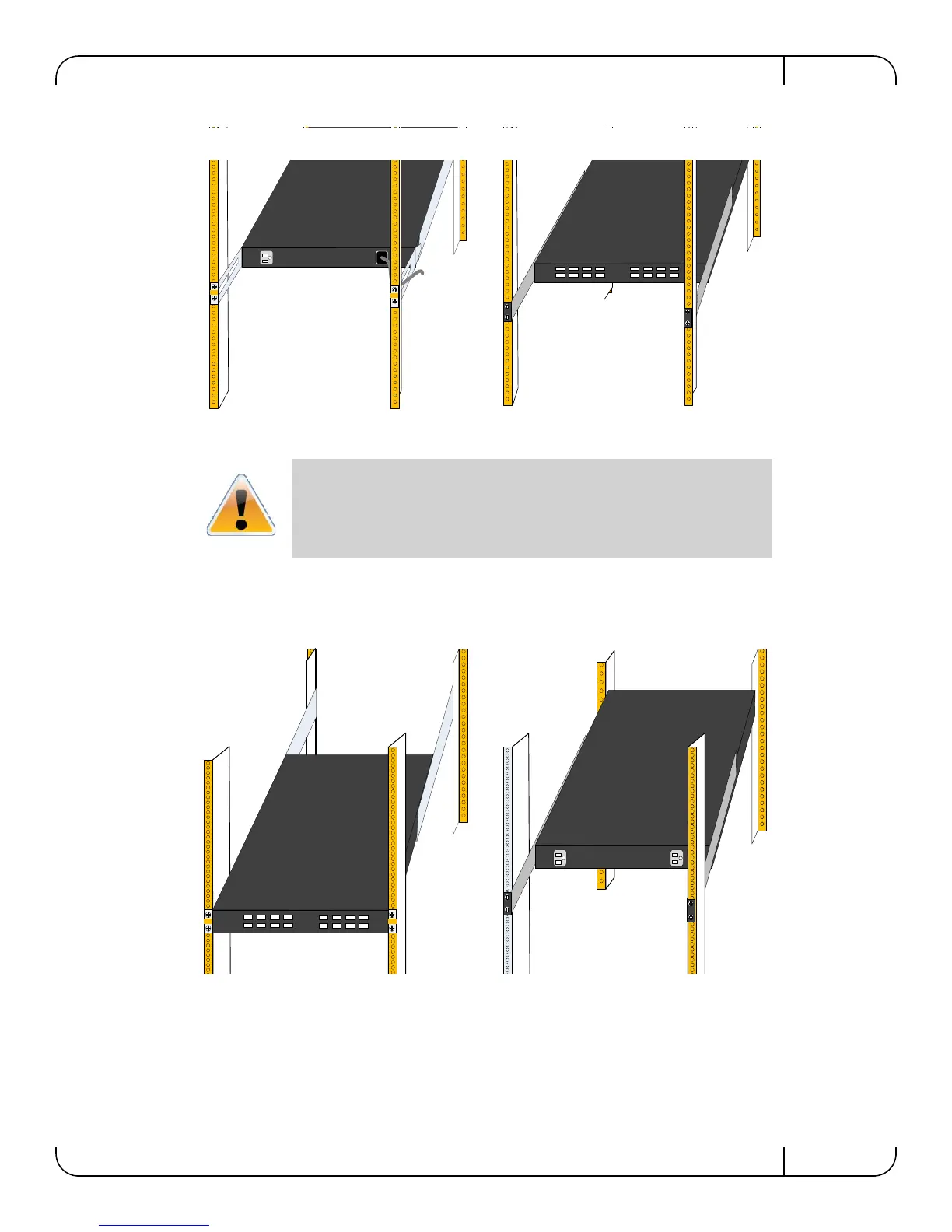

Figure 18: For Short Switches Which Side of the Rack Do You Want the Connectors ?
3. Screw the brackets onto the switch. Use the flat head screws to connect the bracket. There are
two options for mounting the bracket. One option will place the switch even with the vertical
support of the rack and the second option will recess the switch further into the rack. If you
.
.
The figure above shows the power side next to the door and the connector side away from the
door. This configuration has more room for the cables and a larger bending radius.
The figure below shows the connector side next to the door and the power side away from the
door. This configuration may be necessary to conform to your rack configuration.
This configuration is not supported for standard length switches (24.71” or
627.6mm deep).
.
.
