Rev 3.4
Mellanox Technologies
70

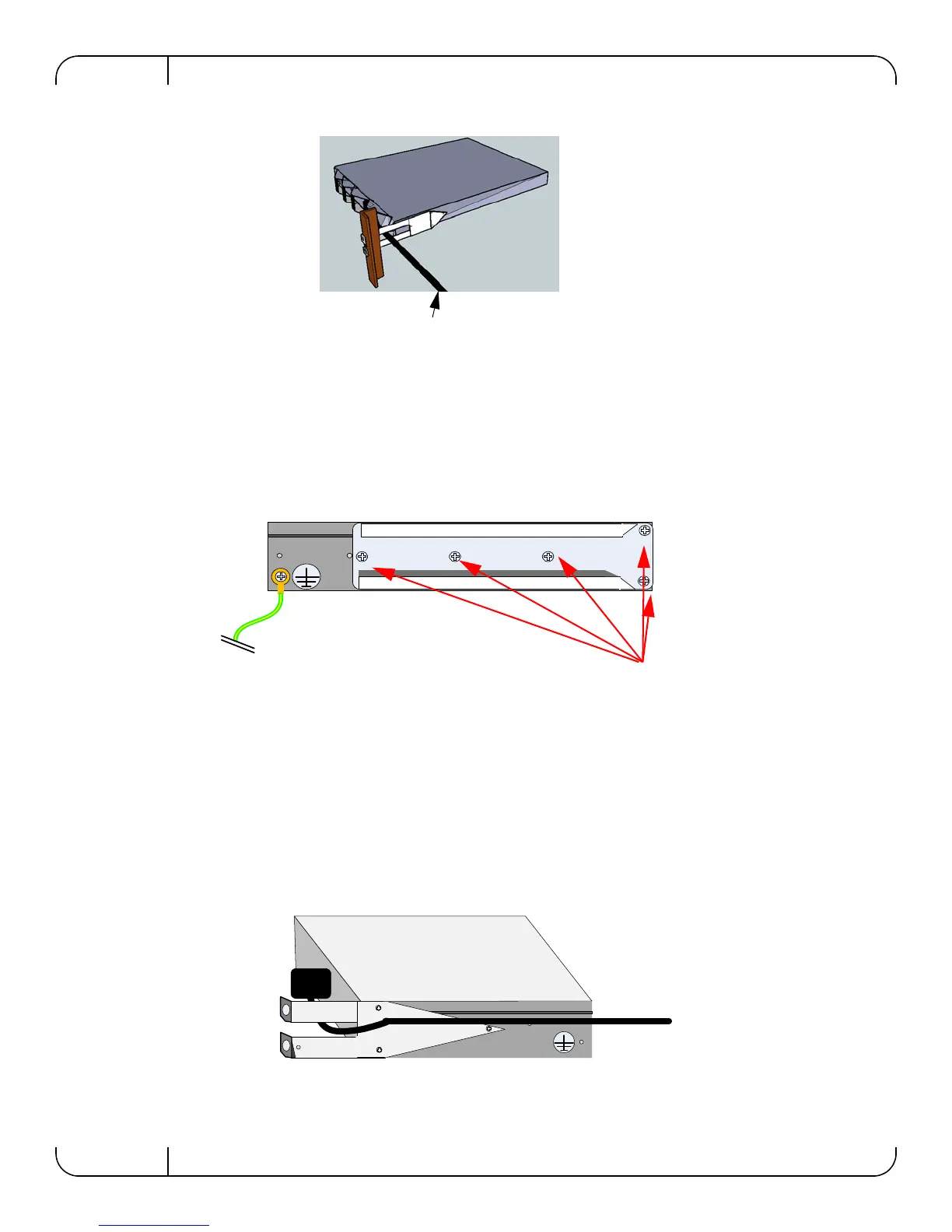

Figure 48: Making Room for the Power Cord
Note: The side of the switch with these brackets will be the side that is very close to the vertical rack
support.
1. Screw the rails onto the switch. Use 5 flat head screws to connect each rail to the switch.
Figure 49: Screwing on the Rail
2. Clip 4 more caged nuts into the holes in the rack you will be using to connect the brackets.
Check that both sides of the switch, power side and connector side, are at the same level in the
rack.
3. Place the four bolts for the caged nuts within reach.
4. Slide the switch into the rack and catch the rail slides into the rails.
Note: Before putting the switch in place guide the power cords through the slots in the brackets.
Figure 50: Power Cord Through the Bracket
