Menzi Muck A91 - 7.7 Hydraulic Auxiliary Connections

Page 138 www.menzimuck.com
Working with the machine

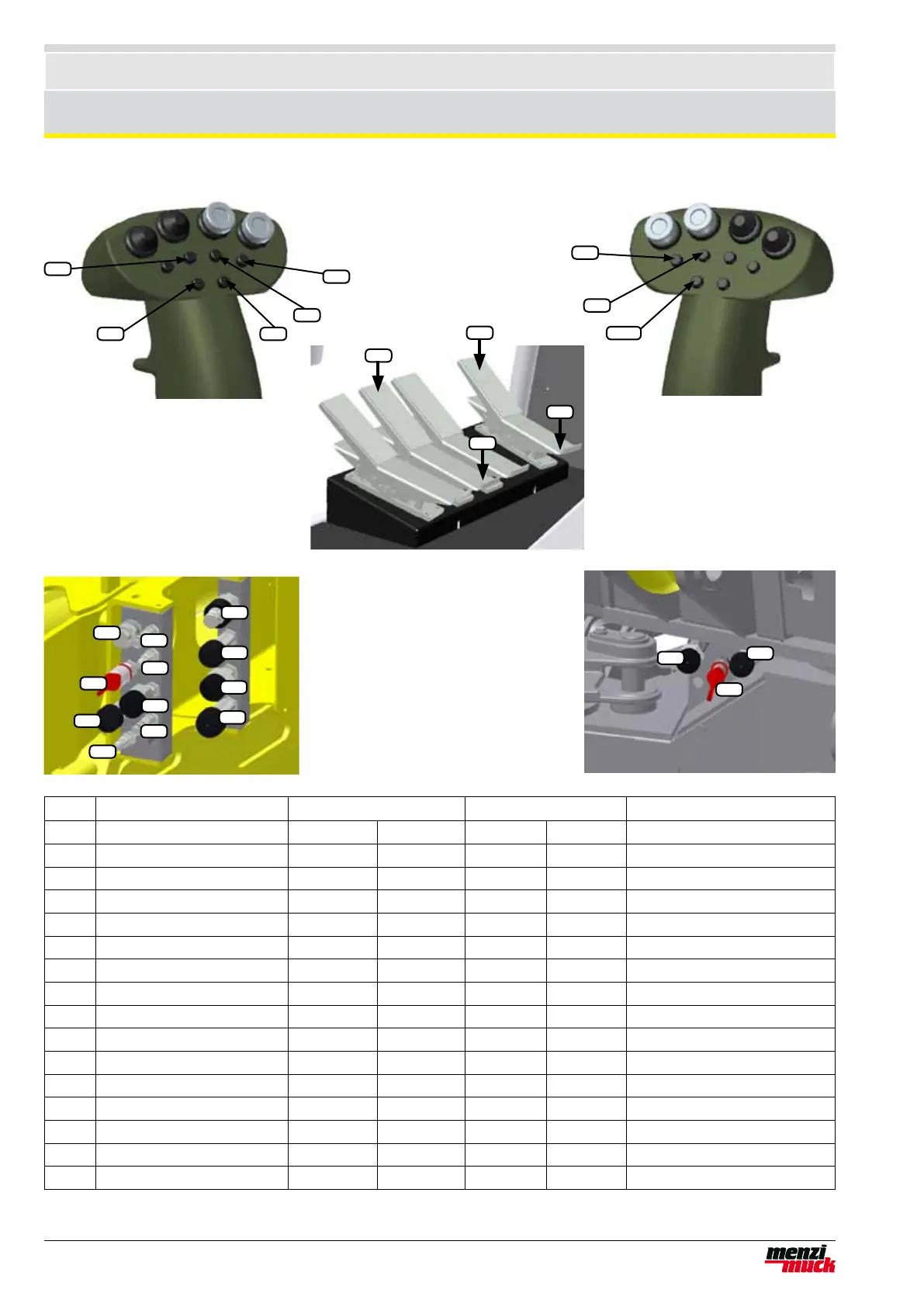

7.7 Operating the hydraulic auxiliary connections
1
2
5
7
3
4
6
8
9
10
11
12
Pos. Denomination Flow rate Pressure Type of connection
l/min US-gall/min bar psi
1 Electric connection * - - Quick connect, female
2 Leak oil connection arm - 0.5 - 2 7.2 - 29 Quick connect, female 1/2"
3 Quick changer connection - 30 435 Quick connect, female Flat-Face 1/4"
4 Quick changer connection - 30 435 Quick connect, male Flat-Face 1/4"
5 Auxiliary connection 80 21.13 280 4061 Quick connect, male Roflex 1/2"
6 Auxiliary connection 80 21.13 280 4061 Quick connect, female Roflex 1/2"
7 Auxiliary connection 40 10.57 280 4061 Quick connect, male Flat-Face 1/4"
8 Auxiliary connection 40 10.57 280 4061 Quick connect, female Flat-Face 1/4"
9 Hammer return line - 2-10 29 - 145 Quick connect, male MD-019-2 1"
10 Auxiliary connection 160 42.28 280 4061 Quick connect, male Roflex 1/2"
11 Auxiliary connection 160 42.28 280 4061 Quick connect, female Roflex 1/2"
12 Powerline 170 44.91 350 5076 Quick connect, male Roflex 3/4"
13 Retract rope of winch 100 26.42 280 4061 Quick connect, male Roflex 1/2"
14 Pullout rope of winch 100 26.42 280 4061 Quick connect, female Roflex 1/2"
15 Leak oil connection winch - 0.5-2 7.2 - 29 Quick connect, male 1/2"
* operation depends on accessories
The connections vary for special equipements (forest, etc.).
Left
12
14 13
6
5
Right
3/4
8
7
13
14
10
11
13
14
15
