Menzi Muck A91 - 3. Technical Data; 3.1 Machine Dimensions

Page 20 www.menzimuck.com
Technical Data
3. Technical Data

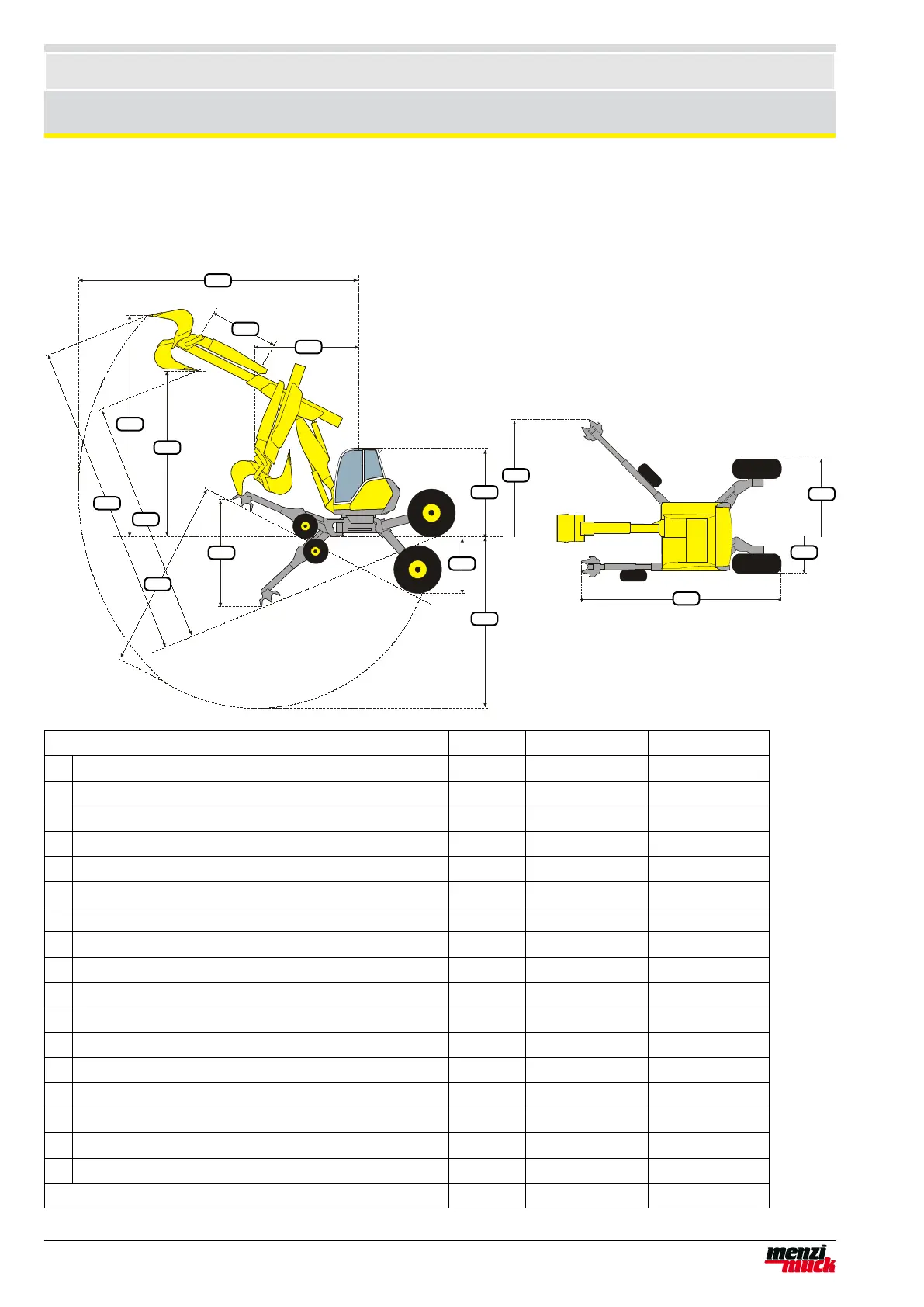

3.1 Dimensions
3.1.1 A91 Mobile
Menzi Muck A91 Mobil T2 T1.8
A
Max. Excavation depth (with adjusted chassis) mm / inch 5960 / 19'7" 6210 / 20'4"
B
Max. Excavation depth (chassis horizontally) mm / inch 5430 / 17'9" 5670 / 18'7"
C
Max. Excavation height (with adjusted chassis) mm / inch 9510 / 31'2" 9650 / 31'8"
D
Max. Excavation height (chassis horizontally) mm / inch 6870 / 22'6" 6910 / 22'8"
E
Max. Discharge height (with adjusted chassis) mm / inch 7030 / 23' 7160 / 23'5"
F
Max. Discharge height (chassis horizontally) mm / inch 4830 / 15'10" 4860 / 15'11"
G
Max. Jib Range mm / inch 8570 / 28'1" 8790 / 28'10"
H
Smallest svivelling radius mm / inch 3000 / 9'10" 2980 / 9'9"
I
Dipper length mm / inch 1960 / 6'5" 1800 / 5'10"
J
Positioning range stabilizers mm / inch 3110 / 10'2" 3110 / 10'2"
K
Positioning range hub drive mm / inch 1650 / 5'5" 1650 / 5'5"
L
Transport height mm / inch 2570 / 8'5" 2570 / 8'5"
a
Minimum width hub drive (transport width) mm / inch 2190 / 7'2" 2190 / 7'2"
b
Max. positioning width hub drive mm / inch 4490 / 14'9" 4490 / 14'9"
c
Max. positioning width stabilizers mm / inch 6585 / 21'8" 6585 / 21'8"
d
Chassis length mm / inch 5660 / 18'6" 5660 / 18'6"
Measurements depend on type of tyre and accessories.
c
d
a
b
L
H
G
I
F
C
K
B
J
E
A
D
