Menzi Muck A91 - Joystick Functions

Operation Manual Menzi Muck A91 Page 143
Working with the machine
7.8.4 Woody 50 harvester head
11
14
2
2
13
8
7
10
10
5
6
5
6
Right
7
5
8
6
14
13
12
Left
3
1
4
2
9
10
11

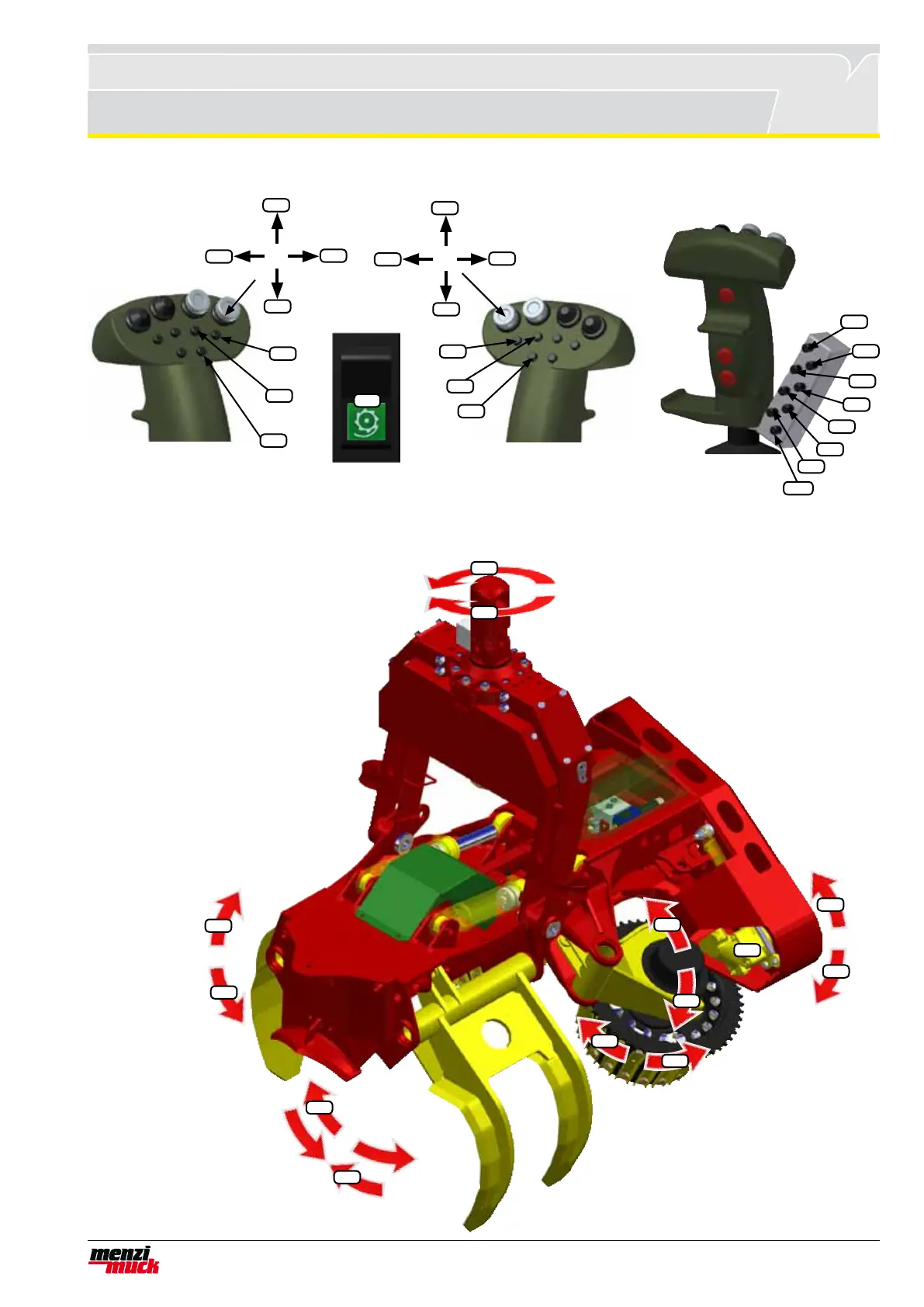

Joystick functions
1. Feed slow
2. Roller open / closed
3. Grappler - open
4. Grappler - close
5. Feed - forward
6. Feed - backward
7. Turning rotator - anticlockwise
8. Turning rotator - clockwise
9. Automatic felling position
10. Feed unit up / down
11. Head - prop up
12. Automatic - on/off
13. Saw
14. Fix head
15. 1. gage Powerline
2. gage Forestry command
16. 11 +14) Floating position
15
E8
L7
L6
L5
L4
L3
L2
L1
Auxiliary keypad
L1) Length 1
L2) Length 2
L3) Length 3
L4) Length 4
L5) Length 5
L6) Length 6
L7) Length 7
E8) Individual branch collection
