Transport, packaging and storage
Cab
Pos. Part Weight (kg/lbf)
1 Cab 600 / 1323
2 Headlight arrangement 1 90 / 198
3 Headlight arrangement 2 20 / 44
Center part
Pos. Part Weight (kg/lbf)
1 Center part cpl. without hydraulic and
diesel oil
2400 / 5291
2 Center part steel structure 900 / 1984
3 Slewing ring and swing gear incl.
swing engine
200 / 441
4 Diesel engine cpl. with distribution
gear and hydraulic pumps incl. Po-
werline pumps
810 / 1786
5 Cooler cpl. incl. ventilator 120 / 265
6 Hydraulic oil tank 90 / 198
7 Fearing cpl. 90 / 198
Hydr. oil depending on level 200 / 441
1
7
2
6
4
3
5
2
3
1

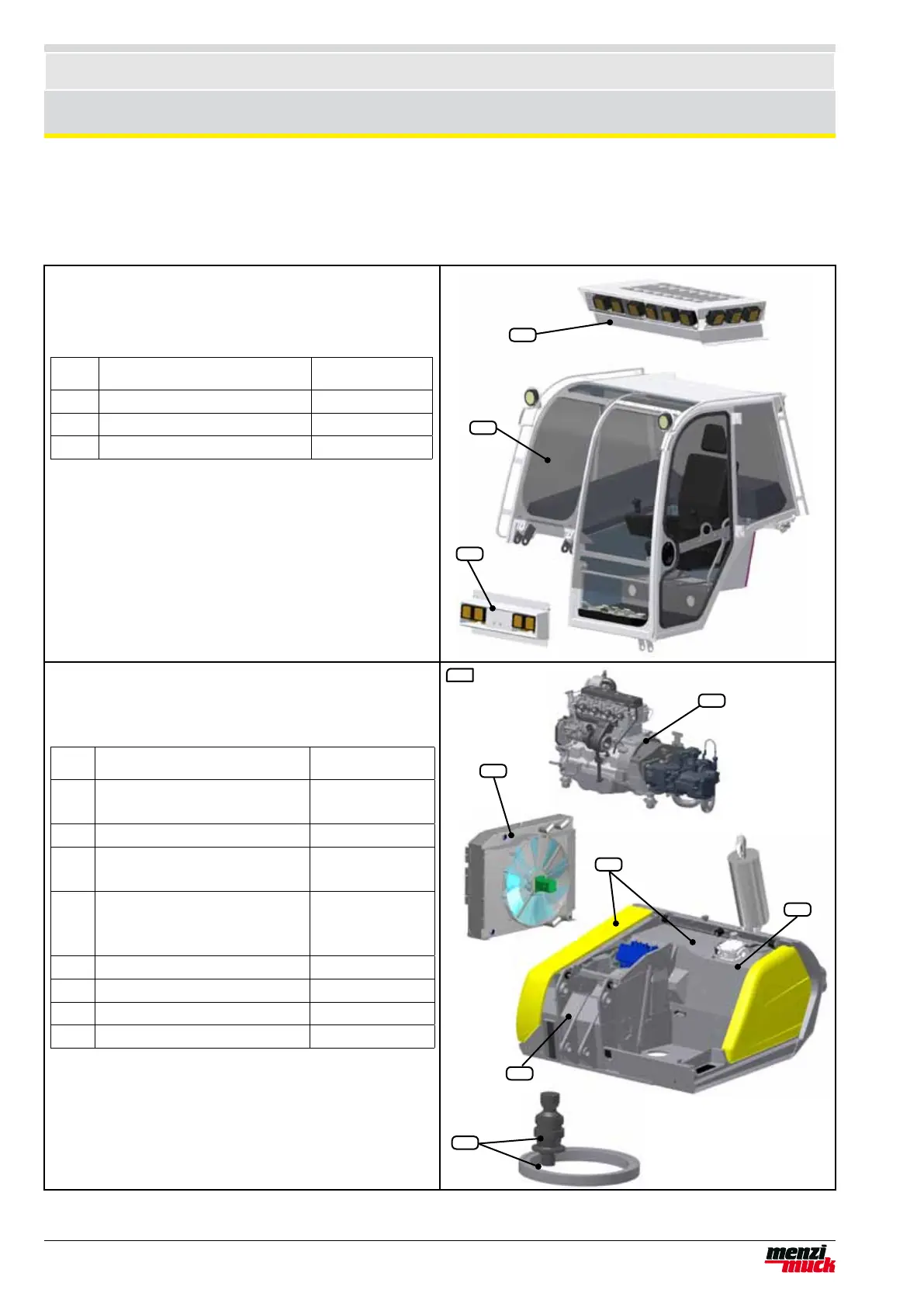

5.3.3 Component mass
The machine can be disassembled if the available lifting gear and lifting tackle is not of sufcient load-bearing
strength to lift the machine as a complete unit. The weights of the individual components are listed below.
