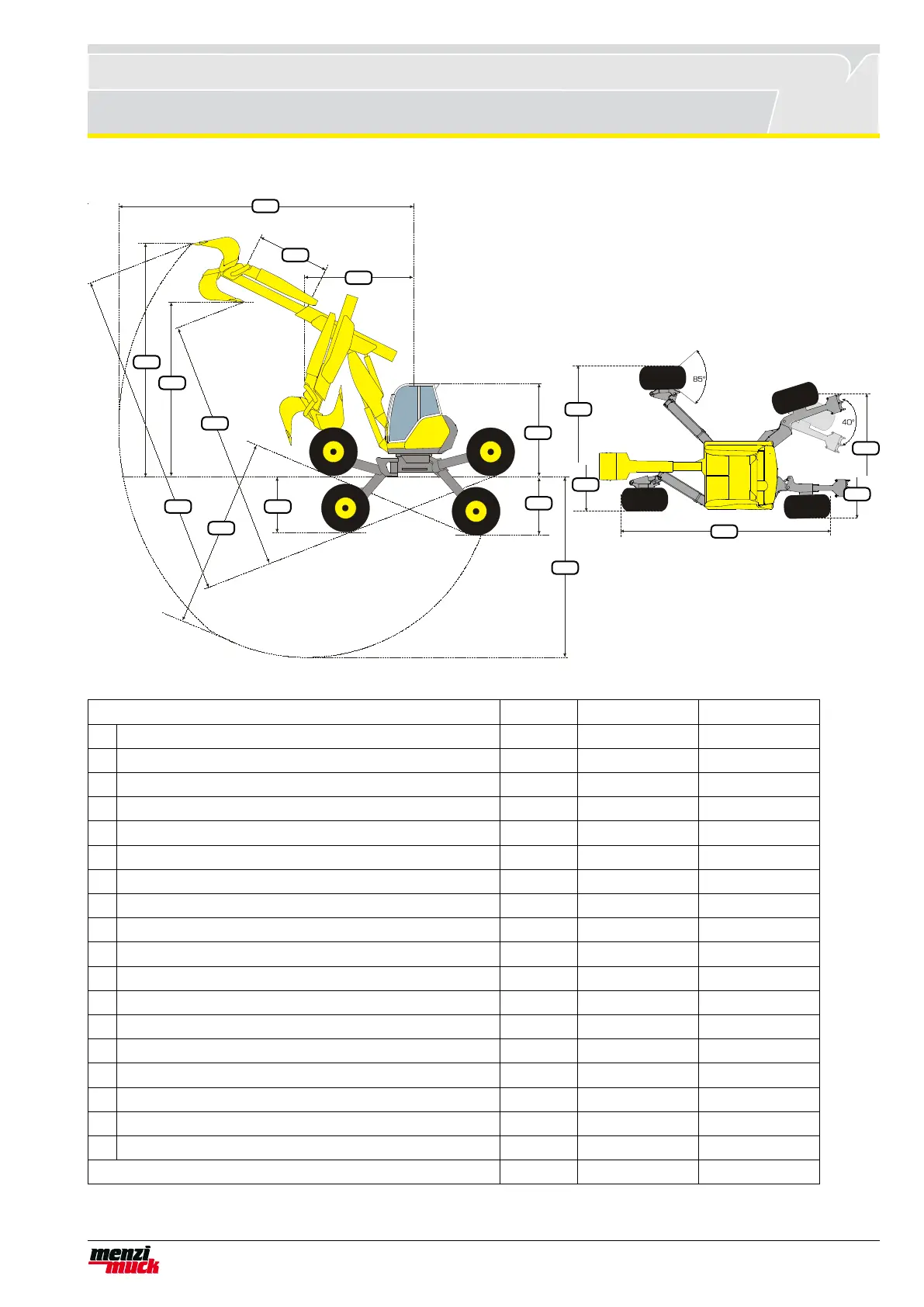

Technical Data
Menzi Muck A91 4x4 Sensor T2 T1.8
A
Max. Excavation depth (with chassis adjustment) mm 5680 / 18'8" 5920 / 19'5"
B
Max. Excavation depth (chassis horizontally) mm 5420 / 17'9" 5670 / 18'7"
C
Max. Excavation height (with chassis adjustment) mm 9100 / 29'1" 9300 / 30'6"
D
Max. Excavation height (chassis horizontally) mm 6620 / 21'9" 6760 / 22'2"
E
Max. Discharge height (with chassis adjustment) mm 6900 / 22'7" 7040 / 23'1"
F
Max. Discharge height (chassis horizontally) mm 4830 / 15'10" 4860 / 15'11"
G
Max. Jib Range mm 8570 / 28'1" 8790 / 28'10"
H
Smallest svivelling radius mm 3000 / 9'10" 2980 / 9'9"
I
Dipper length mm 1960 / 6'5" 1800 / 5'10"
J
Positioning range front wheels mm 1450 / 4'9" 1450 / 4'9"
K
Positioning range hub drive mm 1650 / 5'5" 1650 / 5'5"
L
Transport height mm 2570 / 8'5" 2570 / 8'5"
a
Minimum width hub drive (transport width) mm 2400 / 7'10" 2400 / 7'10"
b
Max. positioning width hub drive mm 4750 / 15'7" 4750 / 15'7"
c
Max. positioning width front wheels mm 6150 / 20'1" 6150 / 20'1"
d
Chassis length mm 5890 / 19'7" 5890 / 19'7"
e
Minimum width front wheels mm 2380 / 7'9" 2380 / 7'9"
Measurements depend on type of tyre and accessories.
c
e
d
a
b
K
L
b
J
A
E
H
I
G
F
C
D
3.1.4 A91 4x4 Sensor
