Technical Data

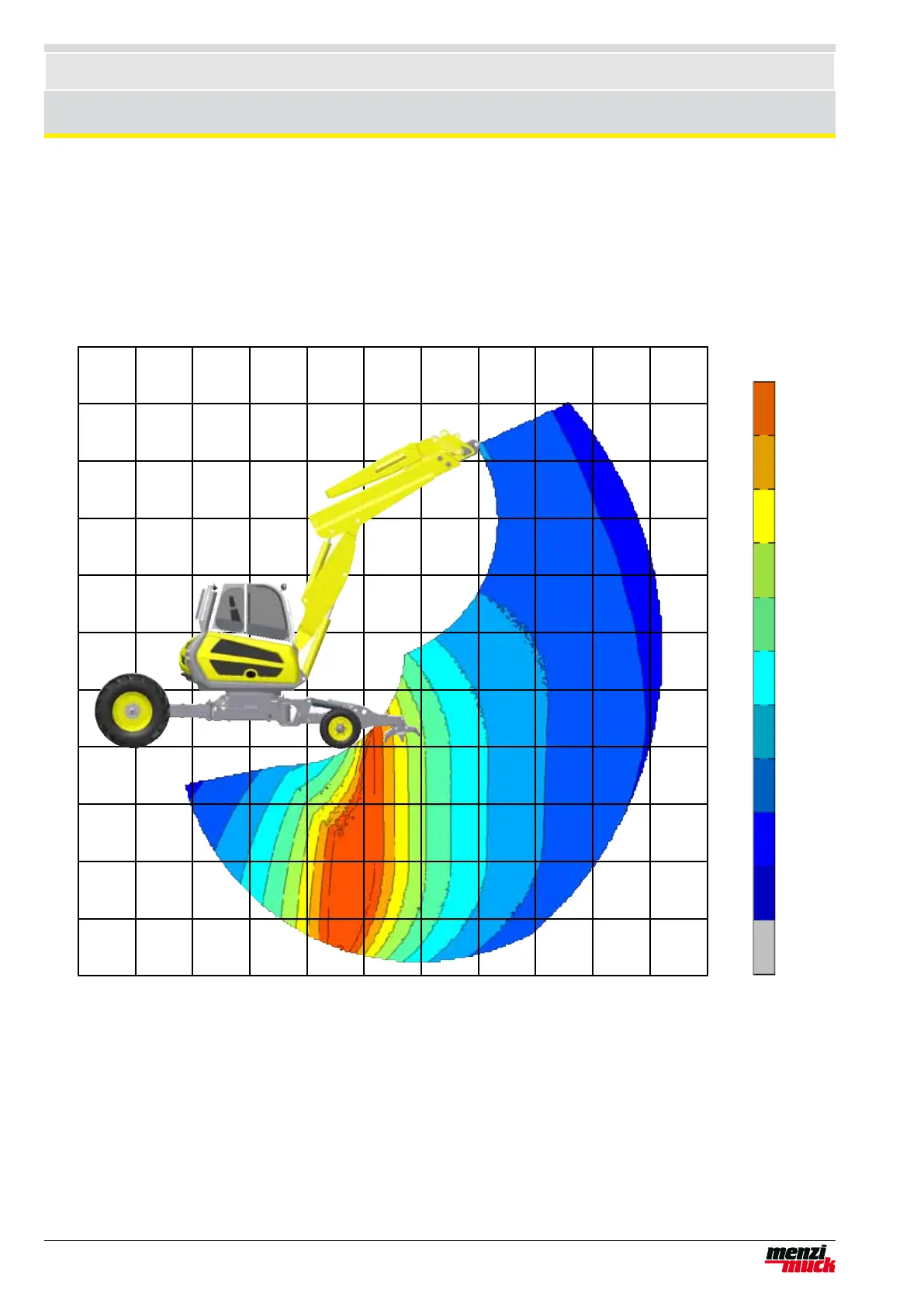

3.8.1 Lifting force diagram A91 T1.8
The stresses in the diagram are maximum values which exceed 75% of the tip load. These values may not be ex-
ceeded when using lifting gear (crane operation).
Stoppers, auxiliary lifting devices and shovels must be subtracted from the rated load in order to determine the net
lifting power .
Deviations of +/- 10% are possible.
7
6
5
4
3
2
1
0
-1
-2
-3
-3 -2 -1 0 1 2 3 4 5 6 7 8
kN
100
90
80
70
60
50
40
30
20
10
0
-10
20kN
30kN
40kN
50kN
60kN
