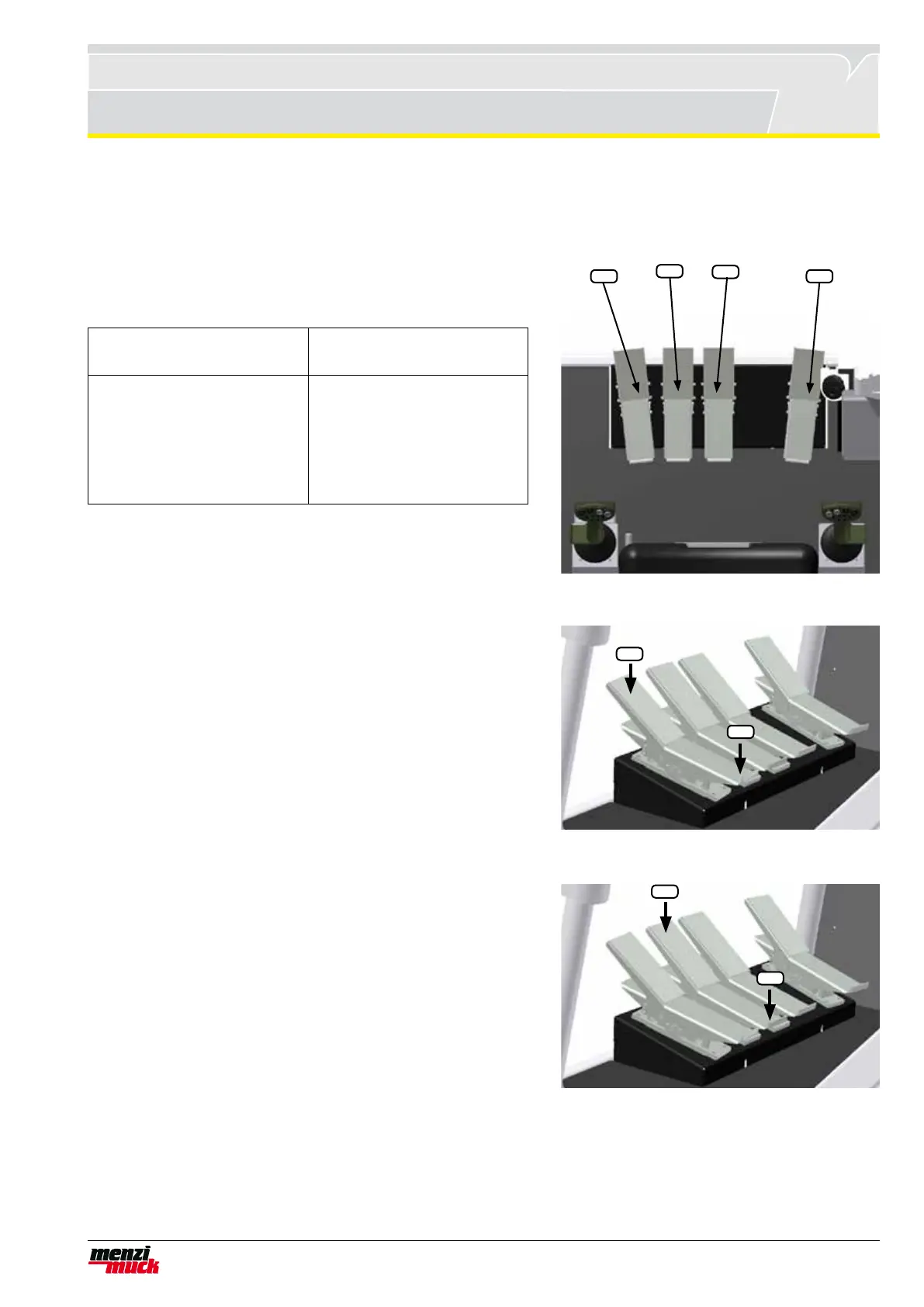

6.5 Pedals
6.5.1 Pedal assignment
The "Menzi Muck" pedal assignment is installed as standard. Howe-
ver, the "Special" pedal assignment can also be installed.
1
2
3
4
6.5.2 Pedal telescope "Menzi Muck"
1. Extending telescope
2. Rectracting telescope
1
2
"Menzi Muck"
pedal assignment
"Special"
pedal assignment
1. Telescopic arm
2. Winch *
3. Driving
4. Large hydraulic auxiliary
connection
1. Large hydraulic auxiliary
connection
2. Winch *
3. Driving
4. Telescopic arm
* optional
6.5.3 Pedal winch
1. Retract rope
2. Pull out rope
1
2
