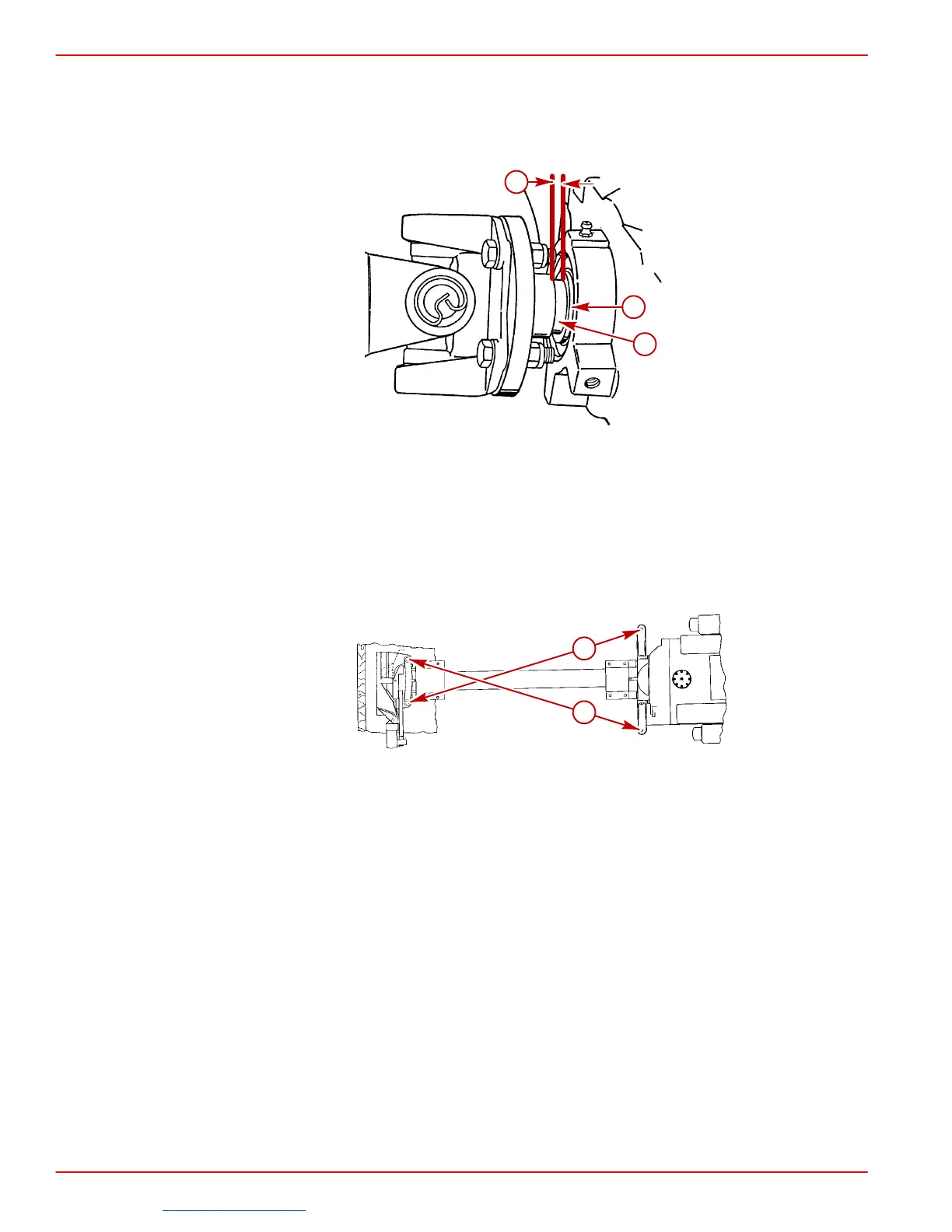

IMPORTANT: Failure to properly position output shaft flange may result in bearing
damage.
6. Relieve hoist tension from engine, then slide engine fore or aft as needed to obtain 1/4
in. (6 mm) clearance between flange shoulder and extension shaft housing bearing.
72591
b
a
c
a-Flange Shoulder
b-Bearing
c-1/4 In. (6 mm)
7. Position engine for correct engine and drive shaft lateral alignment as follows:
a. Measure the length of “a” and “b” to the centers of bolt holes. They MUST BE
EQUAL. If they are not equal, slide the aft and forward ends of the engine equal
amounts in opposite directions to obtain equal lengths for “a” and “b”.
70246
a
b
These Dimensions Must Be Equal
b. Recheck Step 6. If Step 6 is not as specified, adjust and recheck Step 7a. Continue
this process until both Steps 6 and 7a are as specified.
8. After engine has been aligned correctly, fasten front and rear engine mounts to stringers.
Tighten mounting bolts securely.
