ENGINE MOUNT ADJUSTMENT WAS DISTURBED DURING SERVICE
NOTE: A Universal Protractor is recommended for measuring the angles in the following
steps.
IMPORTANT: In the following steps, the protractor readings will be taken off of
vertical and horizontal surfaces; therefore, both the 0 degree and the 90 degree
marks will be used. It should be kept in mind that these are reference marks only and
the assigned numbers should be ignored. It is only necessary to determine the
number of degrees and to which side (left or right) of the reference marks the
indicator needle rests. PROTRACTOR MUST BE VIEWED FROM THE SAME SIDE OF
POWER PACKAGE THROUGHOUT INSTALLATION.

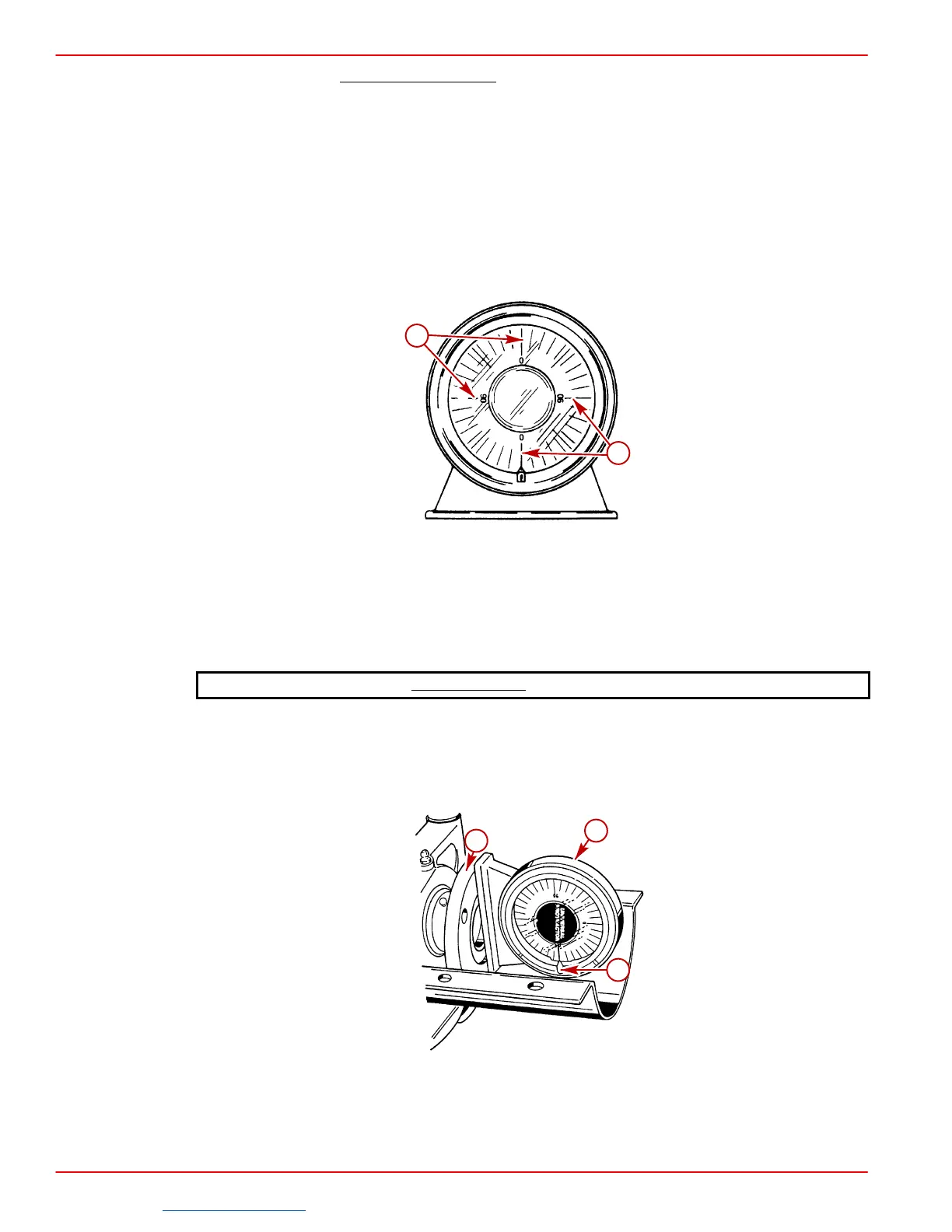

72429
a
a
a-Reference Marks
1. Refer to SECTION 8F “Drive Shaft Models/Propeller Shaft,” and remove drive shaft.
2. Position base of protractor against input shaft flange, as shown. NOTE and RECORD
the number of degrees and to which side of the reference mark the indicator needle has
moved in the following chart.
Reading from Step 1.
degrees to the side of reference mark.
IMPORTANT: Be sure that boat does not move once reading has been taken from
input shaft flange, as this reading establishes a reference point for aligning drive
shaft and engine following. If boat is moved, reference point may be altered and
improper drive shaft and engine alignment may occur. Alignment tool MUST BE in
place during entire alignment procedure if drive unit is not installed.
72592
a
b
c
a-Indicator Shaft Flange
b-Protractor
c-Indicator Needle
NOTE: For ease of installation we recommend the use of a chain leveler in the following
steps.
