CHARGING SYSTEM
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 4C-13
5. If a voltmeter reading of 14.5 volts or above is now obtained, voltage regulator is faulty
and must be replaced. If voltmeter reading is below 14.5 volts, inspect brushes and slip
rings for wear, dirt or damage. If brushes and slip rings are good, alternator is faulty
internally. Disassemble alternator and test components, as outlined under “Alternator
Repair,” following.
72971
d
a
b
c

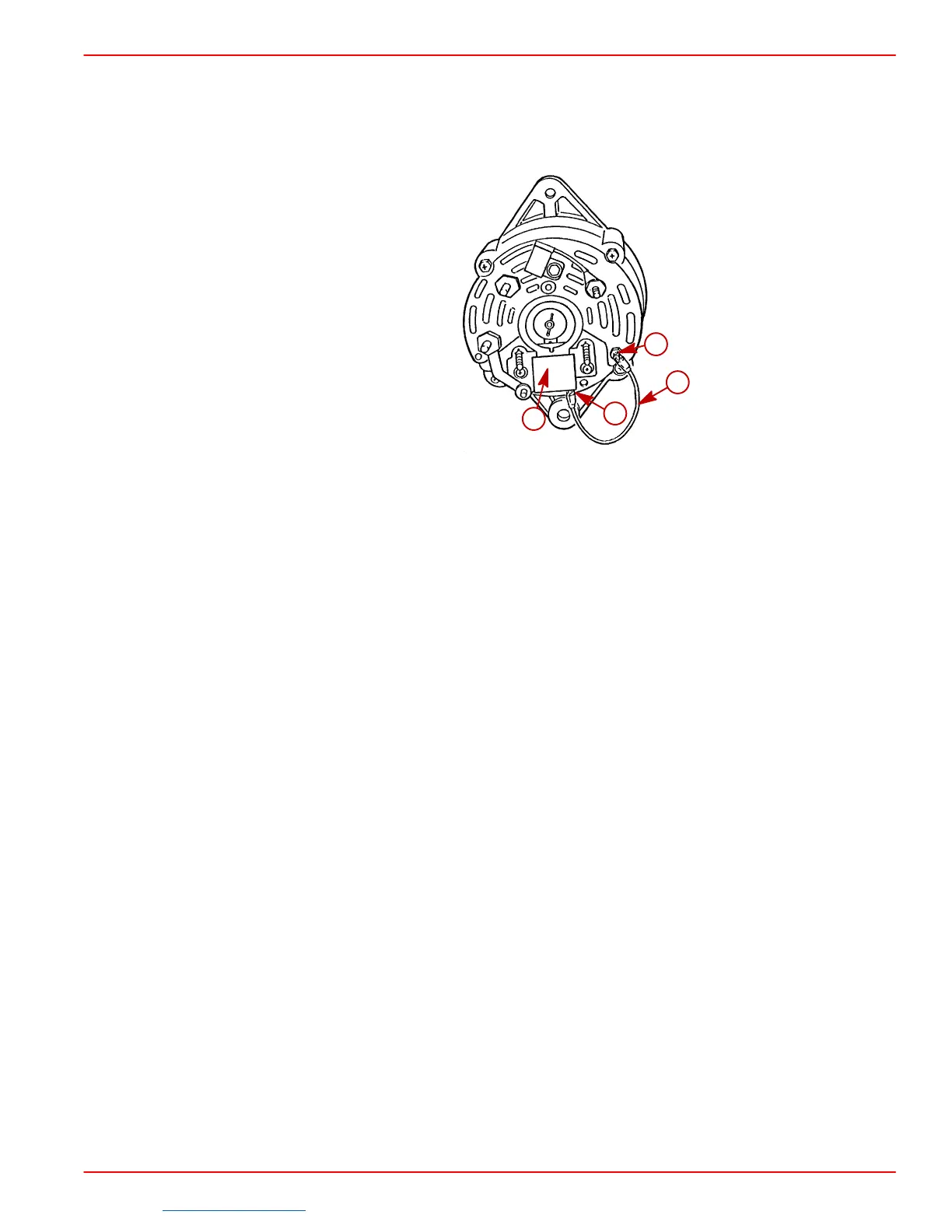

a-Ground
b-Brush / Regulator Assembly
c-Brush Terminal
d-Jumper Wire (Solder Connection Ground)
