INSTRUMENTATION SERVICE MANUAL NUMBER 23
Page 4D-4 90-861326--1 MARCH 1999
NOTE: For different lighting effects, colored sleeves are available through the Quicksilver
Accessories and can be assembled to the bulb.
72968
a

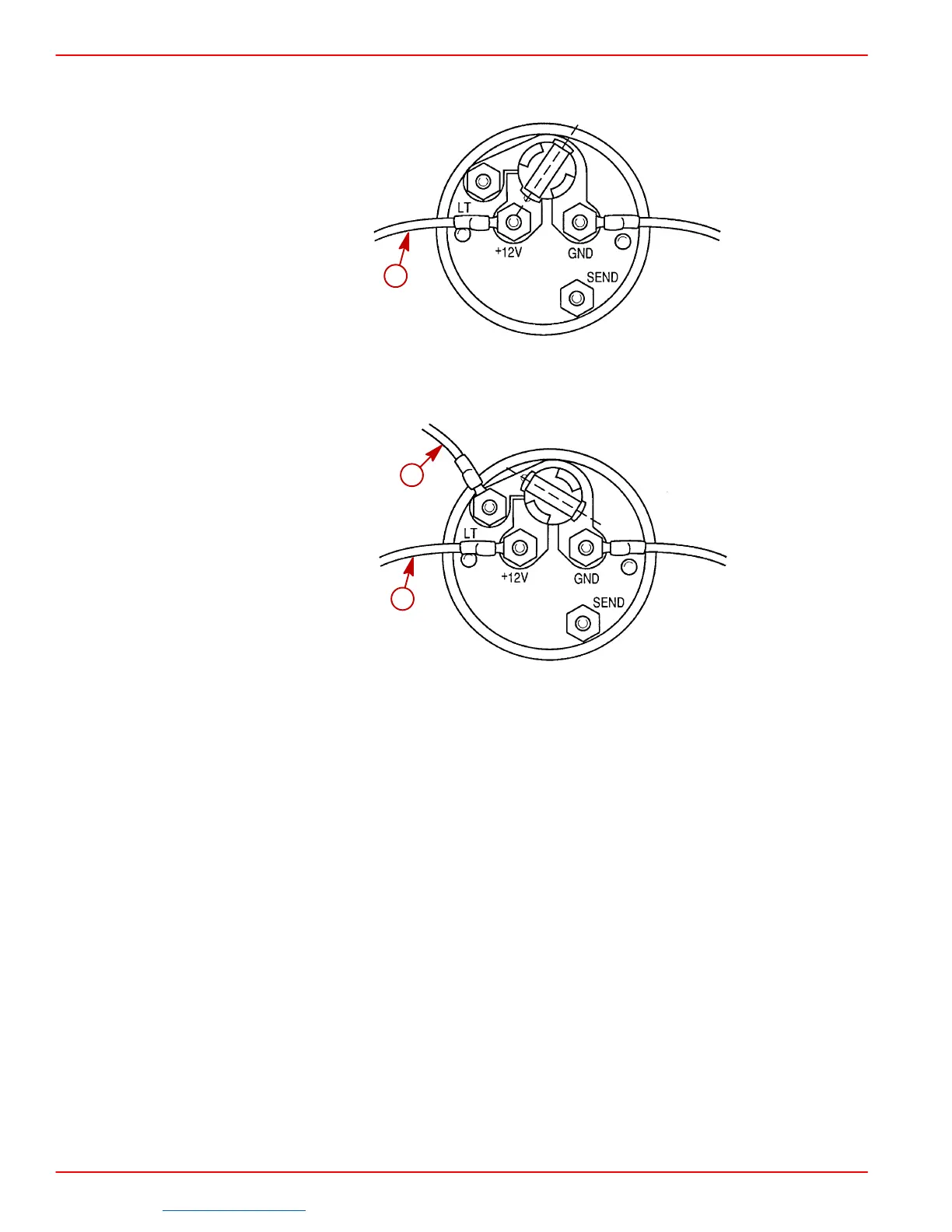

Ignition Switch Lighting Circuit Position
a-Positive (+) 12 Volt Power Supply From Ignition Switch
72969
b
a
Separate Instrumentation Lighting Circuit Position
a-Positive (+) 12 Volt Power Supply From Ignition
b-Positive (+) 12 Volt Power Supply From Separate Instrumentation Lighting
Circuit
