Mercury MerCruiser MCM 502 Mag MPI

HURTH V-DRIVE TRANSMISSION
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 8D-7

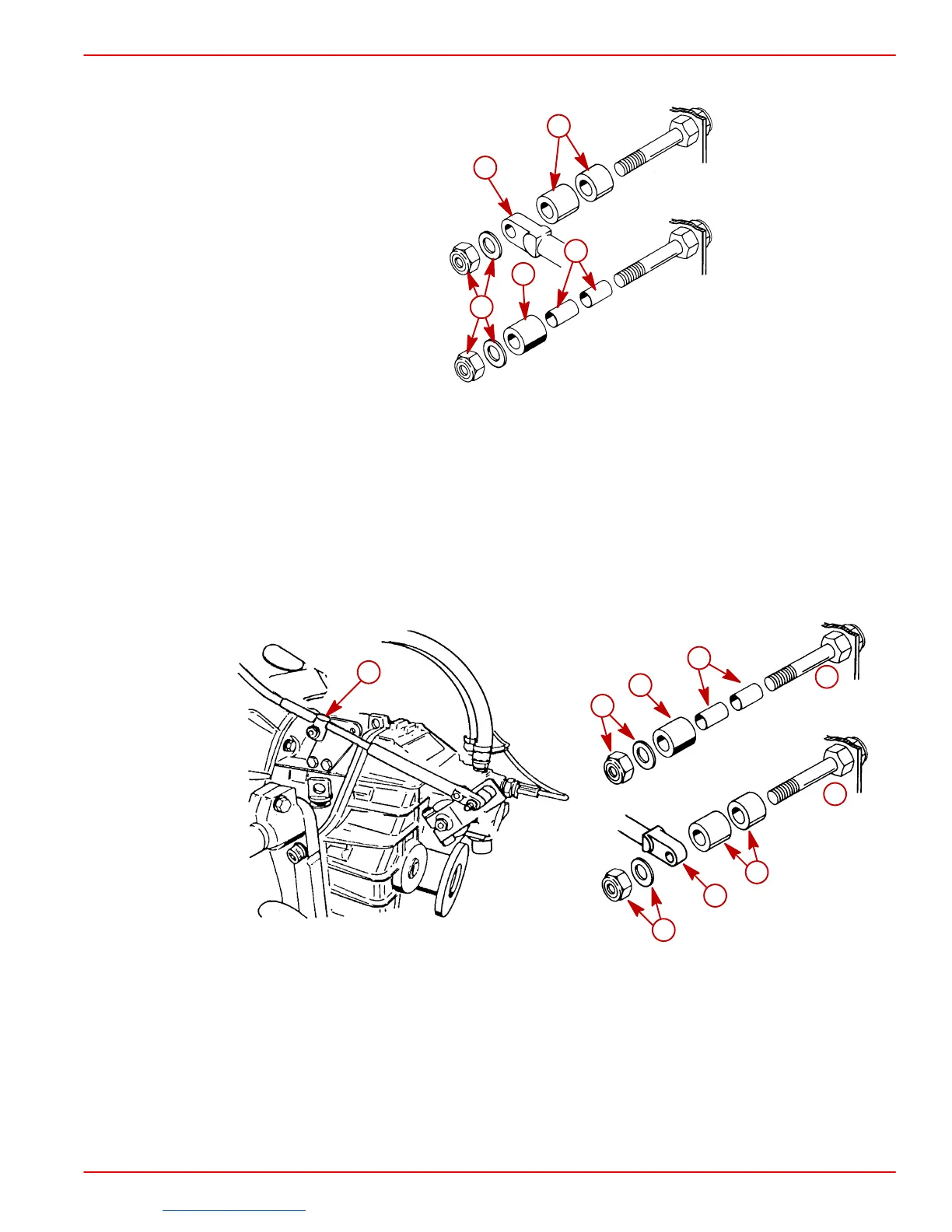

11. Install nut and washer to cable barrel stud. Tighten until they contacts. Then loosen 1/2
turn.
50229
a
b
c
d
c
a-Cable End Guide
b-Locknut and Washer (Tighten Until Bottoms Out, Then Loosen 1/2 Turn)
c-Spacer
d-Bushings
e-Cable Barrel
12. Once shift cable adjustment is correct, secure shift cable(s) with hardware as shown,
referring to appropriate configuration following:
NOTE: To change cable approach direction on single or dual station installations, only the
spacer/bushings have to be switched to the opposite stud. The studs are identical.
72955
71210
e
b
c
d
b
a
f
g
h
Typical Single Cable - Forward Approach
a-Cable End Guide
b-Locknut and Washer (Tighten Until Bottoms Out, Then Loosen 1/2 Turn)
c-Spacer (Fits Over Bushings)
d-Bushing
e-Cable Barrel
f-Spacers (Fits Over Stud)
g-Cable Barrel Stud
h-Cable End Guide Stud
