Cooling System
90-863758060 AUGUST 2006 Page 7A-15

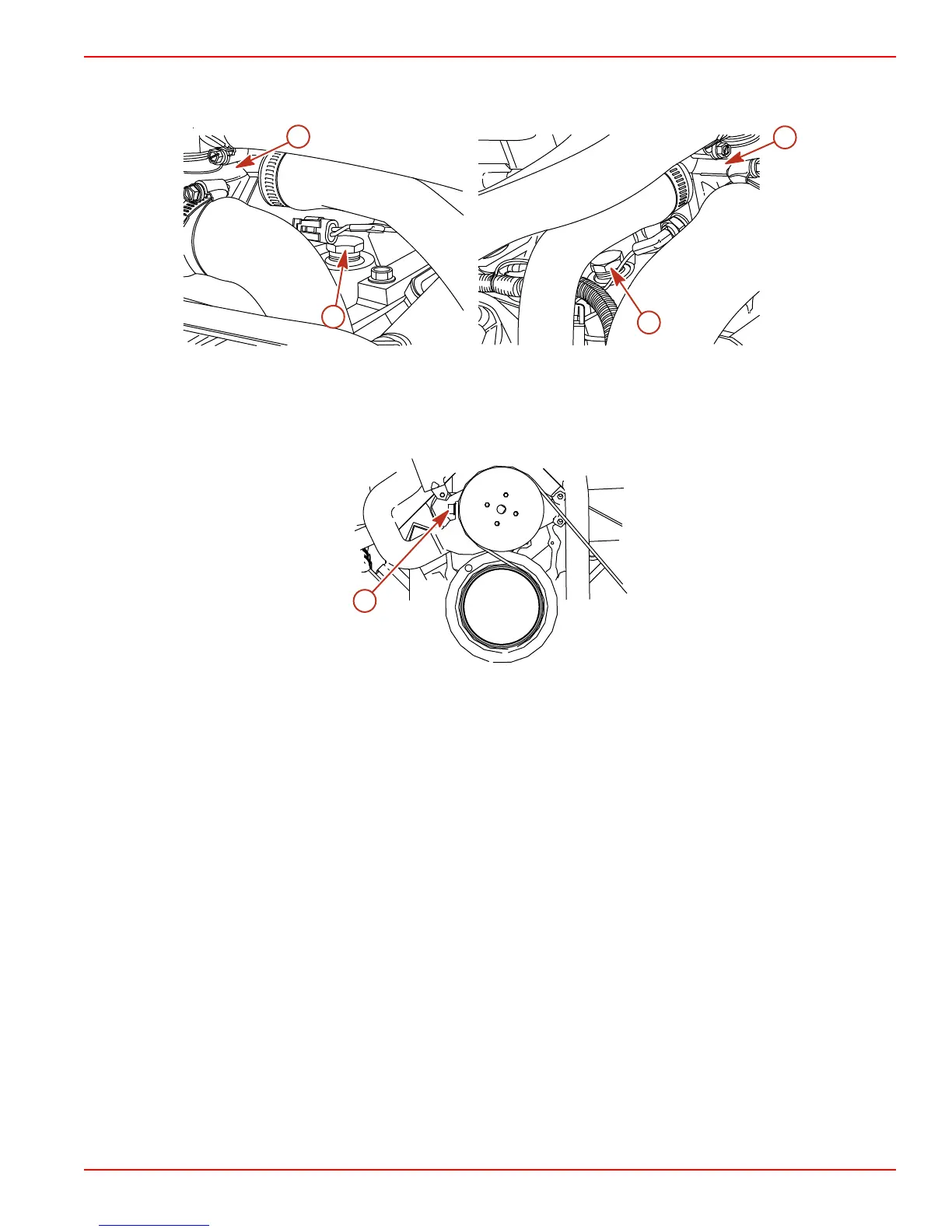

WATER HEATER CONNECTIONS: SCORPION MODELS
NOTE: Some models may be equiped with additional fittings.
a
b
11478
b
a
11479
Port side intake manifold plug Starboard side intake manifold plug
a - Location for hot water supply
connection
b - Thermostat housing
a
7564
Water circulating pump housing
a - Location for return hose connection
