Instrumentation and Controls
Page 9A-10 90-863758060 AUGUST 2006

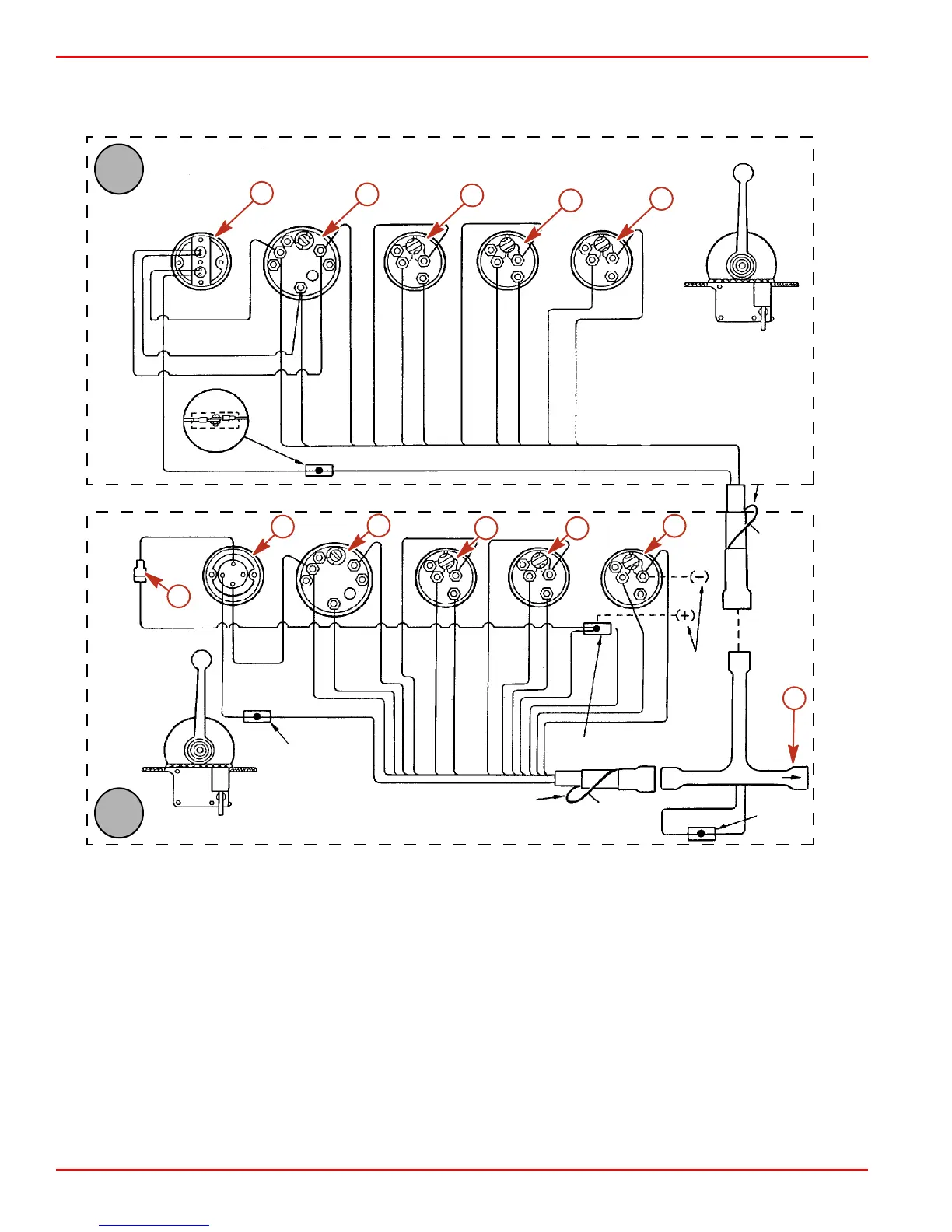

10-Pin Instrument Harness Dual Station
1
2
3
4
5
1
7
2
3
4
5
6
NOTE 4
NOTE 4
NOTE 1
NOTE 1
BRN/WHT
NOTE 3
NOTE 3
NOTE 3
NOTE 3
NOTE 2
A
B
14925
A - Primary Station B - Secondary Station
1 - Start/stop panel 1 - Ignition switch
2 - Tachometer 2 - Tachometer
3 - Oil pressure 3 - Oil pressure
4 - Water temperature 4 - Water temperature
5 - Battery meter 5 - Battery meter
6 - To engine
7 - 20-ampere fuse
