Instrumentation and Controls
Page 9A-4 90-863758060 AUGUST 2006
a
15529

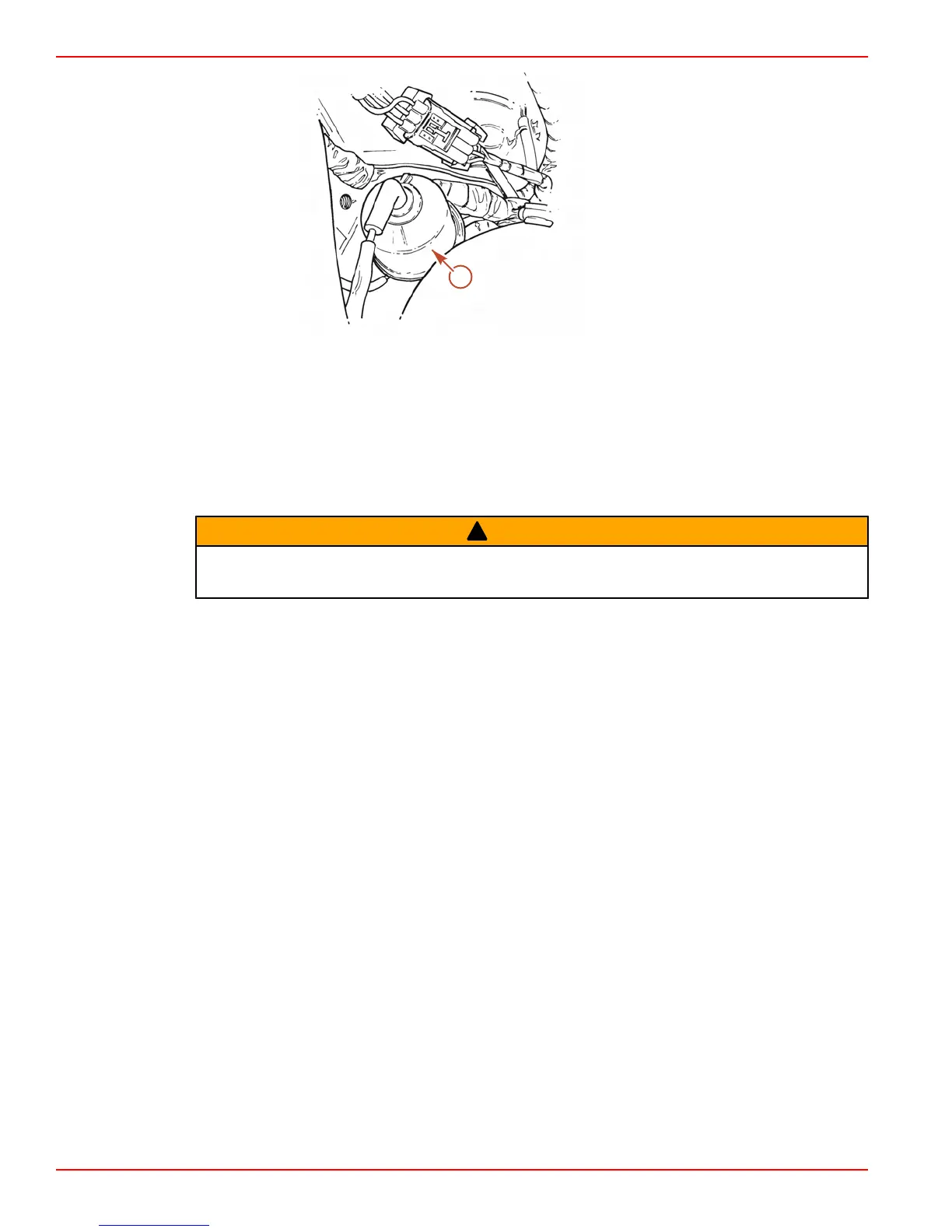

a - Typical oil pressure sender
Audio Warning System
All models are equipped with an audio warning system as standard equipment to alert the
operator of insufficient engine oil pressure, excessive engine temperature, or a low drive
unit lubricant condition. The following items are particularly noteworthy for proper
installation of the system:
!
WARNING
Fire or explosion hazard. The horn is not external ignition-proof, therefore, do not mount
the horn in the engine or fuel tank compartments.
• Select mounting location where alarm is out of the elements, yet can be readily heard.
• Alarm should be within 46 cm (18 in.) of instrumentation to allow connection to switched
side of ignition switch.
• Coat electrical connections with Liquid Neoprene to avoid corrosion.
• Small transparent decals (2) provided should be installed on engine water temperature
gauge and oil pressure gauge.
• Place large decal on the dash within easy view of the operator.
