Mercury MERCRUISER - Cable Attachment Hardware

Instrumentation and Controls
90-863758060 AUGUST 2006 Page 9A-15
Cable Attachment Hardware
INBOARD MODELS
Inboard models can accommodate forward or aft shift cable entry and single or dual cable
attachment. Hardware must be installed as shown.
e
a
b
c
d
f
e
b
g
h
7672

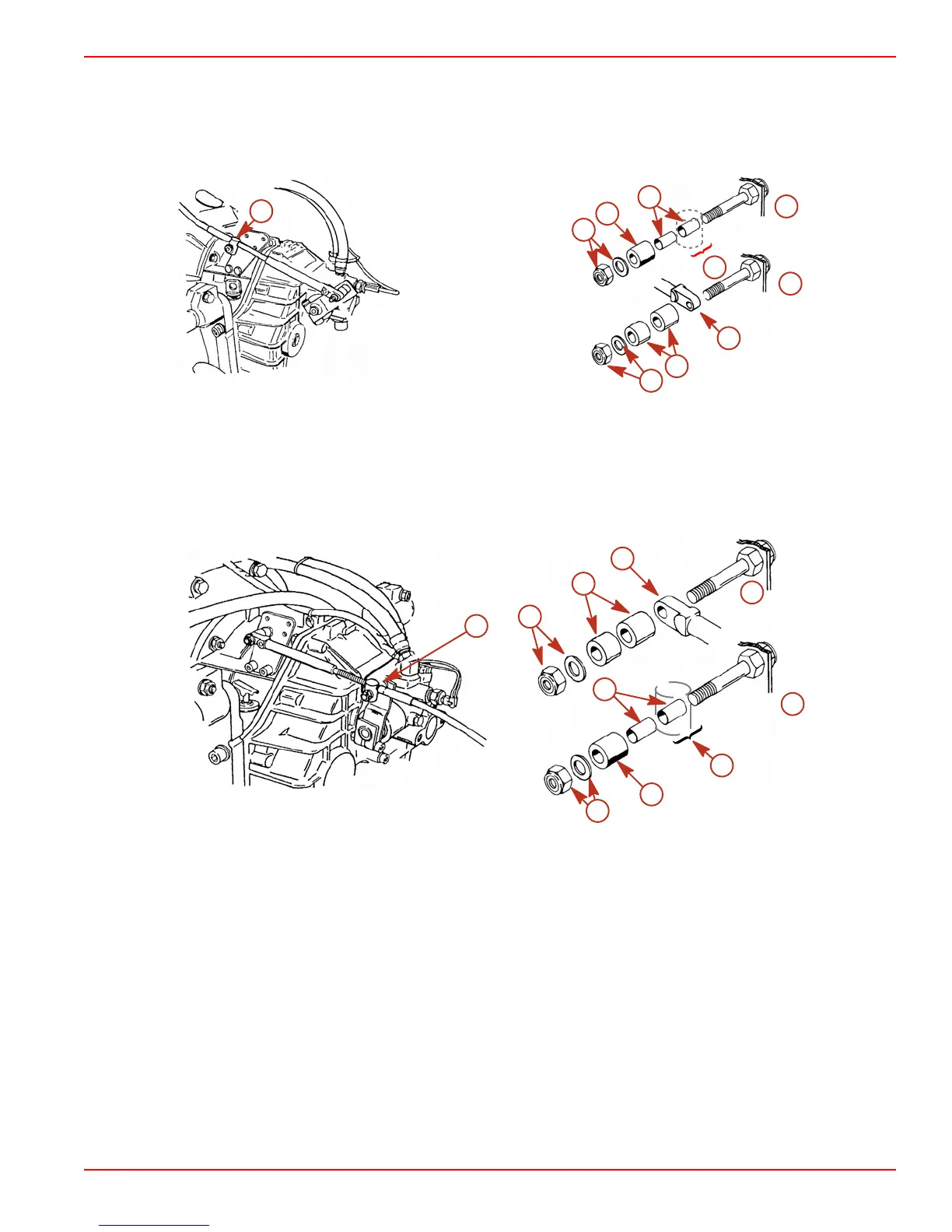

Typical single cable: forward entry
a - Cable end guide
b - Locknut and washer
c - Spacer (fits over bushings)
d - Bushings
e - Cable barrel location
f - Spacer (fits over stud)
g - Cable barrel stud
h - Cable end guide stud
e
e
f
a
b
b
c
d
g
h
7673
Typical single cable: rear entry
a - Cable end guide
b - Locknut and washer
c - Spacer (fits over bushings)
d - Bushings
e - Cable barrel location
f - Spacers (fits over stud)
g - Cable barrel stud
h - Cable end guide stud
